Description
- 1 x USB Connector
- 1 x 3.5mm TRRS Port
- Compact Form Factor
- Accepts 3.5mm Mono, Stereo, or TRRS Plug
- Windows / Android / Mac Compatible

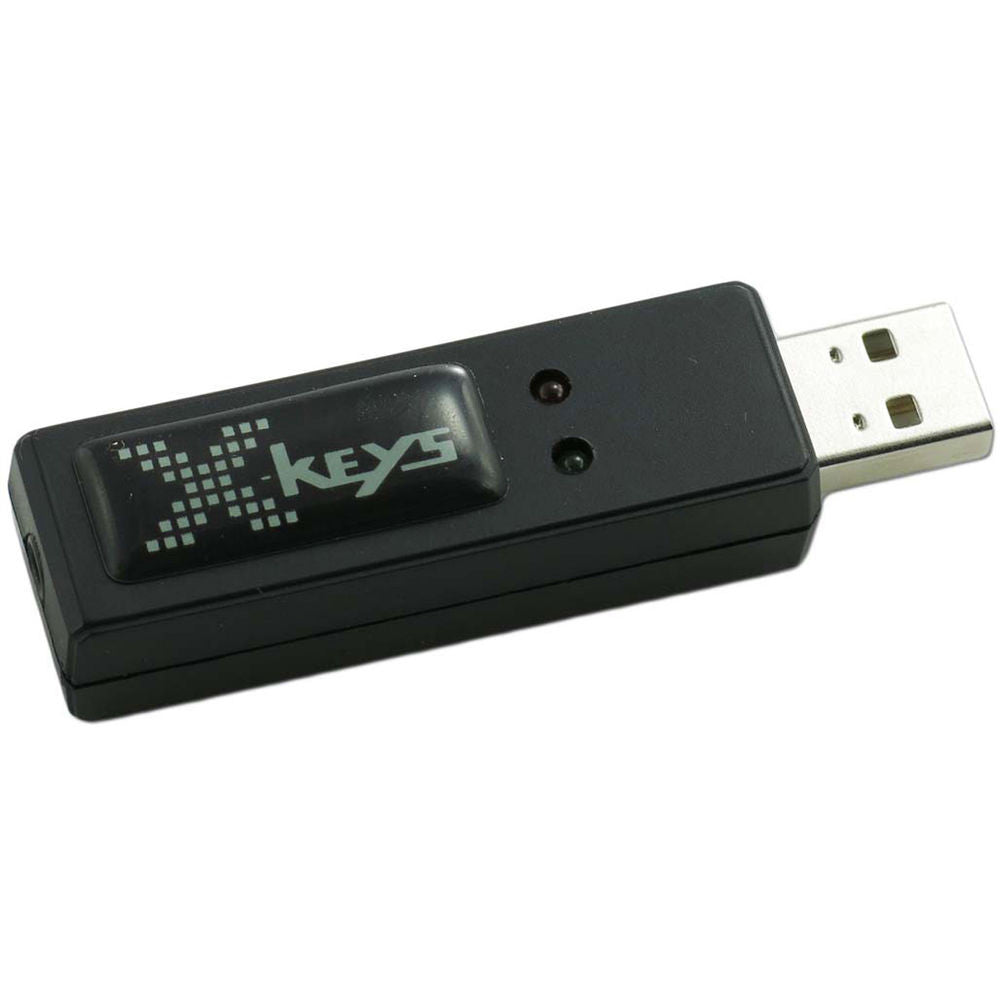

The small, versatile USB Three-Switch Interface from X-keys is capable of supporting up to three wired switches or pedals using an optional adapter (sold separately). The USB interface comes equipped with a single USB connector and a single 3.5 mm jack which supports a variety of USB codecs including HID keyboard, HID mouse, HID game controller, and HID multimedia.
- Accepts up to three switches via 3.5mm TRRS port with optional adapter
- Connects to USBs port like a USB keyboard
- Accepts 3.5mm mono, stereo, or TRRS plugs
- Any contact closure can be converted to a USB HID command
- Choose from our selection of hand or foot operated switches or use your own
UPC: 703273012830
| Operating system | Any OS via USB HID | Programming: Windows XP through 8, Mac OS X 10.4 through 10.10 |
| Programming Software | Windows: MacroWorks 3.1 Android: X-keys Android Mac OS X: ControllerMate |
| Software Development Kits | Windows (C++, C#, VB.NET) Linux (C++) Android (Java) Raw HID (any language/OS) USB Codes Supported: HID keyboard, HID mouse, HID game controller, HID multimedia |
| Ports | 1x 3.5mm TRRS (Tip-Ring-Ring-Sleeve) accepts 3.5mm mono, stereo, or TRRS plug; May be split to accept up to three switches |
| Connector | USB 2.0 standard "A" plug USB 1.1, compatible through 3.0 |
| Wiring Distance | Up to 1,000' (300 m) from switch to port |
| Memory | Memory Capacity: Approximately 1000 keystrokes or commands Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years) |
| Power | Power Source: USB port, nominal voltage = 5 VDC Power Consumption: 21 mA @ 5 VDC |
| Environmental | Temperature Range: -4 to 140°F / -20 to 60°C Environmental Rating: IP 40, typical indoor office environment |
| Certification | FCC class B, CE, RoHS, WEEE compliant |
| Dimensions | 2.8 x 0.75 x 0.5" (71 x 19 x 13 mm) |
| Weight | 0.8 oz (23 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.2 lb |
| Box Dimensions (LxWxH) | 7.323 x 5.433 x 1.732" |

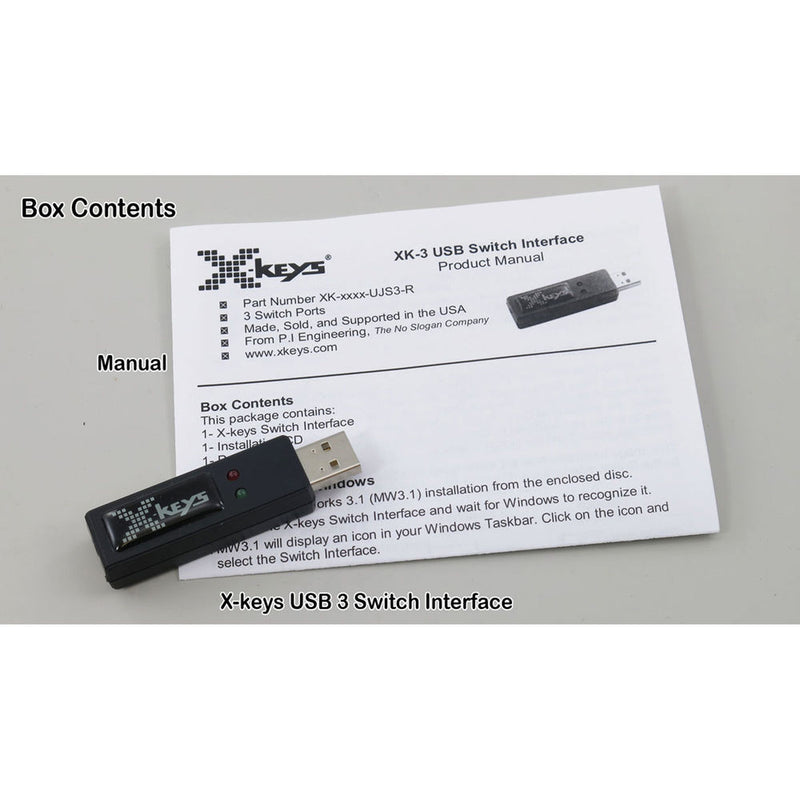

In the Box
X-keys USB Three-Switch Interface
- Limited 1-Year Warranty
