| ₹ 24910.0 includes GST and import duties. | |
| B2B customers can avail ₹ 3798.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
ZILR SDI 12G BNC Cable Kit Overview

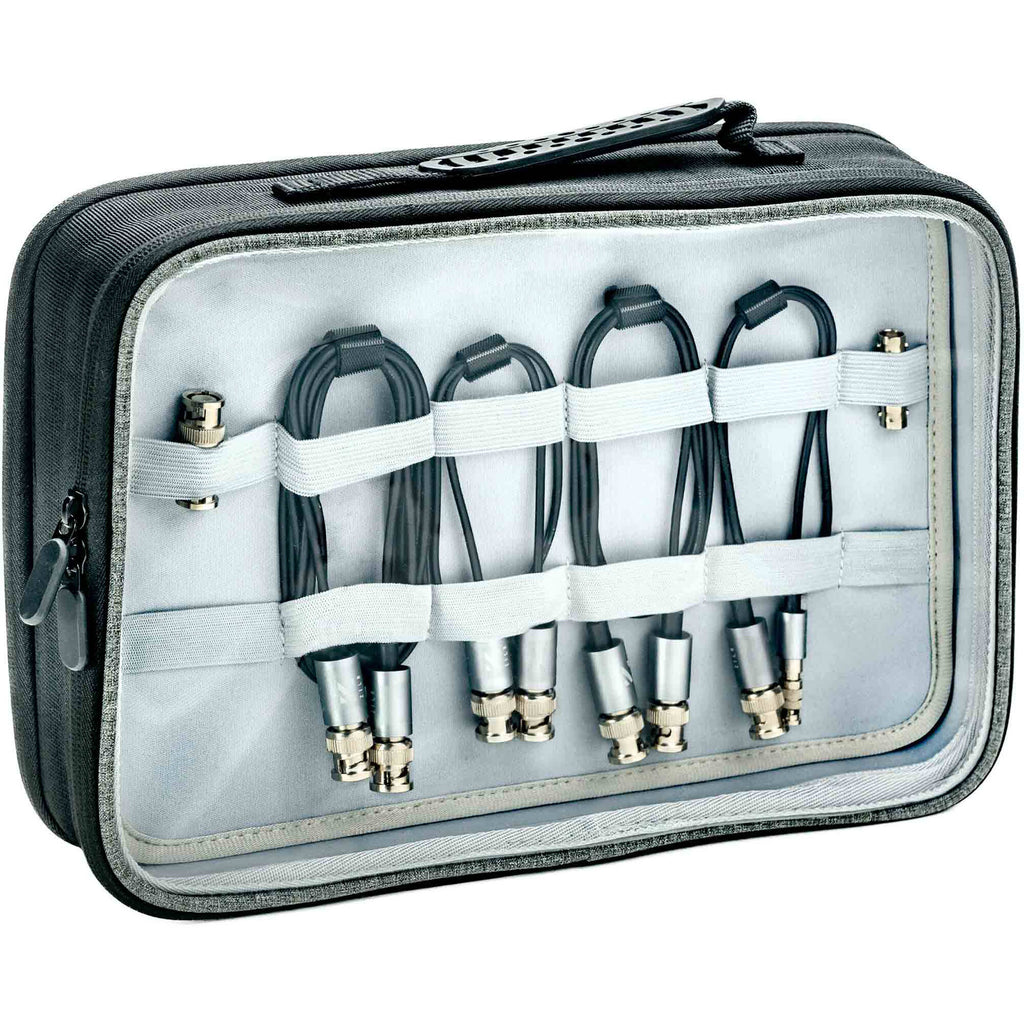

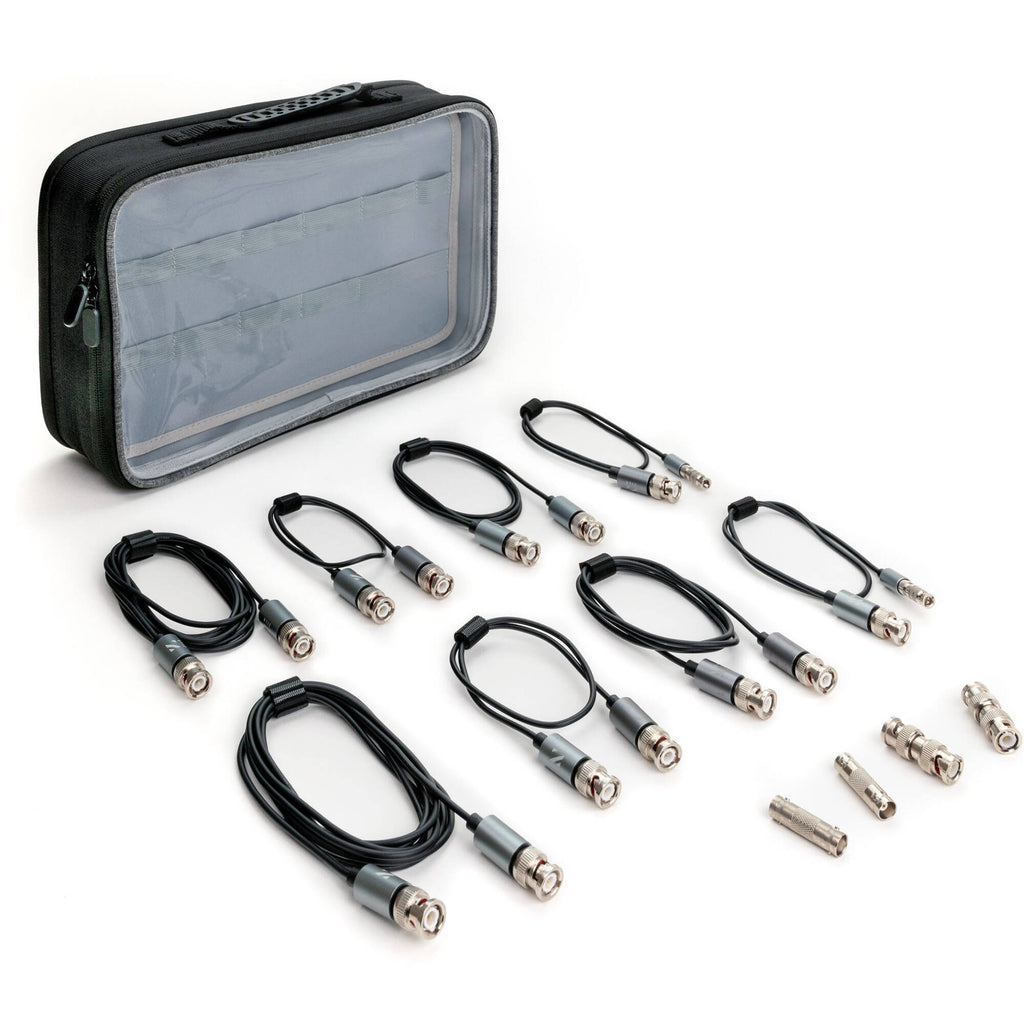

The 12G-SDI BNC and Mini-BNC Cable Kit from ZILR comprises two each of 19.7", 3.3', and 6.6' BNC cables, two 19.7" mini-BNC cables, two female couplers, and two male couplers. Rated for 12G-SDI, these cables support video resolutions up to DCI 4K60. This kit includes a clear-sided, zippered case with interior elastic loops for organizing the cables.
Transfer up to 4K video resolutions with this 3.3' 12G-SDI BNC Cable from ZILR via 12G-SDI, 6G-SDI, HD-SDI, or 3G-SDI signal. Each end is equipped with a male BNC gold center-pin connector to create a 28 AWG coaxial cable for clean signal transmission. The cable is designed with copper braided shielding and supports 12 Gb/s bit rates. An included pouch is perfect for bringing the cable on the go in your preexisting gear bag.
Supporting video signals up to 12G-SDI, this 6.6' long ZLIR 12G-SDI BNC-to-BNC Cable is designed to survive the rigors of the production day. The 28 AWG construction allows the cable to remain flexible, and the copper braided shield helps to protect the integrity of your video signal. The BNC connectors are industry standard for SDI signals, and feature gold-pin connection for signal integrity.
- 4K60 Hz for resolutions up to 4096x2160
- Supports Full HD 1080p
- BNC to BNC
- Supports up to 12 Gbit/s bitrates
- Supports 12G/6G/3G/HD/SD
- Cable thickness of 3.0+/-0.15mm
- Shielding: copper braid >85%
- Wire gauge: 28AWG
- Coaxial type: RG-6
- Insulation type: Polyethylene 80p
- Connectors: gold pin connection 15u"
- VSWR (Voltage Standing Wave Ratio): 1.5D-2V
- Frequency: DC to 12 GHz
- Maximum impedance: >75 ohms
Transfer up to 4K60 video resolutions with this 17.7" 12G-SDI Mini BNC to BNC Cable from ZILR via a 12G-SDI, 6G-SDI, HD-SDI, or 3G-SDI signal. One end has a male mini-BNC connector and the other, a male BNC connector.
Items Included
- 2 x ZILR 12G-SDI BNC Cable (3.3')
- Pouch
- Limited 3-Year Manufacturer Warranty
- 2 x ZILR 12G-SDI BNC-to-BNC Cable (6.6')
- Pouch
- Limited 3-Year Manufacturer Warranty
- 2 x ZILR 12G-SDI Mini BNC to BNC Cable (17.7")
- 2 x 12G-SDI BNC Cable (19.7")
- BNC Coupler Kit
- Carry Case
Additional Resources
No additional resources available
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 24411.8 |
| 3-5 | ₹ 24162.7 |
| 5-10 | ₹ 23664.5 |
| 10+ | ₹ 23166.3 |
Bulk discount will be automatically applied during checkout based on quantity.
