Description
Wooden Camera A00544 Overview

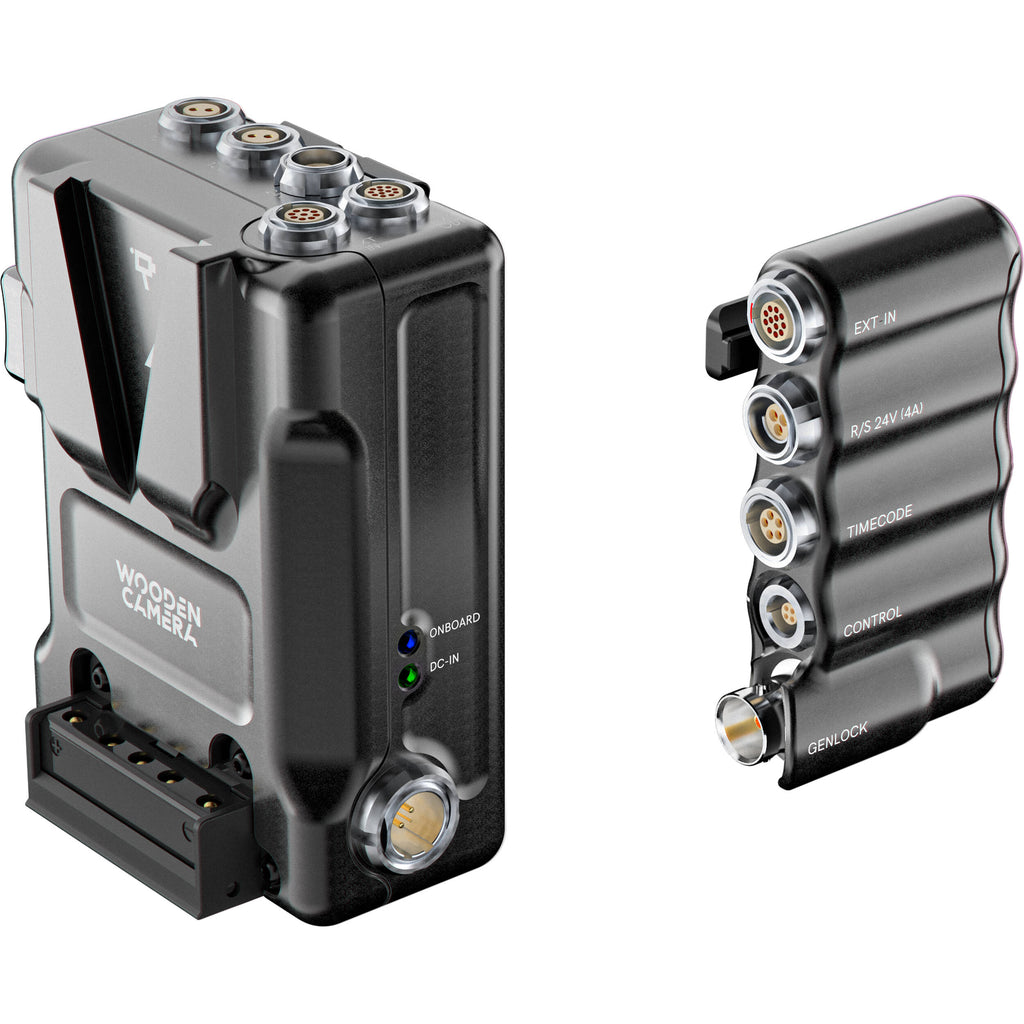

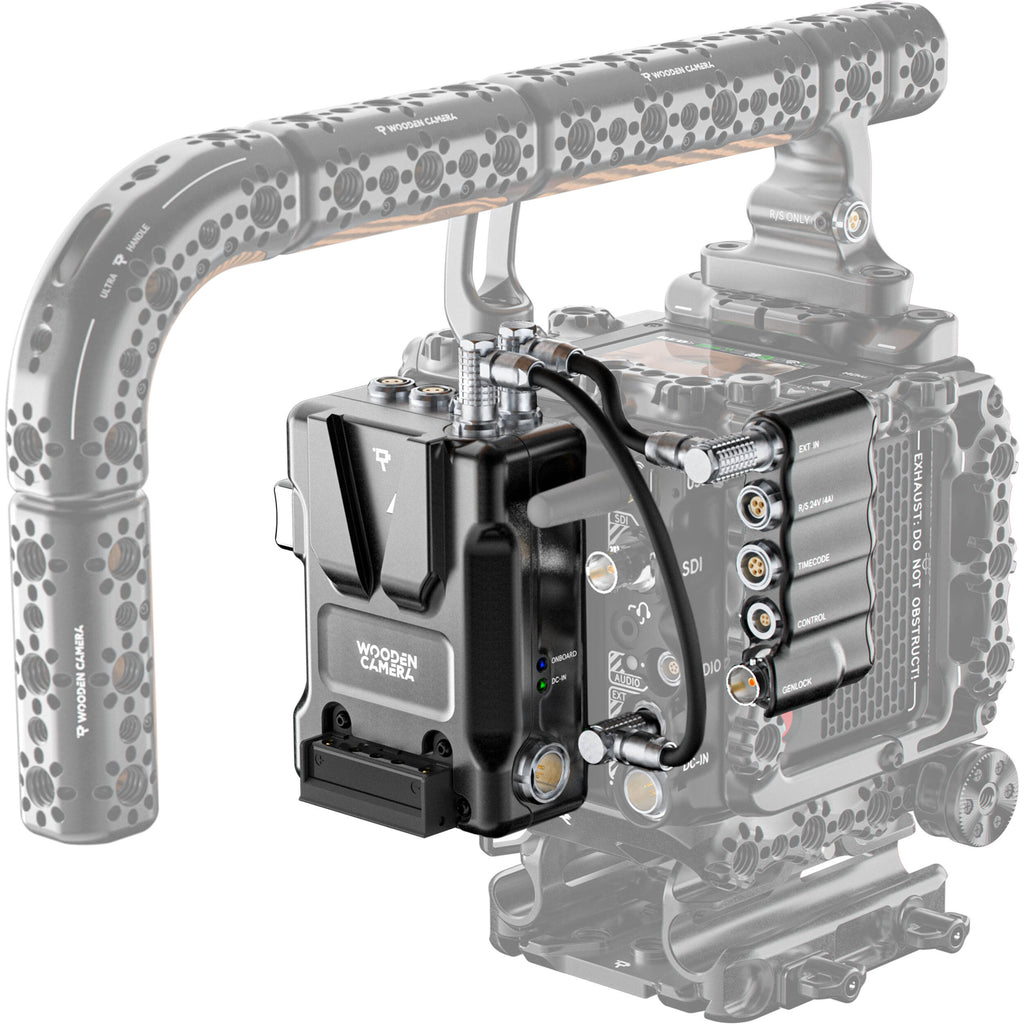

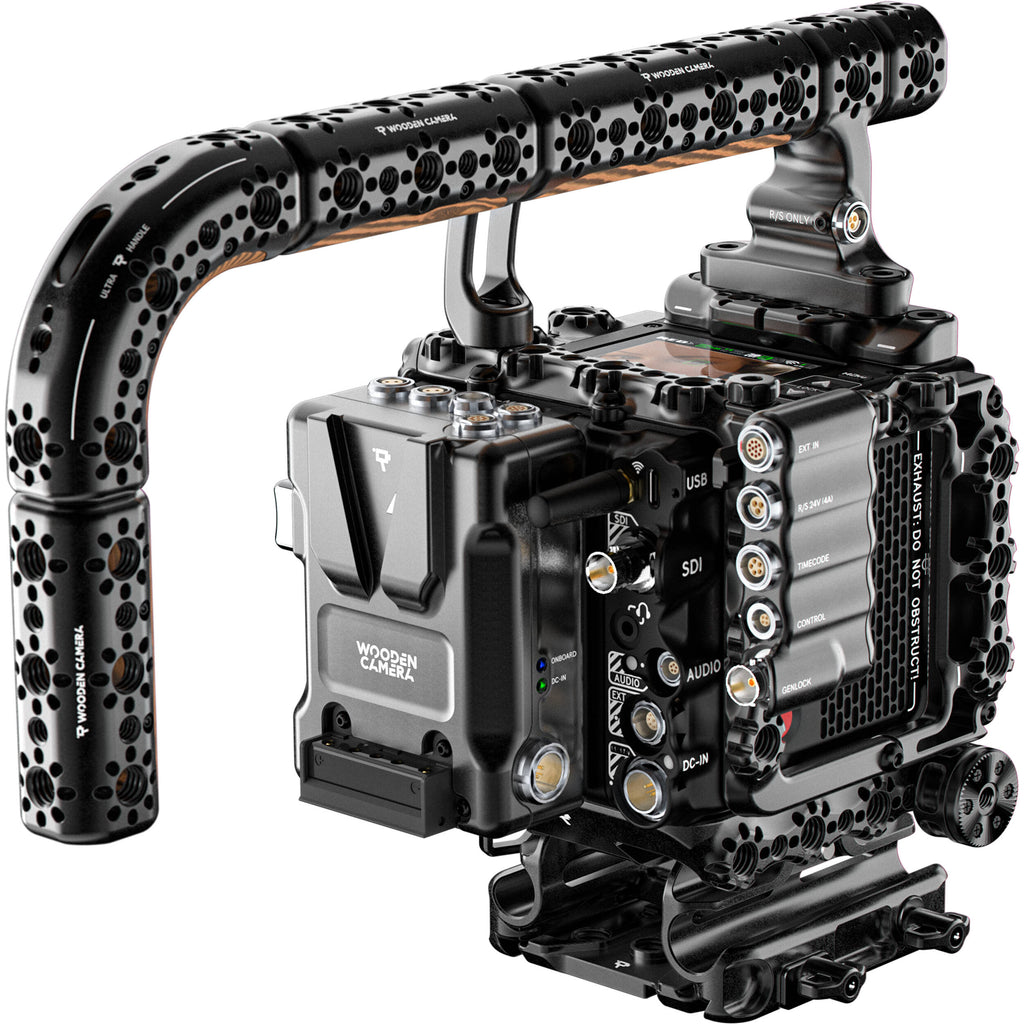

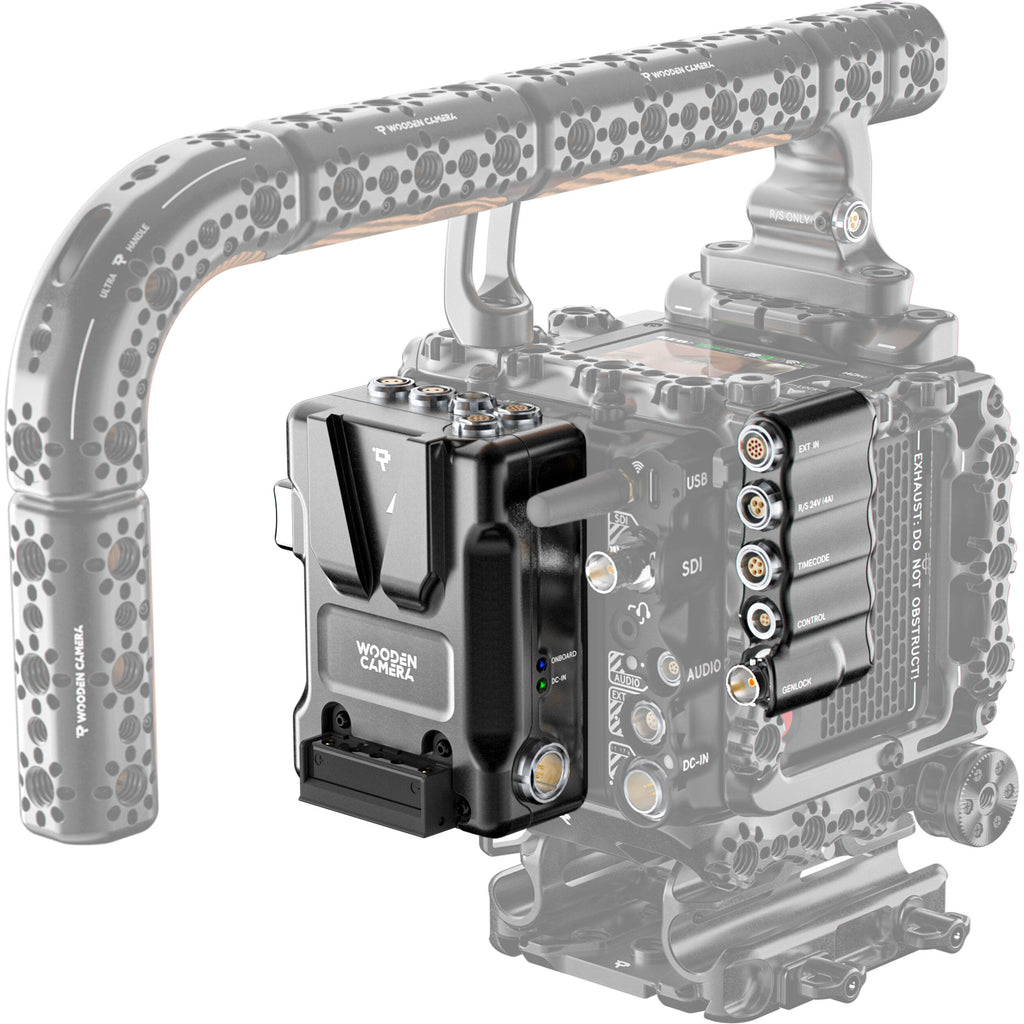

The D-Box and B-Box System from Wooden Camera includes the D-Box with a V-mount plate and the B-Box external control box. The D-Box mounts onto the V-mount plate of the KOMODO-X camera and connects to the 9-pin EXT port on the camera, and the B-Box connects to the pass-through EXT port on the D-Box to add external power, failover, and control options to your camera rig.
There are 9-pin and 12-pin EXT cables included with the kit, as well as a 1.6" Mini Accessory Rail and a 3/8"-16 Bolt-On Accessory mount for outfitting the B-Box. The D-Box is an adapter that provides power distribution, remote power on/off, and hot swap battery functions for the RED KOMODO-X cameras. The B-Box provides external Run/Stop, timecode, control, and genlock for the camera.

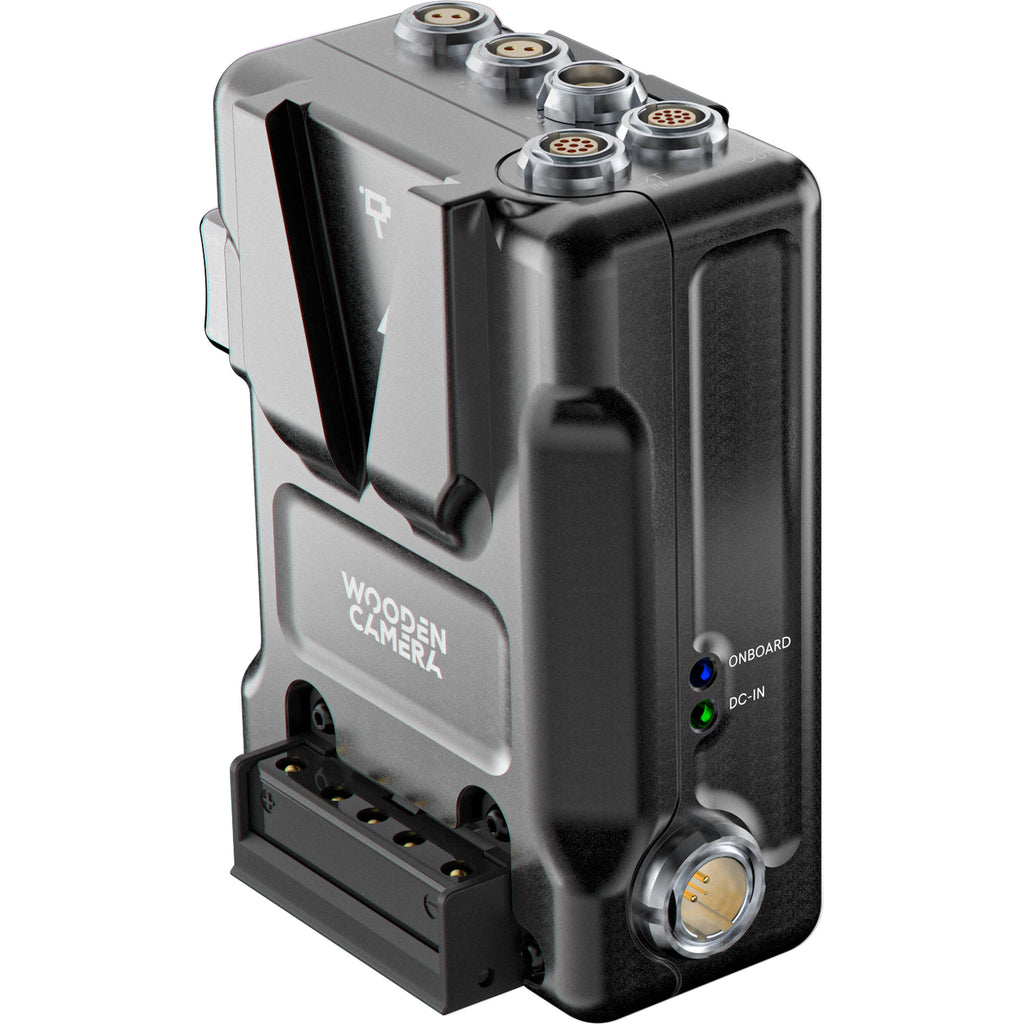

The D-Box from Wooden Camera is an adapter that provides power distribution, remote power on/off, and hot swap battery functions for the RED KOMODO-X cameras. The unit mounts onto the V-mount of your camera and connects to the camera via the included 9-pin EXT cable, and it provides a plate for a separately available V-mount battery. Expanding your selection of powered accessory connectors, this box features D-Tap ports, 12V 2-pin LEMO-type ports, and 24V 3-pin Fischer ports.
There is also a 9-pin EXT input for connection of a DC input for hot-swap and failover functions. It is compatible with an optional B-Box to extend your connections for run/stop, timecode, genlock, and other controls, and it is enabled for run/stop power pass-through.

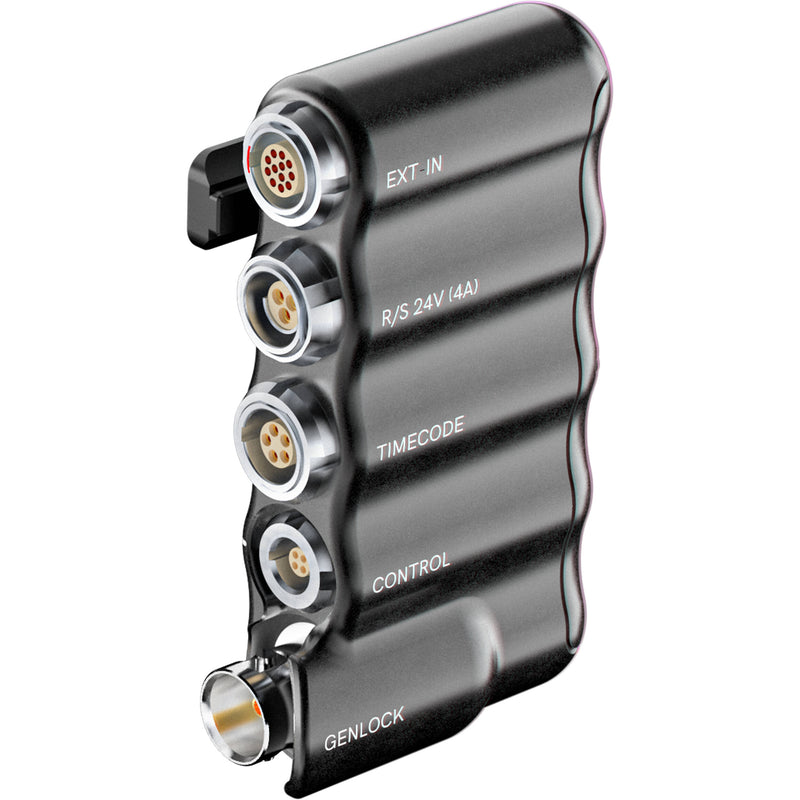

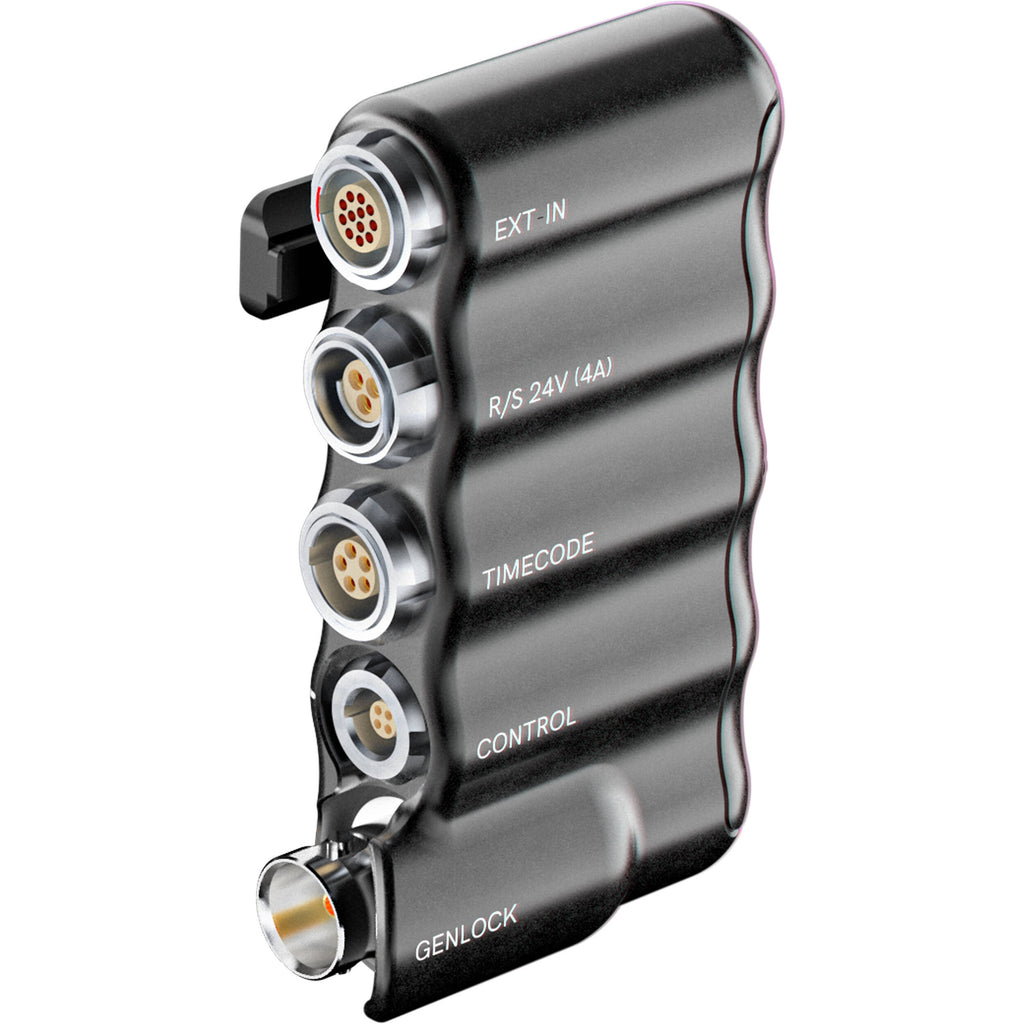

The B-Box Kit from Wooden Camera is an EXT port breakout box for RED DSMC3 cinema cameras such as the KOMODO, KOMODO-X, and V-RAPTOR. This adapter mounts onto the camera or separately available D-Box and features a 9-pin extension port. Use the B-Box to add external 24V run/stop, timecode, control, and genlock ports to your camera rig.

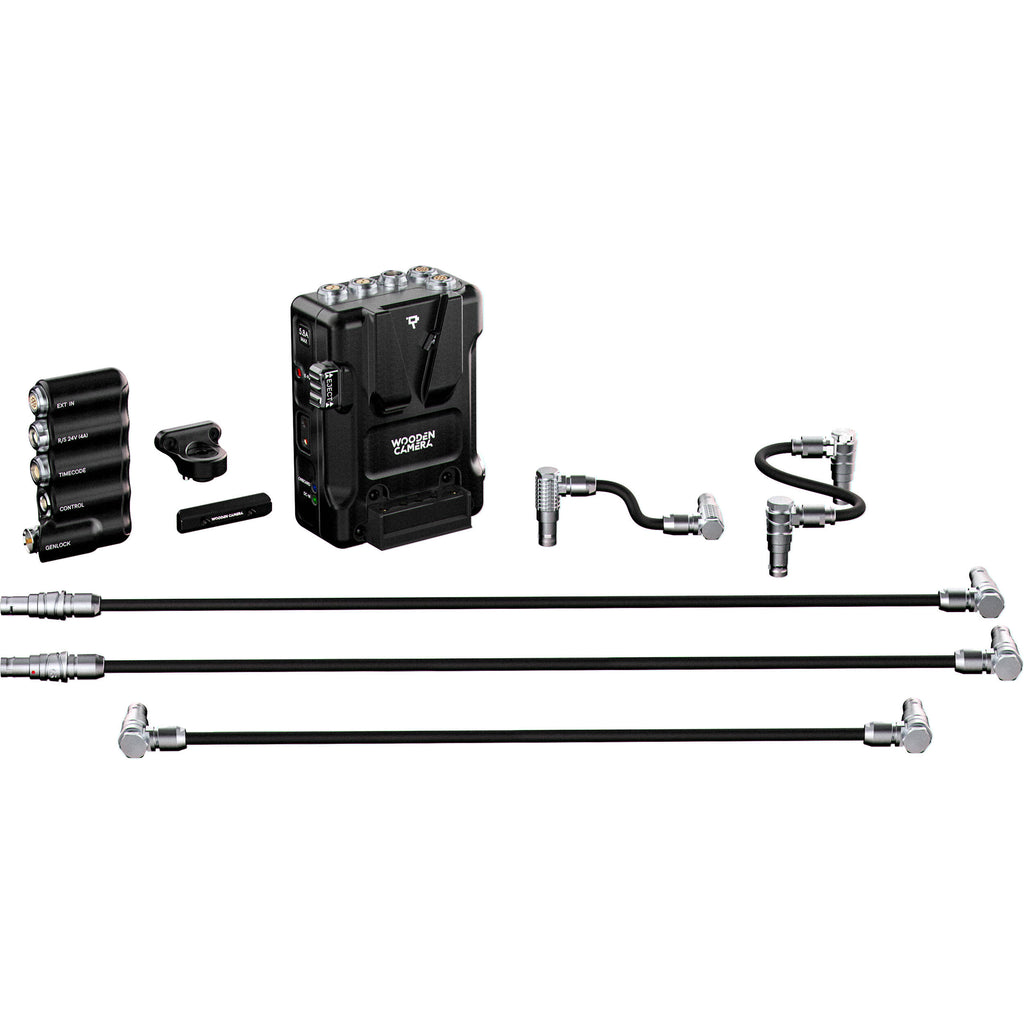

The kit features multiple connector cables, including a 3" 12-pin to 12-pin right-angle EXT cable, a 12" 12-pin to 12-pin straight EXT cable, a 4" 9-pin to 12-pin right-angle EXT cable, and a 9-pin to 12-pin straight EXT cable. There are multiple M2.5 threads around the B-Box for mounting the included 1.6" Mini Accessory Rail and 3/8"-16 Bolt-On Accessory mount.In the Box
- Wooden Camera D-Box for RED KOMODO-X (V-Mount)
- Wooden Camera 9-Pin to 9-Pin 0B Right-Angle Male Cable for D-Box & RED KOMODO-X (5")
- Limited 1-Year Manufacturer Warranty
- Wooden Camera B-Box Kit for RED KOMODO, KOMODO-X & V-RAPTOR
- B-Box
- Wooden Camera Mini Accessory Rail with Safety (1.6")
- Wooden Camera Bolt-On Accessory Plate Adapter (Right-Angle, 3/8"-16)
- Wooden Camera 12-Pin Right-Angle to 12-Pin Right-Angle 0B EXT Cable for D-Box (3")
- Wooden Camera 9-Pin Right-Angle to 12-Pin Right-Angle EXT Cable for B-Box & RED KOMODO/KOMODO-X (4")
- Wooden Camera 9-Pin Right-Angle to 12-Pin Straight EXT Cable for B-Box & RED KOMODO/KOMODO-X (12")
- Wooden Camera 12-Pin Straight to 12-Pin Right-Angle 0B EXT Cable for D-Box (12")
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera A00544Specs
| Power Output |
LEMO 2-Pin: 12 VDC
D-Tap: VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
LEMO 9-Pin: VDC
|
| Power Output |
LEMO 2-Pin: 12 VDC
D-Tap: VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1x D-Tap
2x LEMO 2-Pin 1x Fischer 3-Pin 2x LEMO 9-Pin |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Cable Length |
5" / 12.7 cm
|
| Dimensions |
4.1 x 3.9 x 1.9" / 103 x 100 x 48 mm
|
| Weight |
9.6 oz / 273.5 g
|
| Package Weight |
1.065 lb
|
| Box Dimensions (LxWxH) |
7.2 x 4.5 x 3.3"
|
Wooden Camera A00544Specs
| Compatibility |
RED KOMODO / KOMODO-X / V-RAPTOR
|
| Connectors |
1 x 9-Pin EXT Input
1 x 3-Pin Fischer, 24 V Run/Stop 1 x 5-Pin LEMO-Type, Timecode 1 x 4-Pin LEMO-Type, Control 1 x BNC, Genlock |
| Mounting |
8x M2.5 Threads
|
| Material of Construction |
Aluminum
|
| Dimensions |
3 x 1.7 x 1.2" / 75 x 42 x 30 mm
|
| Weight |
3.1 oz / 87 g
|
| Package Weight |
0.53 lb
|
| Box Dimensions (LxWxH) |
5.6 x 4.8 x 1.55"
|
