Description
Wooden Camera A00497 Overview

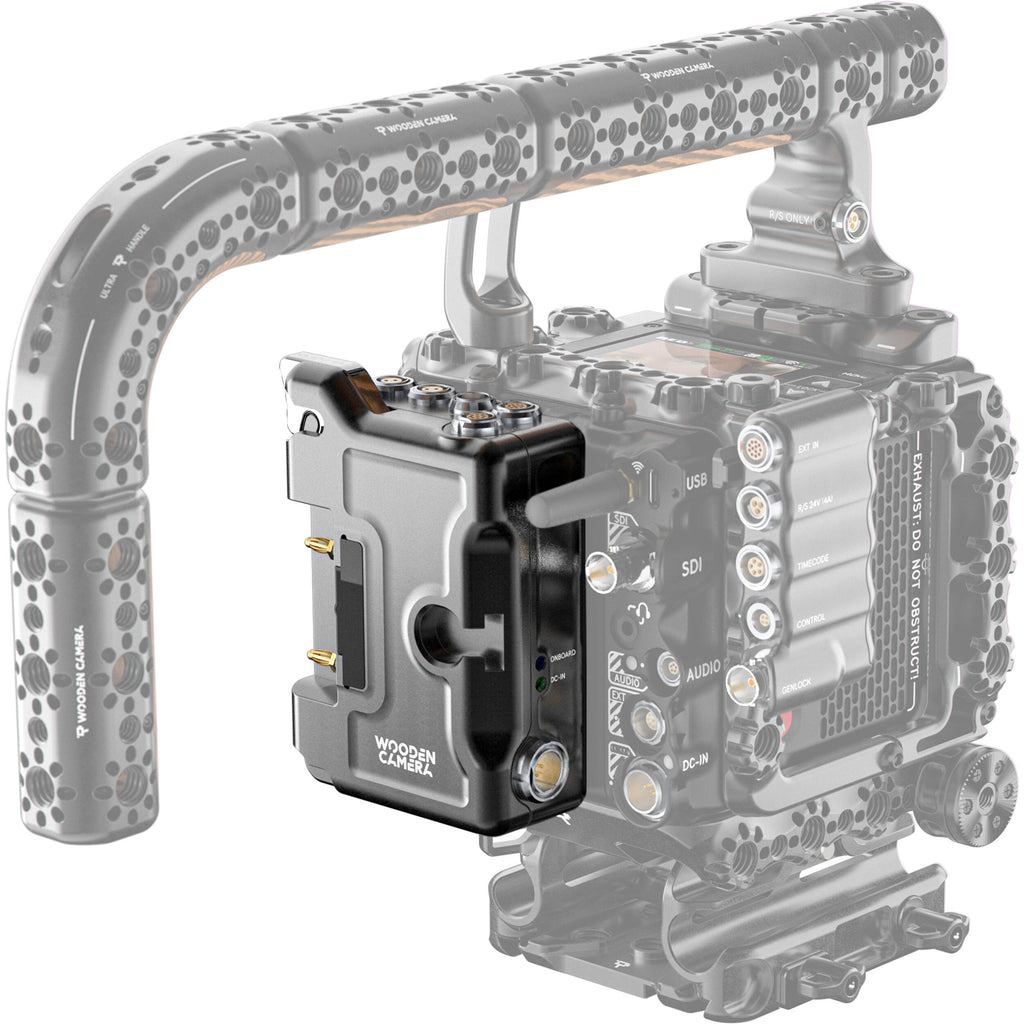

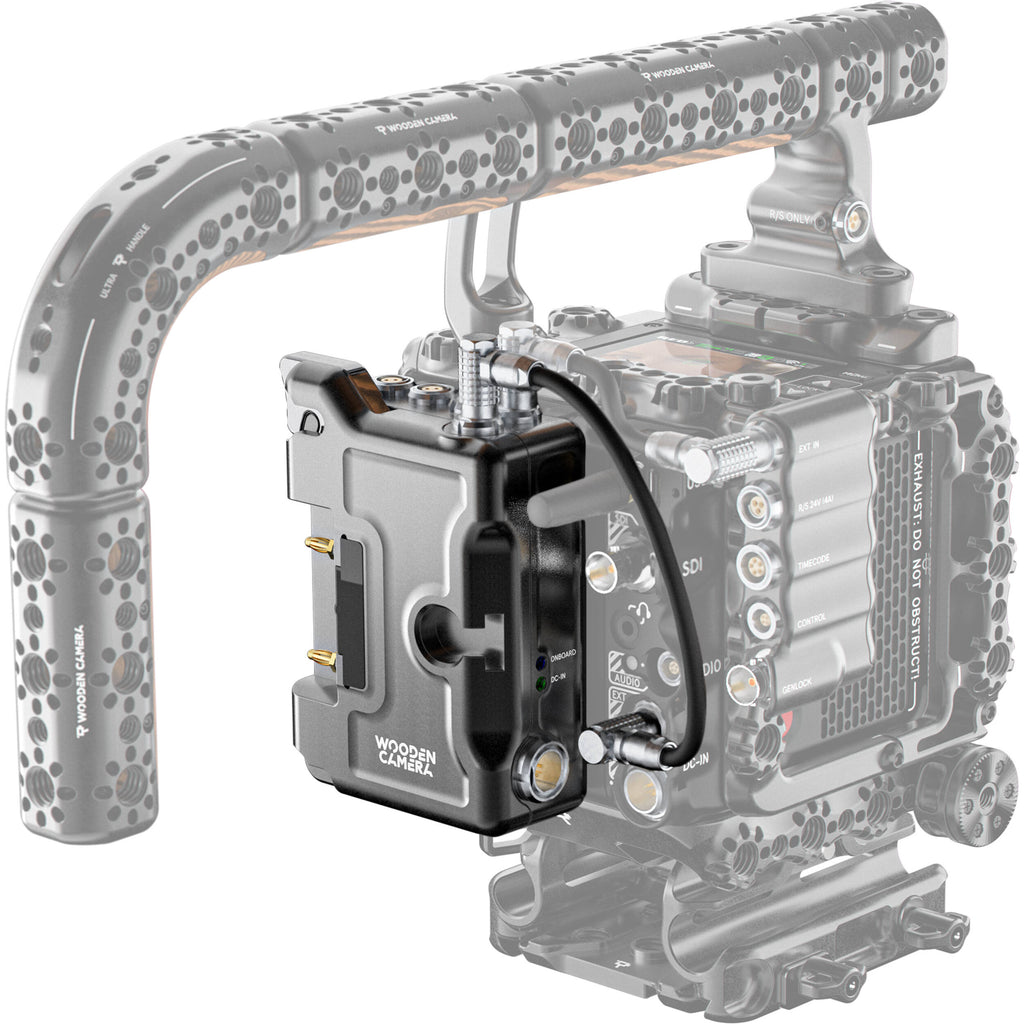

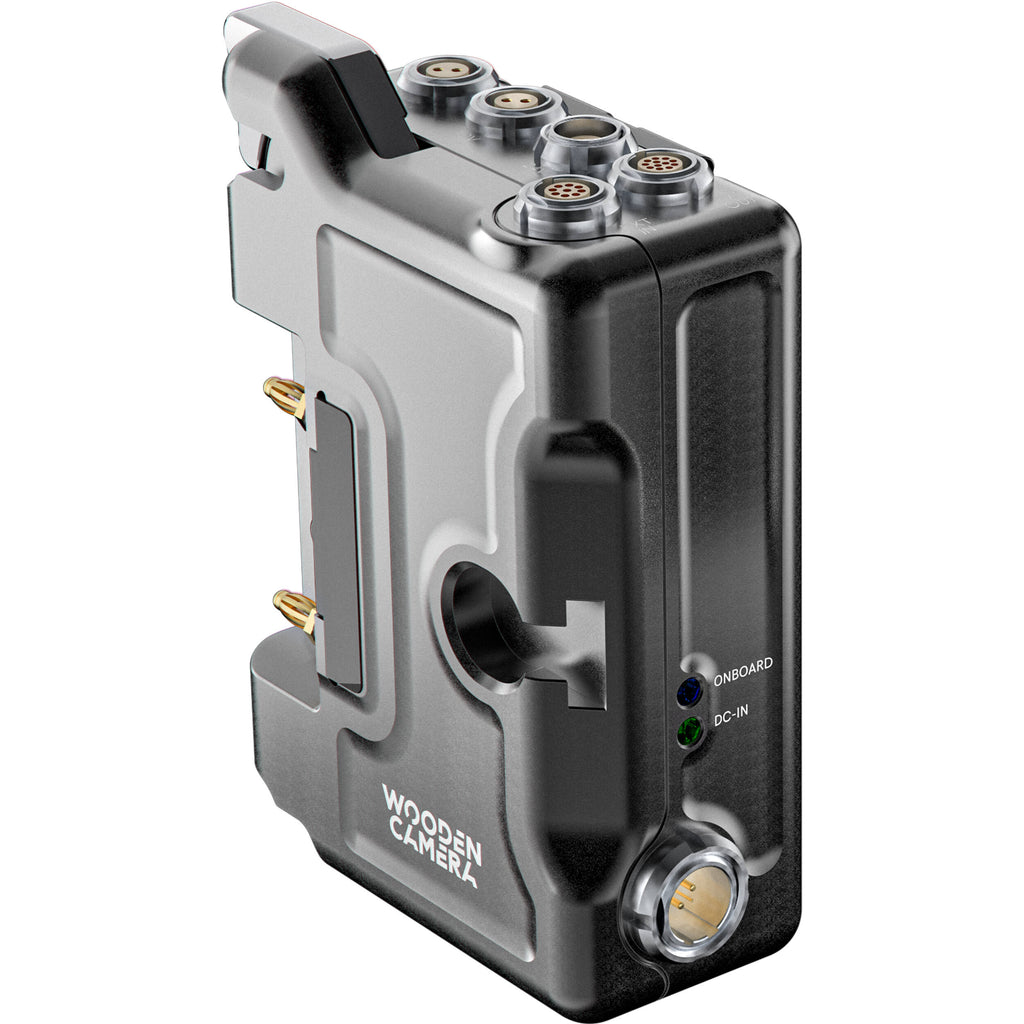

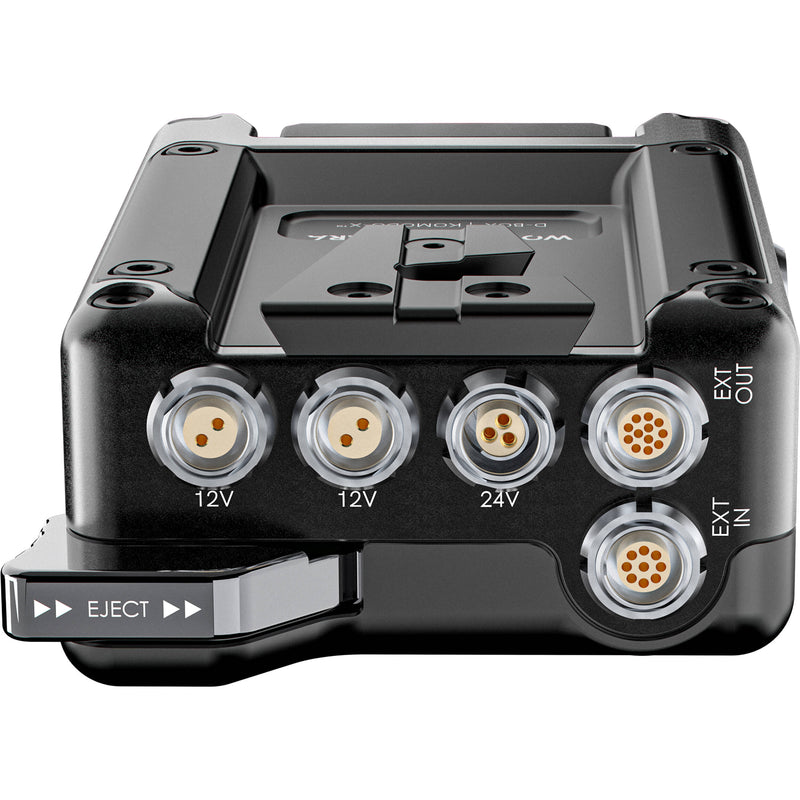

The D-Box from Wooden Camera is an adapter that provides power distribution, remote power on/off, and hot swap battery functions for the RED KOMODO-X cameras. The unit mounts onto the V-mount of your camera and connects to the camera via the included 9-pin EXT cable, and it provides a plate for a separately available Gold mount battery. Expanding your selection of powered accessory connectors, this box features D-Tap ports, 12V 2-pin LEMO-type ports, and 24V 3-pin Fischer ports.
There is also a 9-pin EXT input for connection of a DC input for hot-swap and failover functions. It is compatible with an optional B-Box to extend your connections for run/stop, timecode, genlock, and other controls, and it is enabled for run/stop power pass-through.
In the Box
- Wooden Camera D-Box for RED KOMODO-X (Gold Mount)

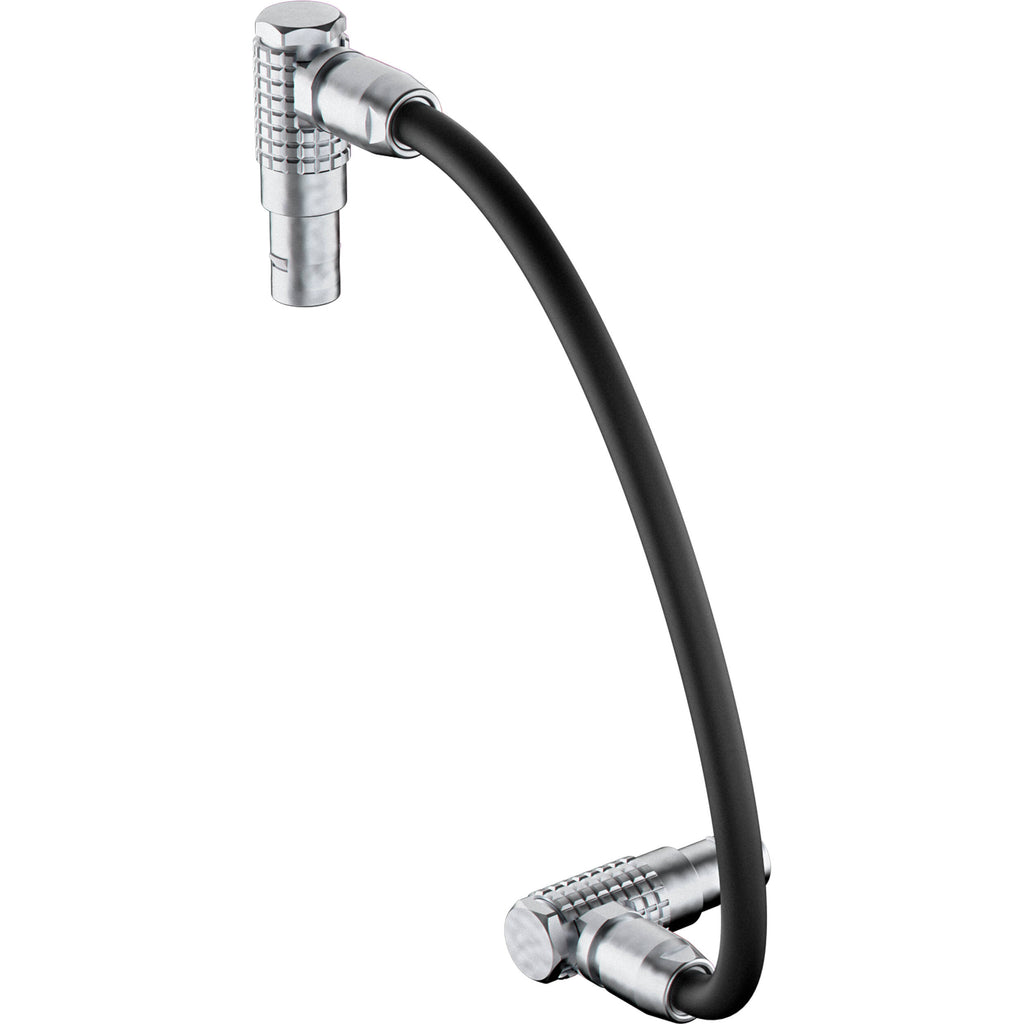

- Wooden Camera 9-Pin to 9-Pin 0B Right-Angle Male Cable for D-Box & RED KOMODO-X (5")
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera A00497Specs
| Power Output |
LEMO 2-Pin: 12 VDC
D-Tap: VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
Gold Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
LEMO 9-Pin: VDC
|
| Power Output |
LEMO 2-Pin: 12 VDC
D-Tap: VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1x D-Tap
2x LEMO 2-Pin 1x Fischer 3-Pin 2x LEMO 9-Pin |
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Cable Length |
5" / 12.7 cm
|
| Dimensions |
4.1 x 3.08 x 1.5" / 105 x 78.25 x 38.9 mm
|
| Weight |
9.1 oz / 259 g
|
| Package Weight |
0.99 lb
|
| Box Dimensions (LxWxH) |
7.2 x 4.4 x 3.3"
|
