Description
Laird Digital Cinema 12GSDI-B-B Overview
- 1Description
- 2UHD 4K/12G-SDI Transmission
- 3Excellent Return Loss
- 4Indoor/Outdoor Use

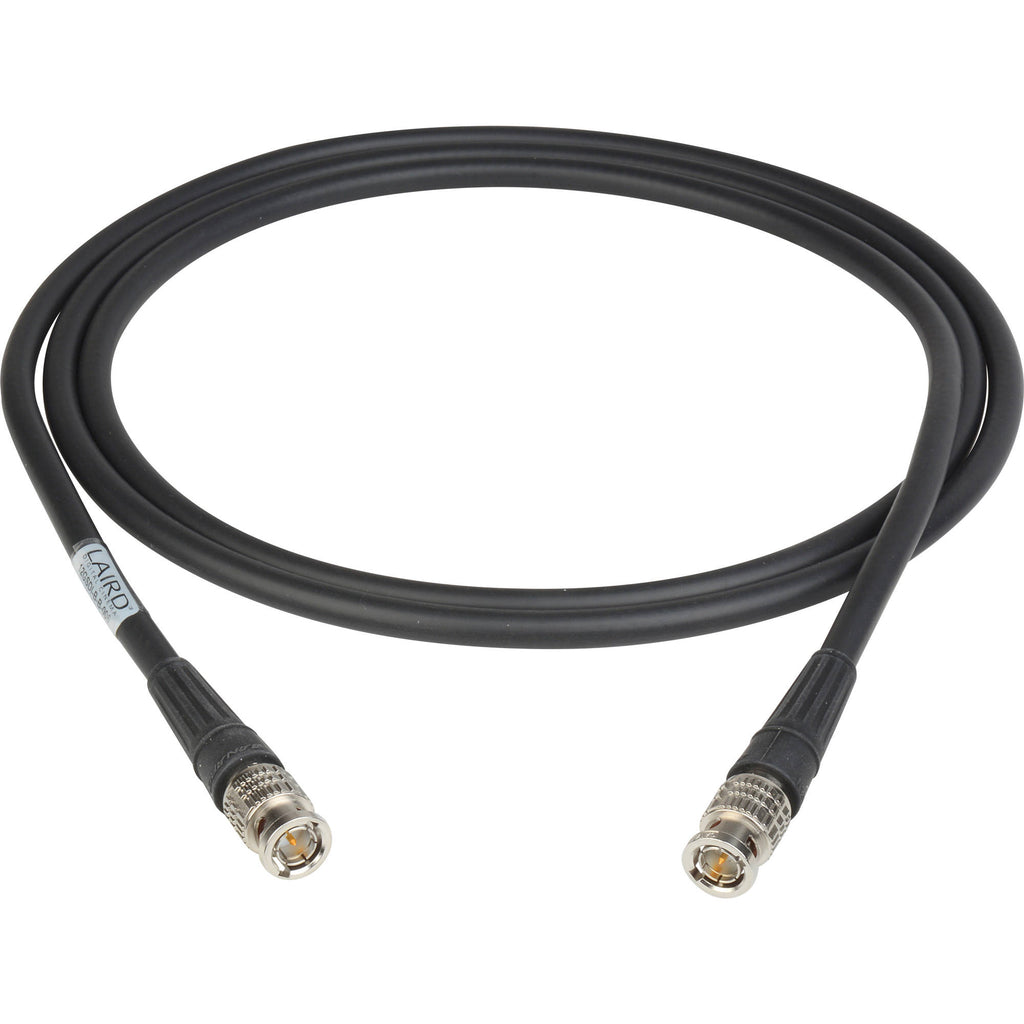

Future proof your facilities for 12G-SDI cameras and equipment carrying up to a UHD 4K signal with this 150' 12G-SDI UHD 4K Single-Channel BNC Cable from Laird Digital Cinema. This SMPTE ST-2082-1 compliant cable features a Canare L-5.5CUHD miniature coaxial cable and BCP-D55UHD connectors with foamed PE insulation for optimal attenuation. Suitable for studio, broadcast, and outdoor installations, this cable features excellent return loss ratios that are compatible with 12G/6G/3G/HD-SDI systems.
UHD 4K/12G-SDI Transmission
- Supports up to 12G-SDI 4K video
- Canare L-5.5CUHD miniature coaxial and BCP-D55UHD connectors
- Full SMPTE ST-2082-1 compliance
Excellent Return Loss
Return loss of 15 dB at 12 GHz, 20 dB at 6 GHz, and 26 dB at 3 GHz
Indoor/Outdoor Use
Compatible with studio and both indoor and outdoor broadcast applications
In the Box
- Laird Digital Cinema 12GSDI-B-B 12G-SDI UHD 4K Single-Channel BNC Cable (150')
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- UHD 4K/12G-SDI Transmission
- Excellent Return Loss
- Indoor/Outdoor Use
Laird Digital Cinema 12GSDI-B-B Specs
General
| Connector 1 | 1 x BNC |
| Connector 2 | 1 x BNC |
| Cable Length | 150' / 45.7 m |
| Signal Type | 12G-SDI |
| SMPTE Standards | SMPTE 2082-1 |
| Conductor Material | Annealed Copper |
| Insulation Type | Foamed-Polyethylene (FM-PE) |
| Shielding | 91% Tinned-Annealed Copper (TAC) Braid (Outer) |
| Weight | 7.54 lb / 3.42 kg |
