Description
Laird Digital Cinema 12GSDI-B-B Overview
- 1Description
- 2UHD 4K/12G-SDI Transmission
- 3Excellent Return Loss
- 4Indoor/Outdoor Use

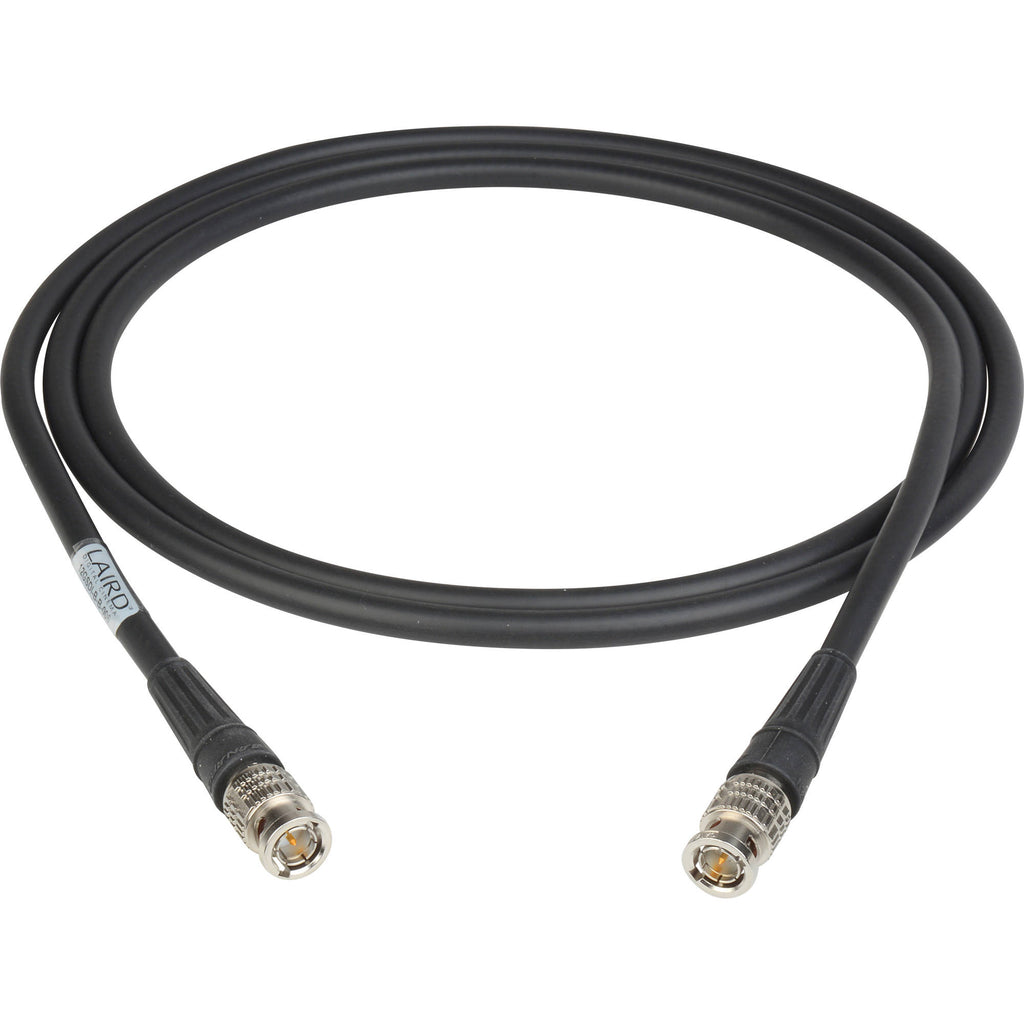

Future proof your facilities for 12G-SDI cameras and equipment carrying up to a UHD 4K signal with this 35' 12G-SDI UHD 4K Single-Channel BNC Cable from Laird Digital Cinema. This SMPTE ST-2082-1 compliant cable features a Canare L-5.5CUHD miniature coaxial cable and BCP-D55UHD connectors with foamed PE insulation for optimal attenuation. Suitable for studio, broadcast, and outdoor installations, this cable features excellent return loss ratios that are compatible with 12G/6G/3G/HD-SDI systems.
UHD 4K/12G-SDI Transmission
- Supports up to 12G-SDI 4K video
- Canare L-5.5CUHD miniature coaxial and BCP-D55UHD connectors
- Full SMPTE ST-2082-1 compliance
Excellent Return Loss
Return loss of 15 dB at 12 GHz, 20 dB at 6 GHz, and 26 dB at 3 GHz
Indoor/Outdoor Use
Compatible with studio and both indoor and outdoor broadcast applications
In the Box
- Laird Digital Cinema 12GSDI-B-B 12G-SDI UHD 4K Single-Channel BNC Cable (35')
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- UHD 4K/12G-SDI Transmission
- Excellent Return Loss
- Indoor/Outdoor Use
Laird Digital Cinema 12GSDI-B-B Specs
General
| Connector 1 | 1 x BNC |
| Connector 2 | 1 x BNC |
| Cable Length | 325' / 1.83 m |
| Signal Type | 12G-SDI |
| SMPTE Standards | SMPTE 2082-1 |
| Conductor Material | Annealed Copper |
| Insulation Type | Foamed-Polyethylene (FM-PE) |
| Shielding | 91% Tinned-Annealed Copper (TAC) Braid (Outer) |
| Weight | 1.79 lb / 813.02 g |
Packaging Info
| Package Weight | 1.9 lb |
| Box Dimensions (LxWxH) | 15.4 x 9.8 x 1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10995.6 |
| 3-5 | ₹ 10883.4 |
| 5-10 | ₹ 10659.0 |
| 10+ | ₹ 10434.6 |
