Description

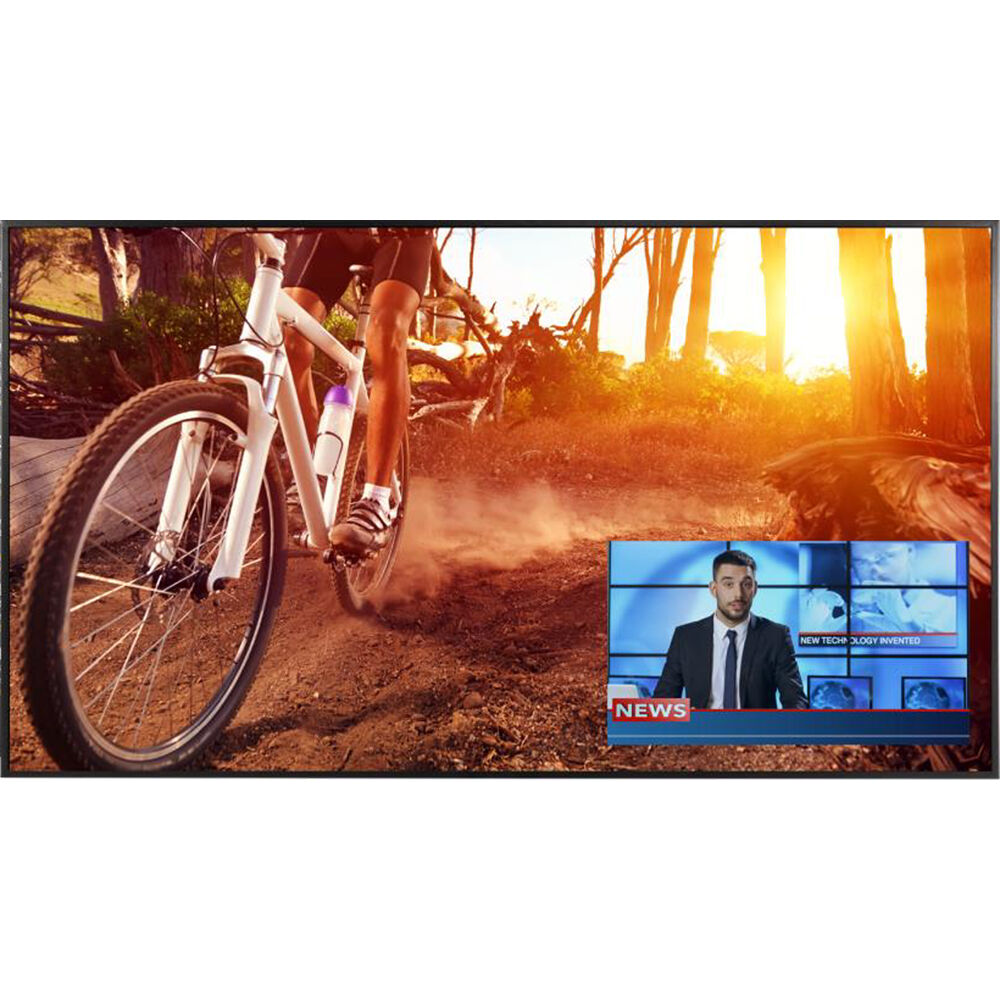

Planar Systems UltraRes Overview
The UltraRes P Series 85" UHD4K Commercial Monitor from Planar is a 500 nits bright LCD display, capable of 24/7 continuous operation. With built-in scheduling, monitoring, control system support, and the ability to display in portrait or landscape orientation, the URP85 is ideal for dynamic digital signage and many other applications. Multi-input display capability allows for up to four sources to be viewed on screen at one time, with image adjustments available to optimize picture quality for each source separately. Additionally, the URP85 is TAA compliant with no wireless function or open-source OS, making it secure for government applications.
Multi-Source Viewing
Planar MediaPlex Plus Processing enables advanced multi-source viewing, image adjustments, remote monitoring, and e-mail alerts. It supports picture-in-picture, dual, triple, or quad layouts and storable preset configurations that can be recalled with one command.
Always-On Reliability
Planar displays are designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.
Landscape or Portrait
Displays can be mounted in either landscape or portrait orientation, opening the door to a wider array of deployment environments and applications, and enabling greater creativity in content development.
Convenient Control
Conveniently manage multi-source viewing remotely when connected to the same network using the Planar UltraRes App, available for Android devices.
On Your Schedule
Schedule automated events such as recalling image layout configurations, adjusting brightness, and powering on & off. Scheduling events can save energy usage and administrative time.
Stay Informed
Browser-based Remote Monitoring software displays information about the display and lets users make adjustments to zones, brightness, power settings, and more. Set up e-mail notifications to be alerted about designated performance incidents, and always remain looped in.
Made for America
Organizations that prefer to use products that have been manufactured in the United States or countries designated in the U.S. Trade Agreements Act (TAA) need look no further.
Crestron & Q-SYS Modules and Drivers
Control system modules, drivers and plugins ease reseller integration and consultant recommendations. Crestron and Q-SYS drivers and plugins can save hours of programming, installation, and cost.
Additional Features
- IR remote included
- RS-232 control capable
- RJ45 LAN network connection
- HDMI-CEC
- Optical and 3.5mm audio outputs
- Built-in 10W stereo speakers
- Fan-less design for quiet operation
- Energy Star certified
UPC: 810069810492
Items Included
- Planar Systems UltraRes P Series 85" UHD 4K Commercial Monitor
- Remote Control
- 2 x AAA Batteries
- IR Sensor
- HDMI Cable
- USB-A to USB-B Cable
- AC Power Cord
- IEC C14 to NEMA 5-15R Adapter Cable
- IEC C14 to EU/UK AC Power Adapter
- Limited 3-Year Manufacturer Warranty (Planar Advance Exchange)
Additional Resources
Planar Systems UltraRes Specs
Key Specs
| Display Size |
85"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| Inputs |
1x DisplayPort 1.2
2x HDMI 2.0 2x HDMI 1.4 |
| Outputs |
1x DisplayPort
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Service)
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 10 W
|
| Media Card Reader |
No
|
Display
| Display Size |
85"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
5000:1
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Color Gamut |
72% NTSC
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
73.7 x 41.5" / 1872 x 1053 mm
|
| Pixels Per Inch (ppi) |
52 ppi
|
| Finish |
Anti-Glare / Matte
|
Surface
| Haze Level |
1%
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1x DisplayPort 1.2
2x HDMI 2.0 2x HDMI 1.4 |
| Outputs |
1x DisplayPort
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Service)
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 1/8" / 3.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Speaker
| Built-In Speakers |
Yes, 2x 10 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| OS Compatibility |
Android Only
|
| Mobile App Compatible |
Yes: Android Only
App Name: Planar UltraRes Functionality: Remote Control, Setup |
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Languages |
English
French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Standby: < 0.5 W
Typical: 175.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 85% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Certifications |
FCC Class A, cTUVus, CE, ENERGY STAR
|
| Mounting-Hole Pattern |
600 x 400 mm
|
| Lighting Lifespan |
50000 Hours at 50% Brightness
|
| Lock Slot |
No
|
| Bezel Thickness |
13 mm (Bottom/Right/Top/Left)
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
74.9 x 42.6 x 3.5" / 1902 x 1083 x 89.4 mm (without Handle)
74.9 x 42.6 x 3.6" / 1902 x 1083 x 92.6 mm |
| Weight |
127.9 lb / 58 kg
|
