Description
Planar Systems URX85 Overview

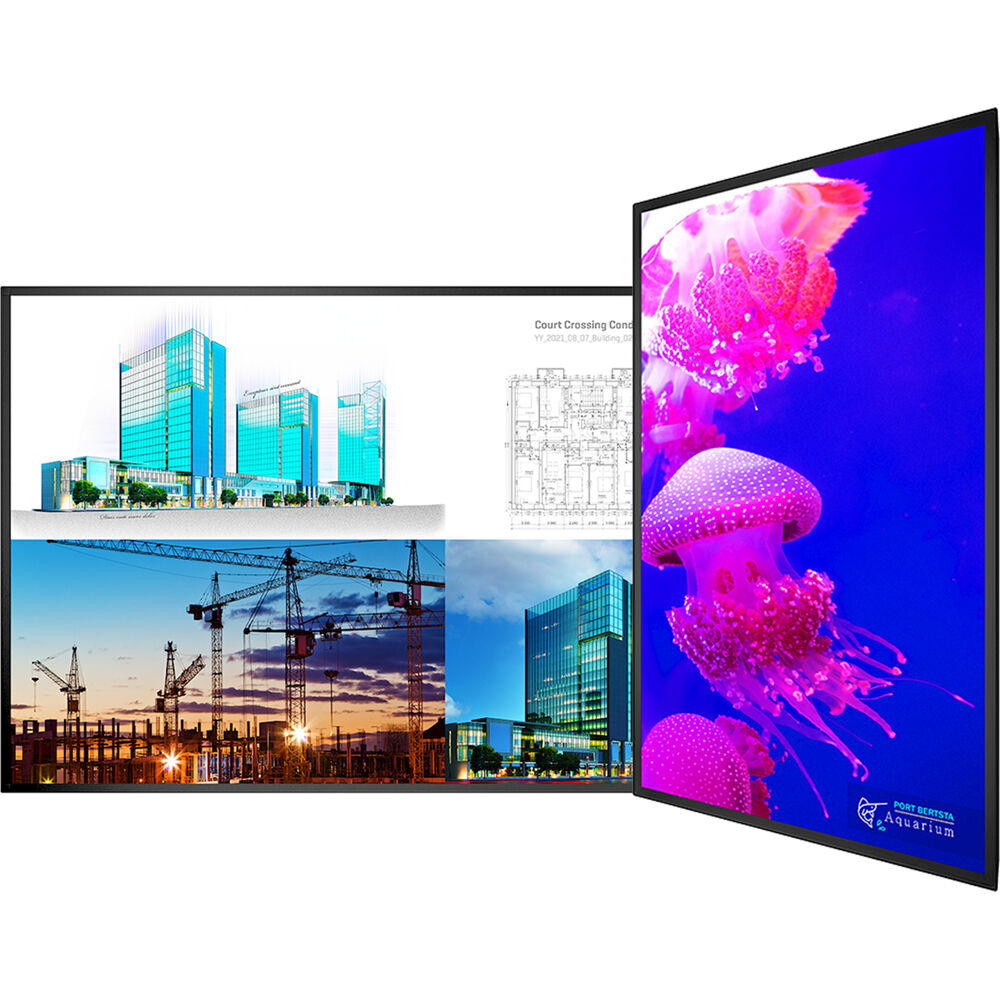

The Planar UltraRes X Series 85" UHD 4K HDR Commercial Monitor is a TAA compliant, 630 nits bright display, capable of 24/7 continuous operation. It features Planar ERO-LCD optically bonded glass technology with Corning Gorilla Glass for durability and protection in public environments.
With HDR color, built-in scheduling, monitoring, control system support, and the ability to display in portrait or landscape orientation, the URX-85-ERO is ideal for high-impact digital signage, control rooms, media rooms, and more. It offers an OPS slot for additional connectivity, and a redundant power supply to prevent failure and aid in maintenance. Multi-input display capability allows for up to four sources to be viewed on screen at one time, with image adjustments available to optimize picture quality for each source separately. The URX-85-ERO is TAA compliant with signed and encrypted firmware and no Wi-Fi or Android OS, making it secure for government applications.
Multi-Source Viewing
Planar MediaPlex Plus Processing enables advanced multi-source viewing, image adjustments, remote monitoring, and e-mail alerts. It supports picture-in-picture, dual, triple, or quad layouts and storable preset configurations that can be recalled with one command.
Extended Ruggedness & Optics
Planar ERO-LCD (Extended Ruggedness and Optics) technology featuring Corning Gorilla Glass involves optical bonding or laminating cover glass to the front surface of the LCD video wall or large format LCD display with a bonding agent that completely fills the air gap. This creates a highly durable display surface that withstands rigors of high-traffic and interactive environments. Planar ERO-LCD also improves perceived contrast by more than 300% and reduces parallax error.
Always-On Reliability
Displays are designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.
Convenient Control
Conveniently manage multi-source viewing remotely when connected to the same network using the Planar UltraRes App. Available for Android devices.
On Your Schedule
Schedule automated events such as recalling image layout configurations, adjusting brightness, and powering on and off. Scheduling events can save energy usage and administrative time.
HDR Ready
This display is ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks, and more true-to-life colors. HDR displays are designed to show a larger percentage of the visible color spectrum, rendering on-screen content with the hues and shades creators intended, for a more genuine viewing experience.
Made for America
Organizations that prefer to use products that have been manufactured in the United States or countries designated in the US Trade Agreements Act (TAA) need look no further.
Crestron & Q-SYS Modules & Drivers
Control system modules, drivers, and plugins ease reseller integration and consultant recommendations. Crestron and Q-SYS drivers and plugins can save hours of programming, installation, and cost.
Additional Features
- 2mm Corning Gorilla Glass with anti-glare coating
- IR remote included
- RS-232 control capable
- RJ45 LAN network connection
- HDMI-CEC
- Optical and 3.5mm audio outputs
- Built-in 10W stereo speakers
- Fanless design for quiet operation
Items Included
- Planar Systems UltraRes X Series 85" UHD 4K HDR Commercial Monitor
- Remote Control
- 2 x AAA Batteries
- AC Power Cord
- IR Sensor
- HDMI Cable
- USB-A to USB-B Cable
- Carrying Strap for Lifting and Carrying the Display Using Three People
- Planar TouchMark Single License Key Card
- 2 x Profile Mount Wall Mount Brackets
- 2 x Service Bracket Wall Mount Brackets
- Profile Mount Install Template
- Limited 3-Year Manufacturer Warranty (Planar Advance Exchange)
Additional Resources
No additional resources available
Planar Systems URX85 Specs
Key Specs
| Display Size |
85"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
630 nits / cd/m2
|
| Inputs |
2x HDMI 2.0
2x HDMI 1.4 1x DisplayPort 1.2 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x DisplayPort
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
No
|
| USB I/O |
No
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 2.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 10 W
|
| Media Card Reader |
No
|
Display
| Display Size |
85"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
630 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
Yes, HDR10
|
| Contrast Ratio |
4000:1
|
| Dynamic Contrast Ratio |
20,000:1
|
| Response Time |
8.5 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Color Gamut |
88% NTSC
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
73.7 x 41.5" / 1872 x 1053 mm
|
| Pixels Per Inch (ppi) |
52 ppi
|
| Finish |
Anti-Glare / Matte
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
2x HDMI 2.0
2x HDMI 1.4 1x DisplayPort 1.2 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x DisplayPort
1x TOSLINK Optical (Digital Audio) 1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
No
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1x 2.5 mm IR Input
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Number of OPS/Expansion Slots |
1
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Speaker
| Built-In Speakers |
Yes, 2x 10 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| OS Compatibility |
Computer: Windows 10 or Later / macOS / Linux
Mobile: Android Only |
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Typical: 270.0 W
Maximum: 360.0 W Standby: < 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 85% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Certifications |
FCC Class A, cTUVus, CE, RoHS
|
| Mounting-Hole Pattern |
600 x 400 mm
|
| Lighting Lifespan |
70000 Hours at 50% Brightness
|
| Impact Resistance |
No
|
| Bezel Thickness |
3 mm (Bottom/Right/Top/Left)
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
75.6 x 43.3 x 3.7" / 1919 x 1100 x 92.8 mm
|
| Weight |
220.5 lb / 100 kg
|
