Description
The MCP3202-CI/SN is a 12-bit Analogue-to-Digital Converter with SPI serial interface combines high performance and low power consumption. The MCP3202 features a successive approximation register (SAR) architecture and an industry-standard SPI� serial interface, allowing 12-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3202 features 100k samples/second, 2 input channels, low power consumption (5nA typical standby, 550 µA max active). Applications for the MCP3202 includes data acquisition, multi-channel data loggers, robotics and smart sensors.
- 12-bit Resolution
- ±2 LSB Maximum INL
- Analogue inputs programmable as dual single-ended
- On-chip sample and hold
- SPI serial interface (modes 0,0 and 1,1)
- 100kSPS Maximum sampling rate at VDD = 5V
- 50kSPS Maximum sampling rate at VDD = 2.7V
- Low power CMOS technology
- 500nA Typical standby current, 5µA maximum
- 550µA Maximum active current at 5V
Applications
Sensing & Instrumentation, Automation & Process Control, Power Management, Embedded Design & Development, Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Operating Temperature Min | -40°C |
| Resolution (Bits) | 12bit |

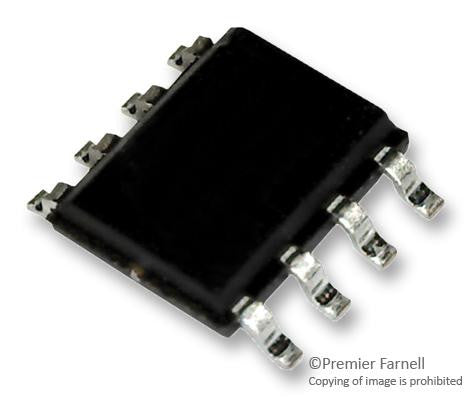

| ADC / DAC Case Style | SOIC |
| Supply Voltage Type | Single |
| Operating Temperature Max | 85°C |
| Sampling Rate | 100kSPS |
| Data Interface | Serial, SPI |
| No. of Pins | 8Pins |
| Product Range | Dual 12-Bit SAR ADCs |
| Automotive Qualification Standard | AEC-Q100 |
| Supply Voltage Min | 2.7V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| Input Channel Type | Pseudo Differential, Single Ended |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP3202-CI/SN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
