Description
The MCP3204-CI/P is a 4-channel 12-bit Analog-to-digital Converter (ADC) with SPI serial interface and on-board sample and hold circuitry. The ADC is programmable to provide two pseudo-differential input pairs or four single-ended inputs. This is programmable to provide four pseudo-differential input pairs or eight single-ended inputs. Differential nonlinearity is specified at ±1LSB, while integral nonlinearity is offered in ±1 and ±2LSB version. Communication with the devices is accomplished using a simple serial interface compatible with the SPI protocol. The devices are capable of conversion rates of up to 100ksps. The ADC device operates over a broad voltage range. Low current design permits operation with typical standby and active currents of only 500 and 320µA respectively.
- Analog inputs programmable as single-ended or pseudo-differential pairs
- Low power CMOS technology
Applications
Sensing & Instrumentation, Automation & Process Control
Product details
| Operating Temperature Min | -40°C |
| Resolution (Bits) | 12bit |
| ADC / DAC Case Style | DIP |
| Supply Voltage Type | Single |
| Operating Temperature Max | 85°C |
| Sampling Rate | 100kSPS |
| Data Interface | Serial, SPI |
| No. of Pins | 14Pins |
| Product Range | Quad 12-Bit SAR ADCs |
| Automotive Qualification Standard | AEC-Q100 |
| Supply Voltage Min | 2.7V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| Input Channel Type | Pseudo Differential, Single Ended |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | MCP3204-CI/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

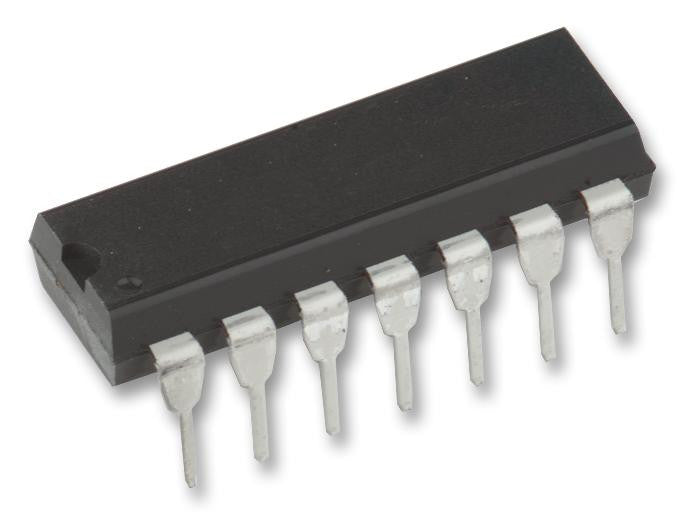

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
