Description

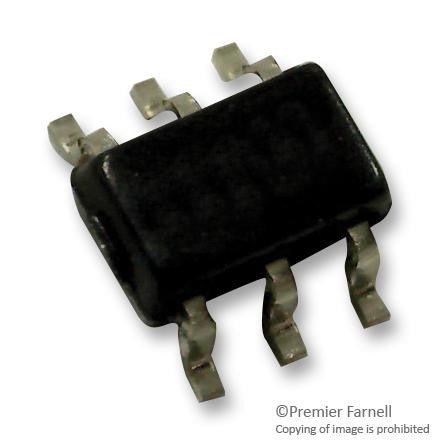

The MAX5468EUT+T is a 32 tap FleaPoT, 2 wire digital potentiometer in 6 pin SOT-23 package. The linear taper digital potentiometer performs the same function as a mechanical potentiometer or a variable resistor. This device consists of a fixed resistor and a wiper contact with 32 tap points that are digitally controlled through a 2 wire serial interface. The MAX5468 are designed to operate as potentiometers. In this configuration, the low terminal of the resistor array is connected to ground (pin 2). Typical applications include LCD screen adjustment, volume control, mechanical potentiometer replacement, gain adjustment and line impedance matching.
- Supply voltage range is 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- Ultra low supply current of 0.3µA
- Glitchless switching between resistor taps
- Power-on reset to midscale
- 2-wire up/down serial interface
- Resistance value is 10Kohm
Applications
Signal Processing
- :
- -40°C
- :
- 32
- :
- 85°C
- :
- Serial
- :
- 6Pins
- :
- ± 25%
- :
- Single
- :
- Single 32-Tap Volatile Digital Pots
- :
- -
- :
- Linear
- :
- 10kohm
- :
- 35ppm/°C
- :
- 2.7V
- :
- Cut Tape
- :
- 5.5V
- :
- SOT-23
- :
- MSL 1 - Unlimited
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 32 |
| Operating Temperature Max | 85°C |
| Control Interface | Serial |
| No. of Pins | 6Pins |
| Resistance Tolerance | ± 25% |
| No. of Pots | Single |
| Product Range | Single 32-Tap Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Linear |
| End To End Resistance | 10kohm |
| Temperature Coefficient | 35ppm/°C |
| Supply Voltage Min | 2.7V |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| Potentiometer IC Case Style | SOT-23 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX5468EUT+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
