Description

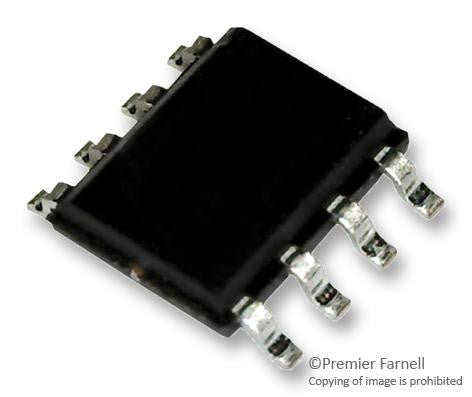

The MCP41010-I/SN is a single channel, volatile digital potentiometer with 8bit resolution in 8 pin SOIC package. The wiper position varies linearly and is controlled via industry standard SPI interface. The MCP41010 has resistance value of 10Kohm, outstanding AC and DC characteristics and consumes less than 1µA during static operation. A software shutdown is provided that disconnects the "A" terminal from resistor stack and simultaneously connects wiper to "B" terminal.
- 256 taps for each potentiometer
- Low power CMOS technology
- Shutdown feature open circuits of all resistors for maximum power savings
- Single supply operation from 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- Wiper resistance of 52ohm
- Differential and integral non linearity of ±1/4LSB
- -3dB bandwidth of 1MHz
- Settling time of 2µS
Applications
Audio, Motor Drive & Control, Communications & Networking, Power Management, Sensing & Instrumentation
Product details
Operating Temperature Min | -40°C |
No. of Steps | 256 |
Operating Temperature Max | 85°C |
Control Interface | Serial, SPI |
No. of Pins | 8Pins |
No. of Pots | Single |
Product Range | Single 256-Tap Volatile Digital Pots |
Automotive Qualification Standard | - |
Track Taper | Linear |
End To End Resistance | 10kohm |
Temperature Coefficient | ± 800ppm/°C |
Supply Voltage Min | 2.7V |
Packaging | Each |
Supply Voltage Max | 5.5V |
Potentiometer IC Case Style | SOIC |
MSL | MSL 1 - Unlimited |
Other details
Brand | MICROCHIP |
Part Number | MCP41010-I/SN |
Quantity | Each |
Technical Data Sheet EN | |
Product Change Notice EN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
