Description

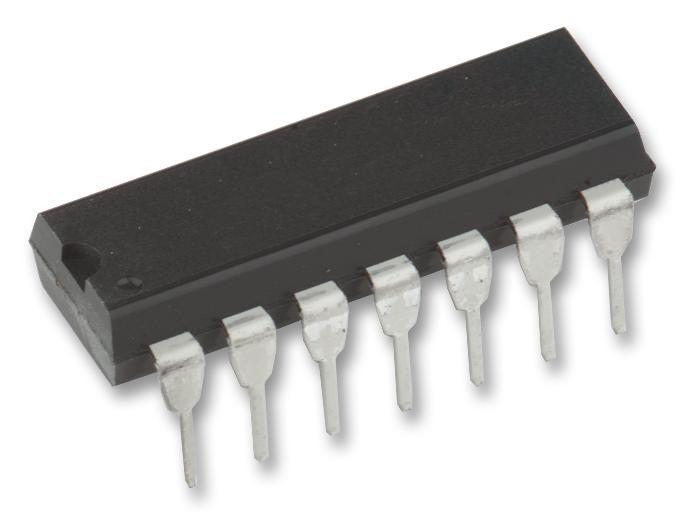

The ATTINY84-20PU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 512B EEPROM, 12 general purpose I/O lines, 32 general purpose working registers, an 2 timers/counters (8-bit/16-bit) with two PWM channels each, internal and external interrupts, 8-channel 10-bit A/D converter, programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, programmable watchdog timer with internal oscillator, internal calibrated oscillator and four software selectable power saving modes. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processor speed.
- High-performance, Low-power AVR� 8-Bit Microcontroller
- Advanced RISC Architecture
- Non-Volatile Program and Data Memories
- debugWIRE On-chip Debug System
- In-system Programmable via SPI Port
- Internal and External Interrupt Sources, Pin Change Interrupt on 12 Pins
- Low-power Idle, ADC Noise Reduction, Standby and Power-down Modes
- Enhanced Power-on Reset Circuit
- Programmable Brown-out Detection Circuit
- Internal Calibrated Oscillator
- On-chip Temperature Sensor
- 0 to 20MHz at 4.5 to 5.5V Speed Grade
- 300�A at 1.8V (1MHz System Clock) Active Mode, 0.1�A at 1.8V Power-down Mode Low Power Consumption
Applications
Building Automation, Consumer Electronics, Industrial, Sensing & Instrumentation, Portable Devices
Product details
| Controller Family/Series | ATtiny |
| Embedded Interface Type | SPI |
| No. of I/O's | 12I/O's |
| Program Memory Size | 8KB |
| No. of Pins | 14Pins |
| Product Range | tinyAVR Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 20MHz |
| Supply Voltage Min | 2.7V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 512Byte |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | ATTINY84-20PU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
