| ₹ 178.83 includes GST and import duties. | |
| B2B customers can avail ₹ 27.27 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The PIC16F54-I/P is a 8-bit fully-static Flash-based CMOS Microcontroller for high-speed automotive and appliance motor control to low-power remote transmitters/receivers. It employs a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle except for program branches which take two cycles. The PIC16F5X delivers performance an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy-to-remember instruction set reduces development time significantly. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external reset circuitry. The PIC16F5X products are supported by a full-featured macro assembler, a software simulator, a development programmer and a full featured programmer.
- Baseline core with 33 instructions and 2 stack levels
- All single-cycle instructions except for program branches which are two cycles
- 25mA Source/sink current I/O
- Low power (100nA) sleep current
- One 8-bit timer (TMR0)
- Watchdog timer (WDT)
- In-Circuit Serial Programming� (ICSP�) capability
- In-Circuit Debugging support
- Programmable code protection
Applications
Automotive, Industrial, Consumer Electronics, Motor Drive & Control
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Controller Family/Series | PIC16F |
| Embedded Interface Type | - |
| No. of I/O's | 12I/O's |
| Program Memory Size | 768Byte |
| No. of Pins | 18Pins |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| CPU Speed | 20MHz |
| Supply Voltage Min | 2V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 25Byte |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16F54-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

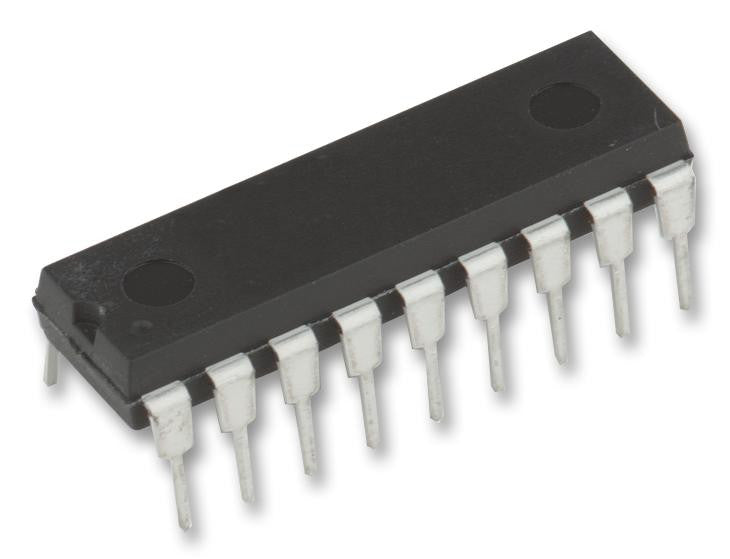

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 175.25 |
| 3-5 | ₹ 173.47 |
| 5-10 | ₹ 169.89 |
| 10+ | ₹ 166.31 |
Bulk discount will be automatically applied during checkout based on quantity.
