Description

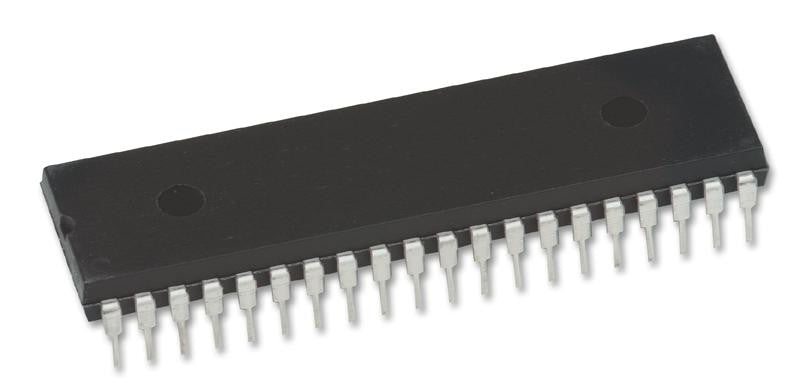

The PIC16C74A-10/P is a PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS one-time programmable (OTP) based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 192bytes of data memory size, 33 general-purpose I/O pins and 8-channel 8-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 10MHz with wide operating voltage of 2.5 to 5.5V.
- 35 (14-bit wide) easy instructions to learn
- 8 level hardware stack
- Interrupt capability
- Power-on reset (POR)
- Power-up timer (PWRT)
- Oscillator start-up timer (OST)
- Watch dog timer (WDT)
- Two 8-bit digital timers
- Programmable code-protection
- Power saving SLEEP mode
- Brown-out reset (BOR)
- One 16-bit digital timers
- 2x Capture/Compare/PWM (CCP)
- Parallel slave port
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Product details
| Controller Family/Series | PIC16C7xx |
| Embedded Interface Type | I2C, SPI, UART |
| No. of I/O's | 33I/O's |
| Program Memory Size | 7KB |
| No. of Pins | 40Pins |
| Product Range | PIC16 Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 10MHz |
| Supply Voltage Min | 2.5V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 6V |
| RAM Memory Size | 192Byte |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16C74A-10/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Product Change Notice EN | |
