Description
The C8051F125-GQ is a precision analog 8-bit ISP Flash Microcontroller featuring high-speed pipelined 8051-compatible CIP-51 core the fastest CPU up to 50MIPS, 12-bit ADC and up to 128kB of on-chip flash with 8kB of RAM. With on-chip VDD monitor, watchdog timer and clock oscillator, the device is truly stand-alone system-on-a-chip solutions. All analog and digital peripherals are enabled/disabled and configured by user firmware. The flash memory can be reprogrammed even in-circuit, providing nonvolatile data storage and also allowing field upgrades of the 8051 firmware.
- Pipelined instruction architecture - Executes 70% of instruction set in 1 or 2 system clocks
- Two analog comparators
- Voltage reference
- VDD Monitor/Brown-out detector
- On-chip debug circuitry facilitates full-speed, nonintrusive In-circuit/In-system debugging
- Provides breakpoints, single-stepping, watchpoints, stack monitor
- Inspect/Modify memory and registers
- Superior performance to emulation systems using ICE-chips, target pods and sockets
- IEEE1149.1 compliant boundary scan
- Hardware SMBus� (I²C� Compatible), SPI� and two UART serial ports available concurrently
- Programmable 16-bit counter/timer array with 6 capture/compare modules
- 5 General purpose 16-bit counter/timers
- Dedicated watchdog timer; bi-directional reset pin
- Internal precision oscillator: 24.5MHz
- Flexible PLL technology
- External oscillator - Crystal, RC, C or clock
- Power saving sleep and shutdown modes
Applications
Industrial
Product details
| Controller Family/Series | C8051F12x |
| Embedded Interface Type | I2C, SPI, UART |
| No. of I/O's | 32I/O's |
| Program Memory Size | 128KB |
| No. of Pins | 64Pins |
| Product Range | C8051F Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 50MHz |
| Supply Voltage Min | 2.7V |
| MCU Case Style | TQFP |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| RAM Memory Size | 8.25KB |
| MSL | - |
Other details
| Brand | SILICON LABS |
| Part Number | C8051F125-GQ |
| Quantity | Each |
| Technical Data Sheet EN |  |

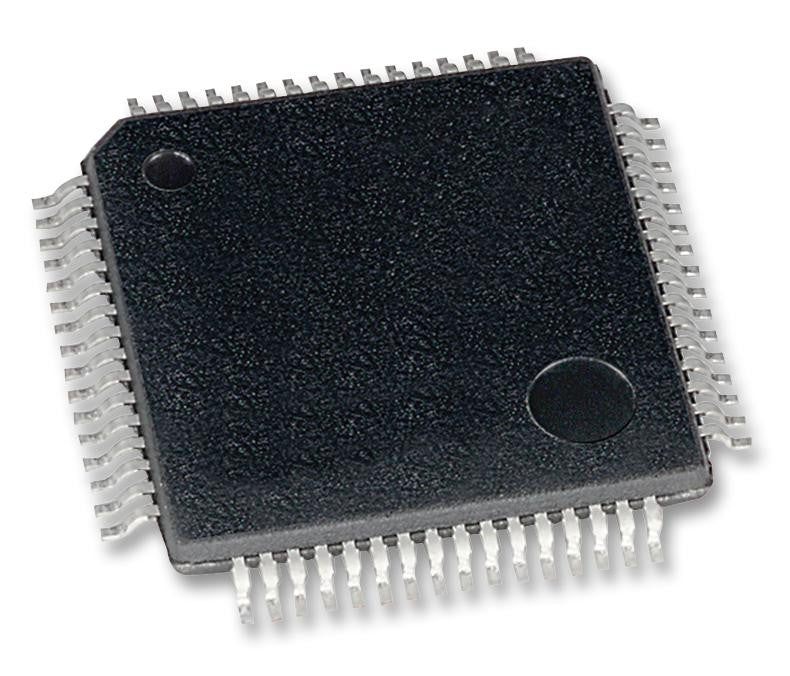

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
