Description
Empress Effects ZEBU Overview

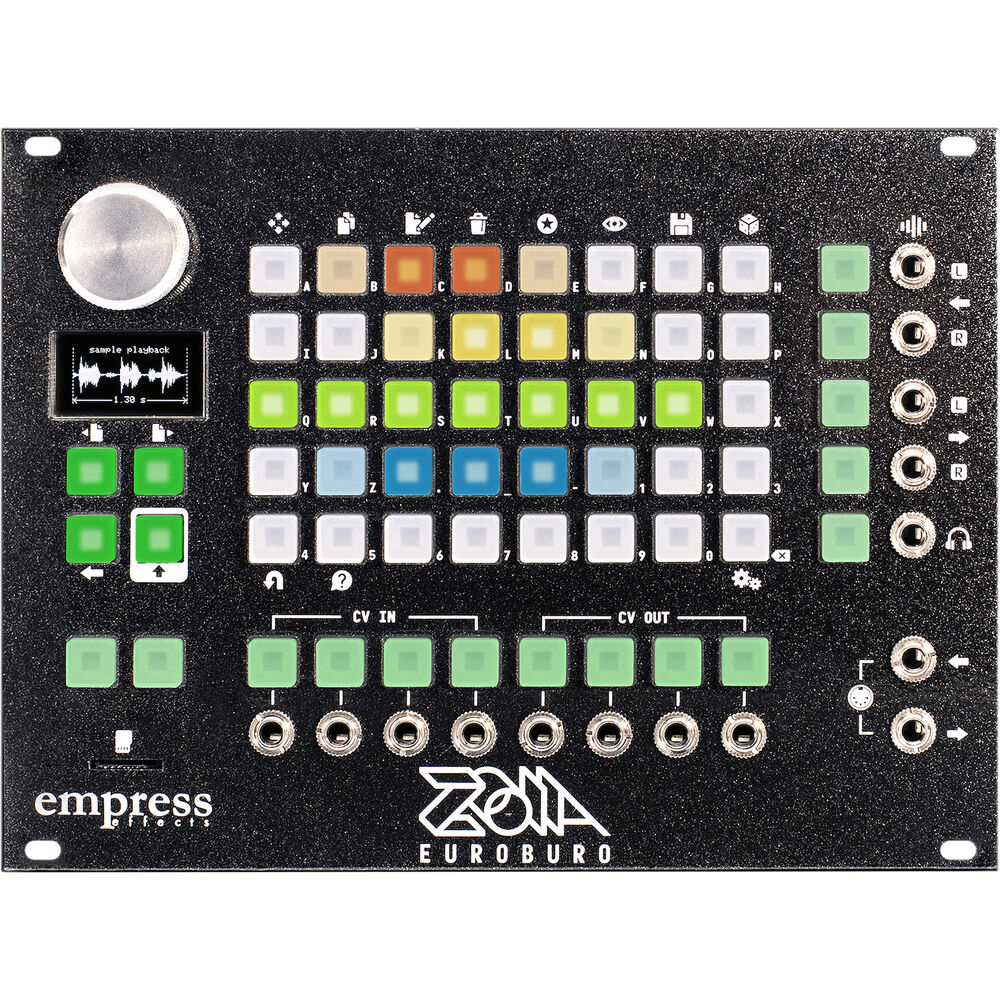

Bring your whole Eurorack setup together with the ZOIA Euroburo Eurorack Module from Empress Effects, an innovative modular effects system ready for Eurorack mounting. ZOIA Euroburo sports a growing list of over 80 modules, which can be internally routed and combined in any way you want, from custom FX paths to from-scratch effects, synths, and controllers.
ZOIA Euroburo comes loaded with over 20 ready-made effects modules to make things easy before you're ready to build your own, and you can save up to 64 unique patches for instant recall and switching between your own instruments, FX chains, individual effects, or external audio setup. With the 3.5mm MIDI jacks, you can connect to a huge range of external devices to add MIDI control to your Eurorack and internal modular system, allowing you to control your modules and experiment endlessly. The ZOIA includes a microSD card for storing and loading your patches and two 3.5mm to MIDI 5-pin DIN adapter plugs.
A Central Brain for Your Eurorack System
ZOIA Euroburo acts like a central brain for your Eurorack nervous system, tying together all your modules, both external and internal. Stereo 3.5mm audio jacks let you easily patch in and out of ZOIA, while the eight CV inputs and outputs allow for you to not only create internal synth, FX, and controller modules, but connect those modules with your external Eurorack modules for a truly endless array of sonic possibilities. Building your ideal Eurorack setup is now a whole lot easier, as any missing components can be loaded up internally and communicate with your external synth, filter, and FX modules, and even non-CV devices via 3.5mm MIDI.
Connections
- 8 CV inputs and 8 CV outputs, each with dedicated control buttons
- All CV connections support -5 to 5, 0 to 5, and 0 to 10V
- 3.5mm stereo audio inputs and outputs
- 3.5mm headphone output
- 3.5mm TRS MIDI I/O
Nearly Unlimited Sound Creation
With a constantly growing list of over 80 modules and the ability to route and connect your modules together for any kind of internal configuration you can dream of, the creative potential with ZOIA is enormous. Create effects and synthesizers from the ground up, connecting together oscillators, VCAs, modulations, and much more, use whole effect or synth modules (for example, just plop down a phaser when you need it), or download patches created by other ZOIA users as a springboard for your own creativity. Modules are separated into five categories:
- Interface modules (I/O and control),
- Analysis modules (followers and detectors)
- Audio modules (filters, oscillators, amps, mixers, loopers, etc.)
- CV modules (LFO, ADSR, sequencer, CV processing, quantizer, etc.)
- Effect modules (EQ, delay, modulation, dynamics, reverb, etc.)
Pristine Sound Quality
With 24-bit / 48 kHz sampling and 32-bit internal DSP, ZOIA Euroburo provides high-performance digital audio for the demanding creator, capturing every nuance of your instruments tone, whether it be a guitar, bass, synthesizer, drum machine, or even samples. And with a low-noise signal path that maintains a signal-to-noise ratio greater than 105 dB.
Built-In Help
Almost like having a built in manual, the dedicated help function will give you quick information at a glance about ZOIA Euroburo's various modules and options. This makes it much less intimidating to dive right into ZOIA's module building system. All information is displayed on a bright high-resolution OLED display for easy editing.
UPC: 850040850352
Items Included
- Empress Effects ZOIA Euroburo Digital Multi-FX Eurorack Module (34 HP)
- microSD Card
- 2 x 3.5mm to MIDI 5-Pin DIN Adapter
-
Limited 2-Year Manufacturer Warranty
Registration Extension: 2-Year
Additional Resources
Firmware Updates
v4.0, Aug ' 24
Empress Effects ZEBU Specs
Key Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Unlimited (Poly-Chaining Capable with Multiple Units)
|
| Audio I/O |
2x 1/4" Input
2x 1/4" Output |
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Input (DIN 5-Pin Adapter Included)
1x 1/8" / 3.5 mm TRS Output (DIN 5-Pin Adapter Included) |
| CV/Gate I/O |
1x 1/4" CV Input
|
| Patch Points |
No
|
| Horizontal Pitch |
34 HP
|
General
| Item Type |
Desktop Synth Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
3x Switch
|
| Number of Pads |
No
|
| Display |
OLED
|
Sounds
| Favorites Recall |
64x Quick Recall Slot
|
| Maximum Polyphony |
Unlimited (Poly-Chaining Capable with Multiple Units)
|
| Built-In Effects |
Reverb: Hall, Plate, Room
Delay: Ping-Pong Modulation: Chorus, Flanger, Phaser, Ring Modulator, Tremolo, Vibrato EQ Amp Simulator |
| Performance Functions |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
1x Fixed (FM)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
Type: Band-Pass, Multi-Filter |
| LFOs |
Number of LFOs: 1
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
| Supported MIDI Standards |
GM
|
Connectivity
| Audio I/O |
2x 1/4" Input
2x 1/4" Output |
| Pedal Support |
No
|
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Input (DIN 5-Pin Adapter Included)
1x 1/8" / 3.5 mm TRS Output (DIN 5-Pin Adapter Included) |
| CV/Gate I/O |
1x 1/4" CV Input
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type)
|
| Bluetooth |
No
|
Audio Performance
| Frequency Response |
10 Hz to 23.4 kHz
|
| I/O Impedance |
Inputs:
> 1 Megohm Outputs: 100 Ohms |
| Maximum Input Level |
0.5 dBu (No Pad)
5.7 dBu (6dB Pad) 10.8 dBu (12dB Pad) |
| Maximum Output Level |
16.2 dBu
|
| Dynamic Range |
105.5 dBA
|
| THD |
0.22%
|
Compatibility
| Included Software |
No
|
| Mobile App Compatible |
No
|
Power
| Power Requirements |
AC/DC Power Adapter (Not Included)
|
| AC/DC Power Adapter |
9 VDC (Not Included)
|
Physical
| Color |
Black
|
| Horizontal Pitch |
34 HP
|
| Included Accessories |
microSD Card
|
| Dimensions |
5.7 x 3.7 x 2.6" / 144.8 x 94 x 66 mm
|
| Weight |
1.5 lb / 0.7 kg
|
Packaging Info
| Package Weight |
1.53 lb
|
| Box Dimensions (LxWxH) |
8.1 x 6.6 x 2.4"
|
