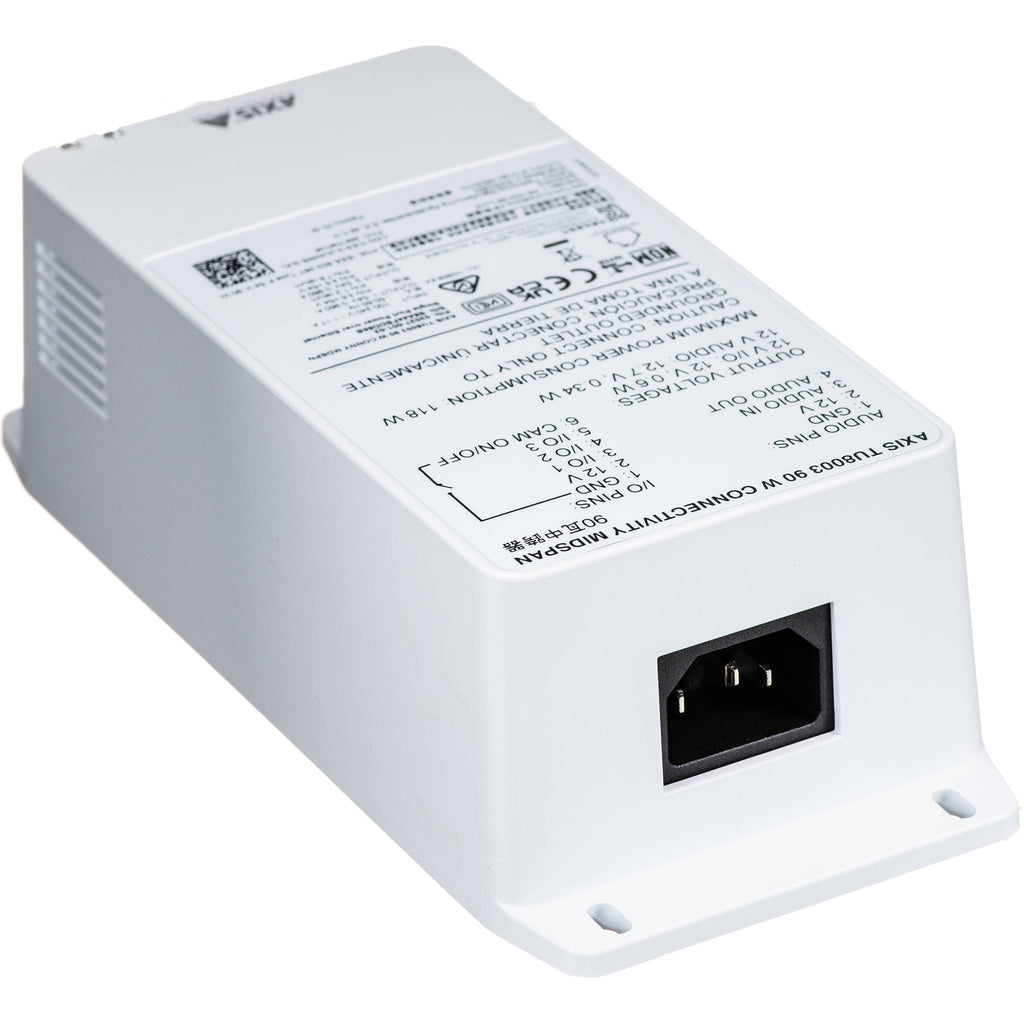

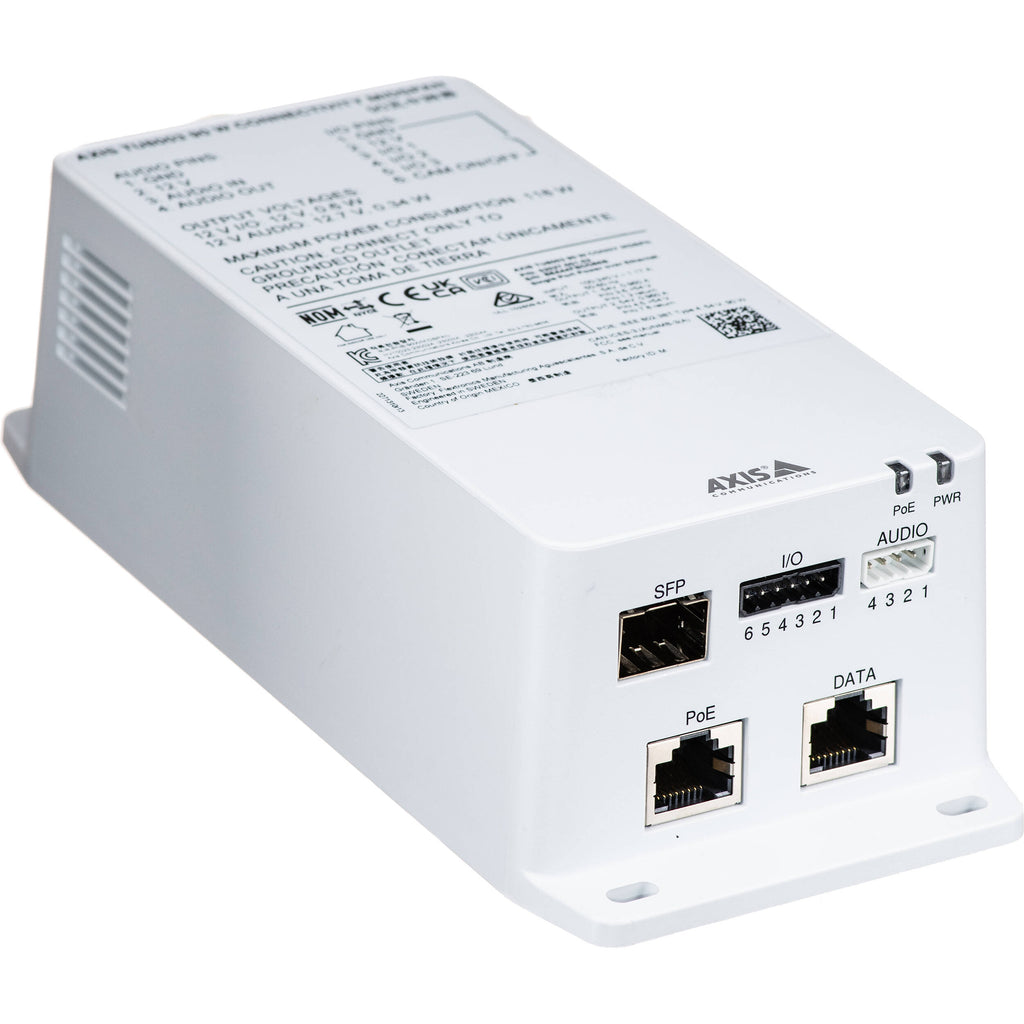

Axis Communications TU8003 Overview
Suitable for network or fiber installations, the TU8003 90W Connectivity Midspan from Axis Communications powers PoE devices such as PTZ cameras. This unit will support a device that require up to 90W of PoE. It complies with IEEE 802.3bt standard and delivers 1000 Mb/s passthrough data rates.
Thanks to portcast technology, the TU8003 utilizes the camera's IP address to provide integrated audio and I/O connectivity that enables audio and video to be sent over a single stream over the network without a VMS license.
Unit automatically detects Axis PoE/PoE+ and Hi-PoE devices and supplies inline power
Can be used with a PoE splitter for a network video product without built-in PoE support
External power control
Shielded RJ45 connectors
Mountable on a wall, shelf, or DIN rail
Can be used outdoors with the Axis T91G61 Wall Mount (available seperately)
LED indicators for status
PVC free
Items Included
- Axis Communications TU8003 90W Connectivity Midspan
- Owner Authentication Key
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications TU8003 Specs
Key Specs
| Inputs/Outputs |
2x RJ45
1x SFP 1x C14 2x Block |
| Shielded I/O |
Yes
|
| PoE Power |
54 VDC, 90 W
|
General
| Inputs/Outputs |
2x RJ45
1x SFP 1x C14 2x Block |
| Shielded I/O |
Yes
|
| Supported IEEE Standards |
802.3bt Type 4 (PoE++ 100 W)
|
Electrical
| PoE Power |
54 VDC, 90 W
|
| Power Consumption |
118 VA
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Environmental Use |
Indoor
|
| Operating Conditions |
-13 to 140°F / -25 to 60°C at 10 to 85% Humidity
|
| Storage Conditions |
-40 to 149°F / -40 to 65°C at 5 to 95% Humidity
|
| Certifications |
TAA, UL, cUL, BIS, CE, KC, VCCI, RCM, EN, RCM, FCC, CAN/CSA, IEC/EN/UL, IEC/EN, RoHS, EU, REACH
|
| LED Indicators |
Yes
|
| Material of Construction |
Polycarbonate
|
| Wall Mountable |
No
|
| Cable Length |
5.9' / 1.8 m
|
| Dimensions |
7.2 x 3.1 x 2.2" / 184.0 x 80.0 x 56.0 mm
|
| Weight |
0.9 lb / 415 g
|
Packaging Info
| Package Weight |
1.335 lb
|
| Box Dimensions (LxWxH) |
8.9 x 5.9 x 2.4"
|
