Description

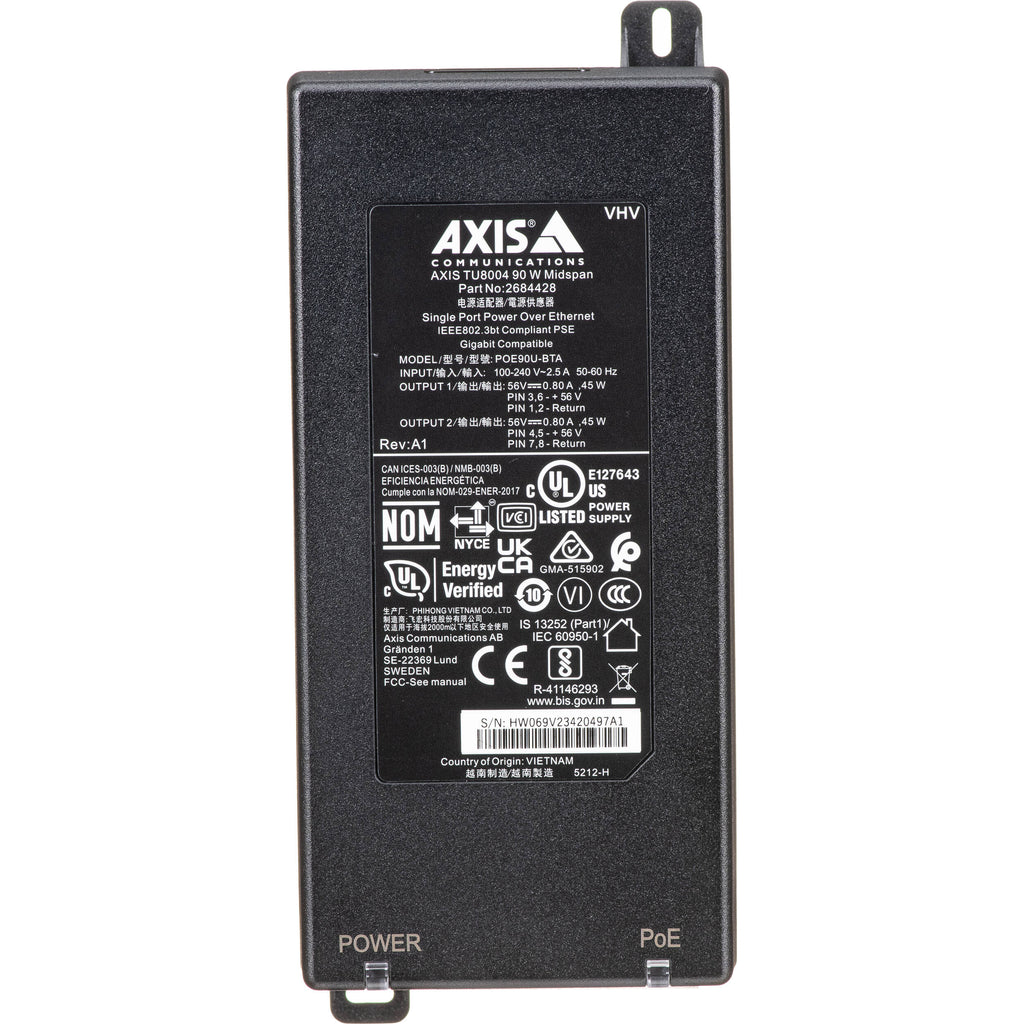

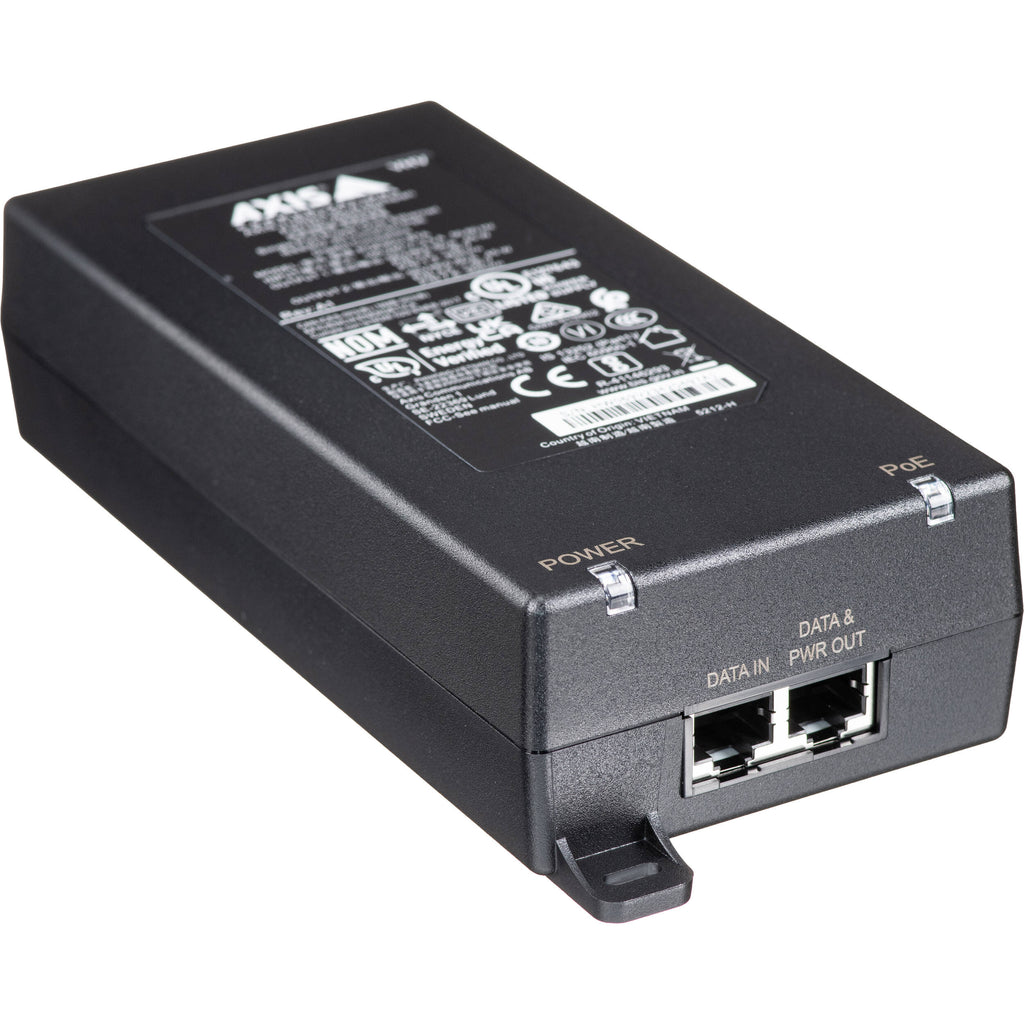

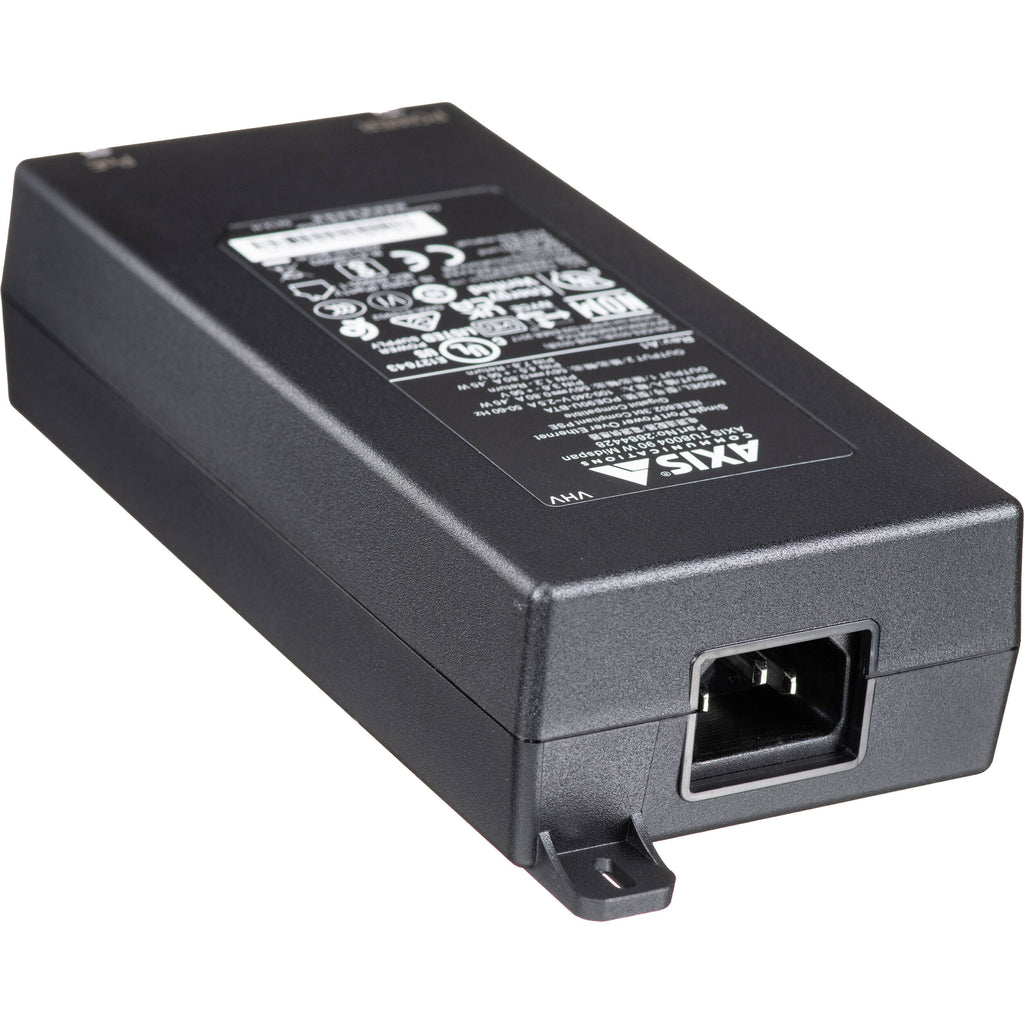

Axis Communications TU8004 Overview
Power PoE/PoE+/PoE++ and high PoE devices such as IP cameras with the black TU8004 90W Midspan from Axis Communications. This unit will support devices that require up to 90W of PoE power. It complies with 802.3af/at/bt standards and supports 5000 Mb/s passthrough data rates. The Axis TU6011 mains cable is required for operation (sold separately).
Unit automatically detects PoE/PoE+/PoE++ and high PoE devices and supplies inline power
Can be used with a PoE splitter for a network video product without built-in PoE support
Can be mounted on a wall, shelf, or DIN rail with Axis T91A03 DIN Rail Clip A
PVC and halogen free
Items Included
- Axis Communications TU8004 90W Midspan
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications TU8004 Specs
Key Specs
| Inputs/Outputs |
2x RJ45 Gigabit Ethernet
1x C14 |
| Shielded I/O |
Yes
|
| PoE Power |
57 VDC, 90 W
|
General
| Inputs/Outputs |
2x RJ45 Gigabit Ethernet
1x C14 |
| Shielded I/O |
Yes
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3bt Type 4 (PoE++ 100 W)
|
Electrical
| PoE Power |
57 VDC, 90 W
|
| Power Consumption |
91.7 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Operating Conditions |
-4 to 149°F / -20 to 65°C at 10 to 90% Humidity
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C at 5 to 90% Humidity
|
| Certifications |
IEC/EN/UL, CCC, EN, FCC, RCM, VCCI, IEC
|
| LED Indicators |
Yes
|
| Material of Construction |
Plastic
|
| Wall Mountable |
Yes
|
| Dimensions |
6.5 x 3.1 x 1.7" / 166.0 x 80.0 x 44.0 mm
|
| Weight |
1.1 lb / 500 g
|
Packaging Info
| Package Weight |
1.2 lb
|
| Box Dimensions (LxWxH) |
8.6 x 4.5 x 2"
|
