| ₹ 31890.0 includes GST and import duties. | |
| B2B customers can avail ₹ 4863.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
HPE Networking Instant On 1430 Overview

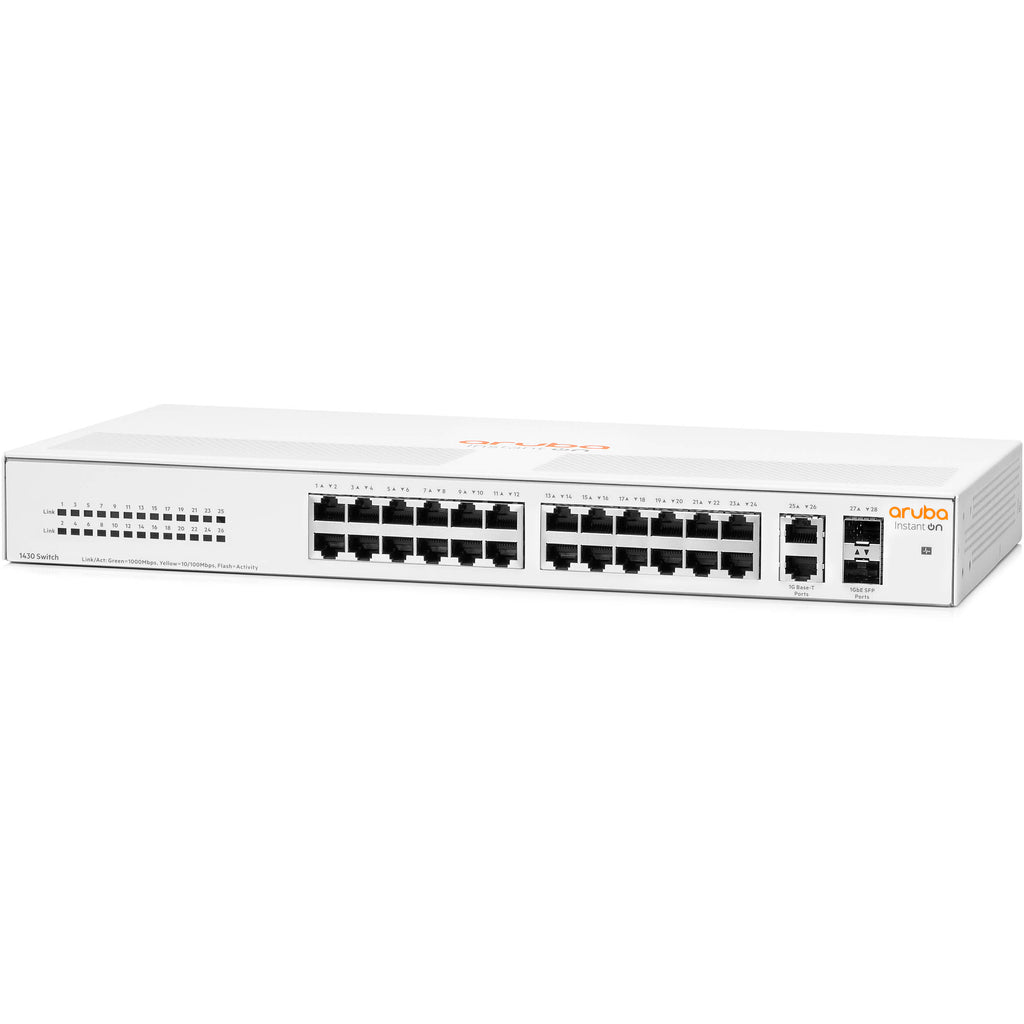

Streamline Ethernet traffic for small business applications with the Instant On 1430 26-Port Unmanaged Switch with SFP from HPE Networking. This sports 26 RJ45 Gigabit Ethernet and two Gigabit SFP ports. Providing a 56 Gbps switching capacity and up to 41.68 Mpps of throughput, the Instant On 1430 utilizes 32Mb of flash memory and a 12Mb packet buffer. A rack mountable design allows for easy installation to server racks using the included brackets; this switch also supports tabletop, under-table, and wall mounting. Please note, the switch should not be mounted upside-down.
Quality of Service ensures the priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification. Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers. Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
Items Included
- HPE Networking Instant On 1430 26-Port Unmanaged Switch with SFP
- Power Adapter
- Rack Mounting Hardware
- Limited Lifetime Warranty
Additional Resources
HPE Networking Instant On 1430 Specs
| Inputs/Outputs |
26x RJ45 Gigabit Ethernet
2x SFP Gigabit Ethernet WAN |
| Stackable |
No
|
| Switching Bandwidth |
56 Gb/s
|
| Stackable |
No
|
| Layer Services Supported |
Layer 2
|
| Jumbo Frames Support |
9216 Bytes
|
| MAC Address Table Size |
8K
|
| Latency |
2.9 to 5.2 µs
|
| Forwarding Rate |
41.68 Mpps
|
| Switching Bandwidth |
56 Gb/s
|
| Packet Buffer |
12 Mb
|
| Power Draw |
16.4 W (Max)
8.0 W (Idle) |
| Power Supply Type |
External
|
| Certifications |
IEC/EN 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC/EN 62368-1, 2nd. & 3rd. Ed., UL 62368-1, 3rd. Ed., CAN/CSA C22.2 No. 62368-1, 3rd. Ed., IEC/EN 60825- 1:2014 Class 1, EN 55032:2015/ CISPR 32, Class A, FCC CFR 47 Part 15: 2018, Class A, ICES-003, Class A, VCCI-32, Class A, EN 55035, CISPR 35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-3-2, IEC/EN 61000-3-3
|
| Operating Conditions |
32 to 72°F / 0 to 40°C at 15 to 95% Humidity
|
| Storage Conditions |
-40 to 158°F / -40 to 70°C at 15 to 90% Humidity
|
| Cooling System |
Passive
|
| Mean Time Between Failures (MTBF) |
1.5 Million Hours
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 RU
|
| Dimensions |
15.28 x 8.86 x 1.73" / 38.81 x 22.5 x 4.39 cm
|
| Weight |
5 lb / 2.3 kg
|
| Package Weight |
7.295 lb
|
| Box Dimensions (LxWxH) |
20.2 x 13.1 x 4.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 31252.2 |
| 3-5 | ₹ 30933.3 |
| 5-10 | ₹ 30295.5 |
| 10+ | ₹ 29657.7 |
Bulk discount will be automatically applied during checkout based on quantity.
