| ₹ 17565.0 includes GST and import duties. | |
| B2B customers can avail ₹ 2678.66 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

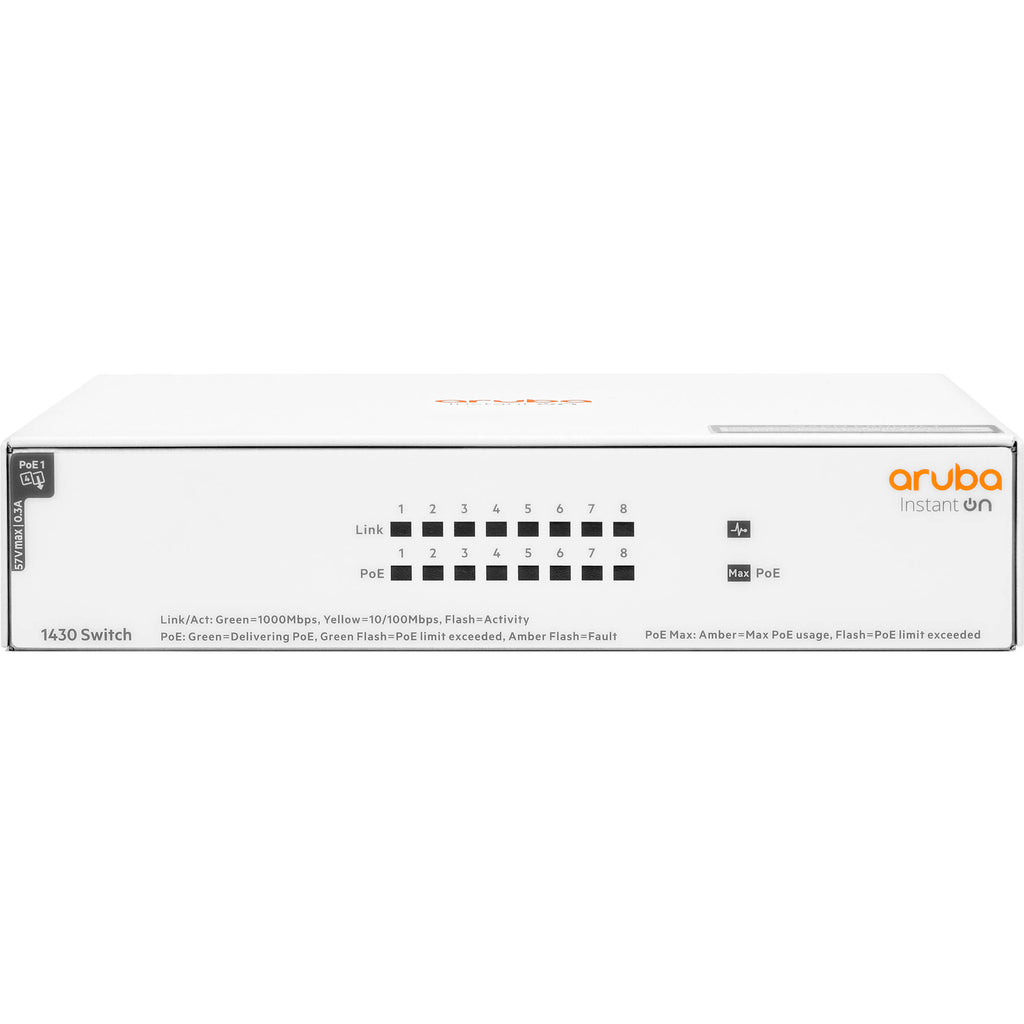

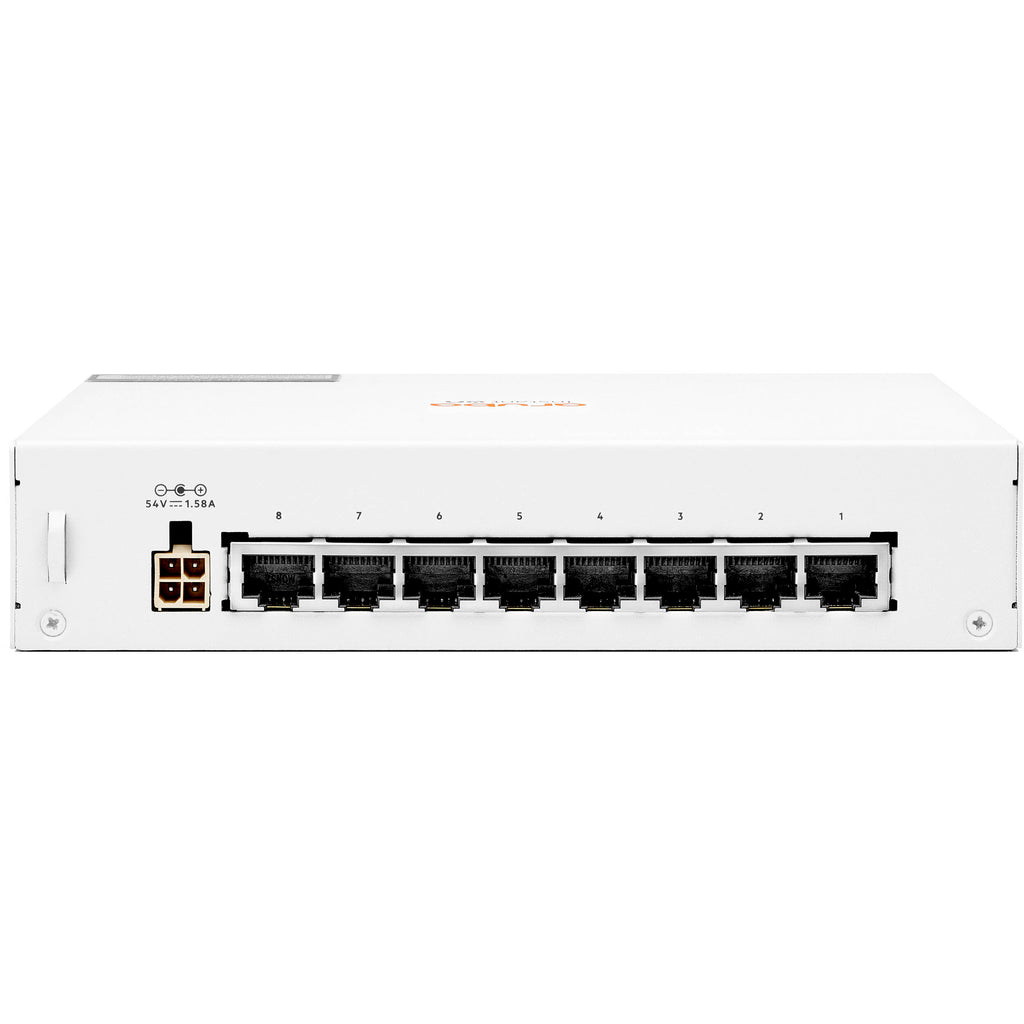

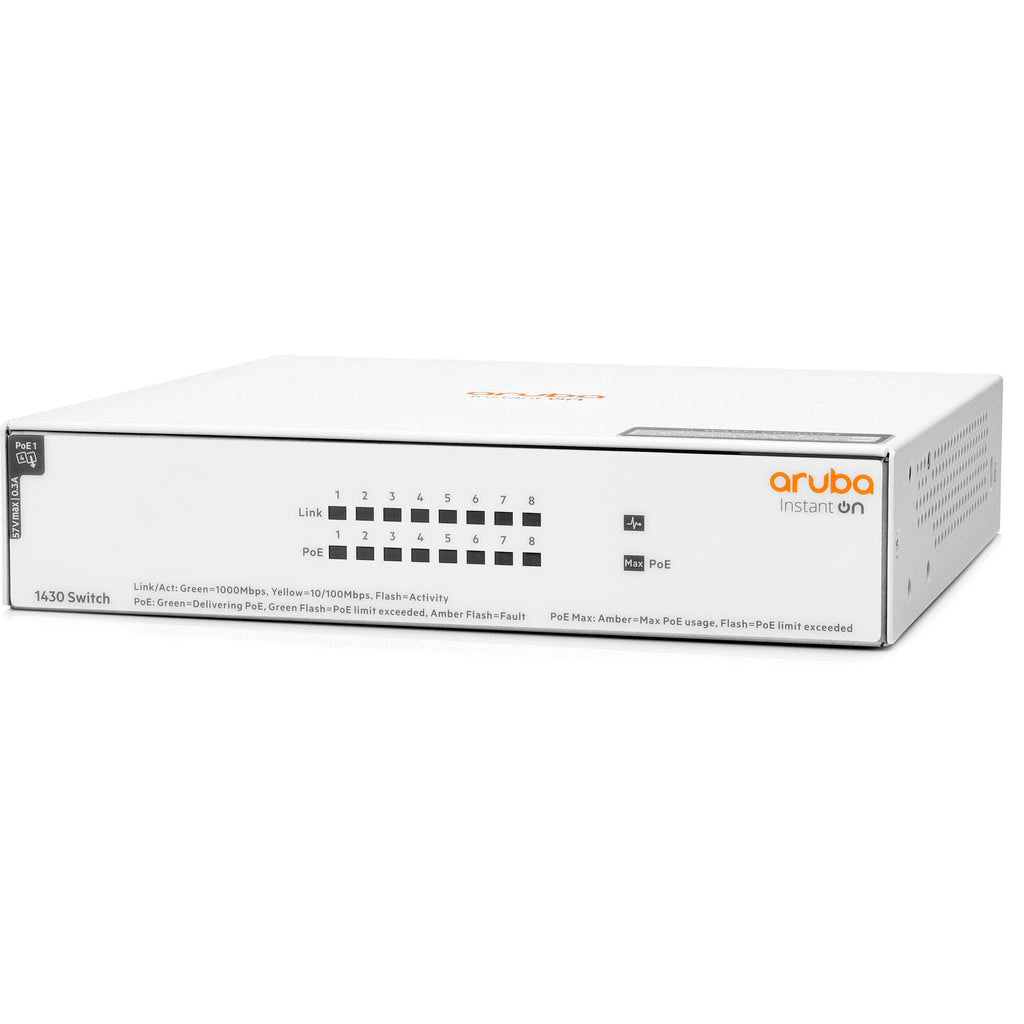

HPE Networking Instant On 1430 Overview
Streamline Ethernet traffic for small business applications with the Instant On 1430 8-Port PoE Unmanaged Switch from HPE Networking. This sports eight RJ45 Gigabit Ethernet ports. Connect to a range of peripherals including access points, surveillance cameras, and VoIP phones with up to 30W of PoE power delivery per port and a power budget of 64W. Providing a 16 Gbps switching capacity and up to 11.90 Mpps of throughput, the Instant On 1430 utilizes 128kb of EEPROM memory and a 2Mb packet buffer. A rack mountable design allows for easy installation to server racks using the included brackets; this switch also supports tabletop, under-table, and wall mounting. Please note, the switch should not be mounted upside-down.
Quality of Service ensures the priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification. Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers. Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
Items Included
- HPE Networking Instant On 1430 8-Port PoE Unmanaged Switch
- Power Adapter
- Rack Mounting Hardware
- Limited Lifetime Warranty
Additional Resources
HPE Networking Instant On 1430 Specs
| Inputs/Outputs |
8x RJ45 Gigabit Ethernet PoE++ (100 W, 802.3bt Type 4)
|
| Stackable |
No
|
| Switching Bandwidth |
16 Gb/s
|
| PoE Power Budget |
64 W
|
| Stackable |
No
|
| Layer Services Supported |
Layer 2
|
| Jumbo Frames Support |
9216 Bytes
|
| MAC Address Table Size |
8K
|
| Latency |
1.8 to 2.7 µs
|
| Forwarding Rate |
11.9 Mpps
|
| Switching Bandwidth |
16 Gb/s
|
| Packet Buffer |
2 Mb
|
| PoE per Port |
30 W
|
| PoE Power Budget |
64 W
|
| Power Draw |
90.00 W (Max)
4.1 W (Idle) |
| Input Power |
54 VDC at 1.58 A
120 to 240 VAC, 50 / 60 Hz at 2 A |
| Power Supply Type |
External
|
| Certifications |
IEC/EN 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC/EN 62368-1, 2nd. & 3rd. Ed., UL 62368-1, 3rd. Ed., CAN/CSA C22.2 No. 62368-1, 3rd. Ed., IEC/EN 60825- 1:2014 Class 1, EN 55032:2015/ CISPR 32, Class A, FCC CFR 47 Part 15: 2018, Class A, ICES-003, Class A, VCCI-32, Class A, EN 55035, CISPR 35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-3-2, IEC/EN 61000-3-3
|
| Operating Conditions |
32 to 72°F / 0 to 40°C at 15 to 95% Humidity
|
| Storage Conditions |
-40 to 158°F / -40 to 70°C at 15 to 90% Humidity
|
| Cooling System |
Passive
|
| Mean Time Between Failures (MTBF) |
1.1 Million Hours
|
| Indicator Lights |
Yes
|
| Rack Mountable |
No
|
| Dimensions |
6.97 x 5.91 x 1.46" / 17.7 x 15.01 x 3.71 cm
|
| Weight |
1.7 lb / 0.8 kg
|
| Package Weight |
5.015 lb
|
| Box Dimensions (LxWxH) |
13.1 x 12.2 x 2.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 17213.7 |
| 3-5 | ₹ 17038.05 |
| 5-10 | ₹ 16686.75 |
| 10+ | ₹ 16335.45 |
Bulk discount will be automatically applied during checkout based on quantity.
