Description
HPE Networking Instant On 1960 Overview

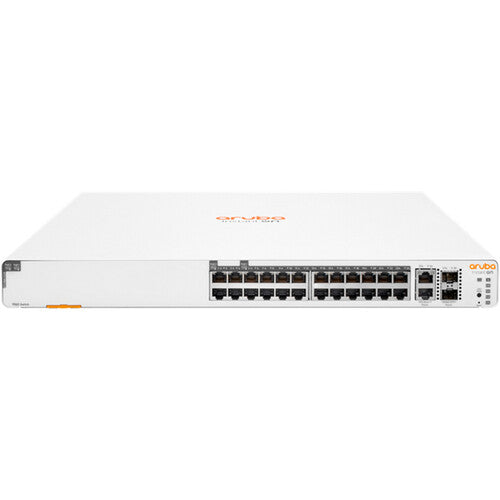

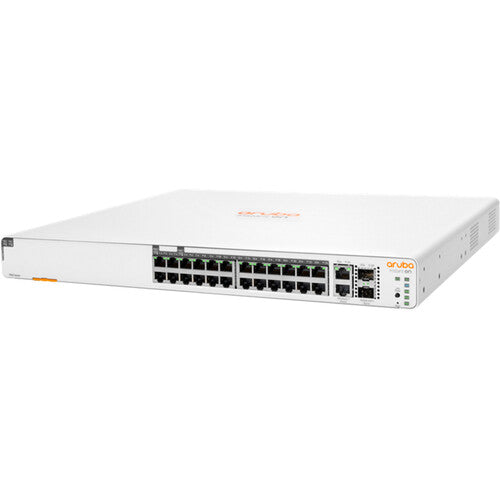

The HPE Networking Instant On 1960 24G 2XGT 24-Port Gigabit PoE++ Compliant Managed Network Switch is an advanced, smart-managed, fixed configuration Gigabit stackable switch designed for small and growing businesses that is easy to deploy. Equipped with 24 60W PoE++ Gigabit Ethernet ports with a 370W budget, this switch is designed to scale as your business grows, making adding more employees, devices, and applications simple. Two 10G RJ45 uplink ports are also available alongside two 10G SFP+ fiber slots.
With a 128 Gb/s switching capacity and 95 Mpps forwarding rate, the HPE Networking Instant On 1960 switch is made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal. A 2-post rack mount kit is included.
Items Included
- HPE Networking Instant On 1960 24G 2XGT 24-Port Gigabit PoE++ Compliant Managed Network Switch with SFP+
- Power Cable
- 2-Post Rack Mount Kit
- Limited Lifetime Warranty
Additional Resources
HPE Networking Instant On 1960 Specs
| Inputs/Outputs |
24x RJ45 Gigabit Ethernet PoE++ (60 W, 802.3bt Type 3)
2x RJ45 10 GbE WAN 2x SFP+ 10 GbE WAN |
| Stackable |
No
|
| Switching Bandwidth |
128 Gb/s
|
| PoE Power Budget |
370 W
|
| Stackable |
No
|
| Layer Services Supported |
Layer 2
|
| Supported Protocols |
Auto-MDIX/MDI
Auto-VoIP IGMP Snooping IPv4 IPv6 Link Aggregation RADIUS |
| MAC Address Table Size |
16K
|
| Security Features |
DoS Attack Prevention
RADIUS Authentication |
| Latency |
1.1 to 4.4 µs
|
| Forwarding Rate |
95 Mpps
|
| Switching Bandwidth |
128 Gb/s
|
| CPU |
Single-Core: Up to 800 MHz Cortex A9
|
| PoE per Port |
30 to 60 W
|
| PoE Power Budget |
370 W
|
| Power Draw |
480.00 W (Max)
80.00 W (Idle) |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 0.4 to 5 A
|
| Power Supply Type |
Internal
|
| Certifications |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 15 to 95% Humidity
|
| Storage Conditions |
-40 to 158°F / -40 to 70°C at 15 to 90% Humidity
|
| Noise Level |
0.0 dB
|
| Cooling System |
Passive
|
| Material of Construction |
Metal
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 RU
|
| Dimensions |
17.4 x 13.8 x 1.7" / 442.5 x 350.5 x 43.9 mm
|
| Weight |
8.6 lb / 3.9 kg
|
| Package Weight |
15 lb
|
| Box Dimensions (LxWxH) |
23 x 20 x 5"
|
