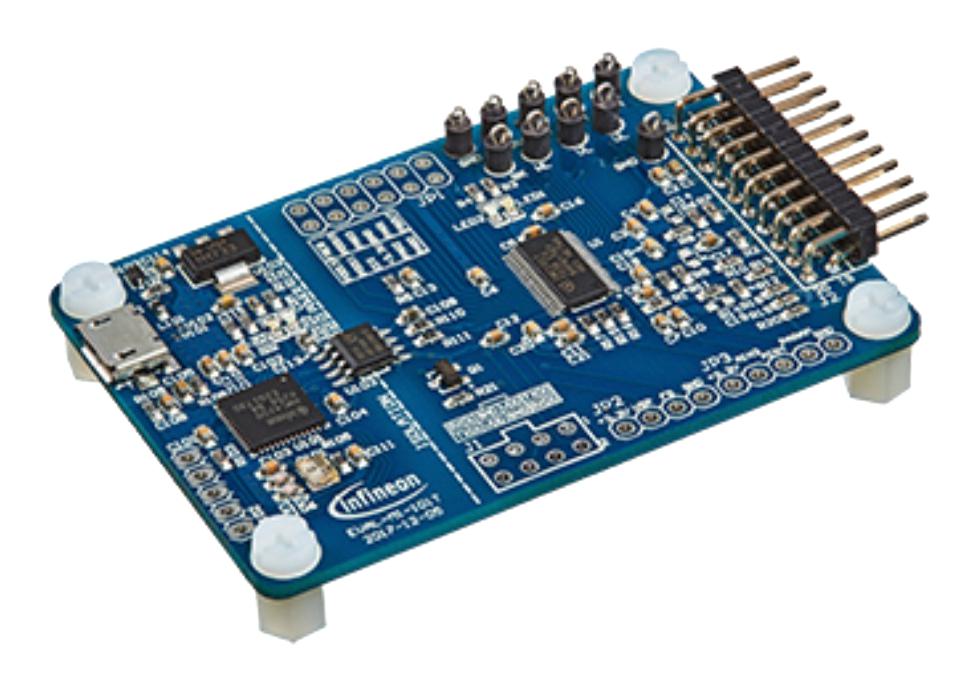

EVAL-M1-101T is an evaluation control board for motor control applications. It is powered by IMC101T-T038 iMOTION� Motor Control IC featuring advanced Motor Control Engine (MCE), that enables state-of-the-art Sensorless Field Oriented Control (FOC) without need for any coding. IMC101T-T038 is a part of the iMOTION� IMC100 series, which is the next generation of well established iMOTION� motor control IC platform dedicated to field oriented control of PMSM (BLDC) motors.
- Complete kit for running any permanent magnet motor via sensorless sinusoidal control
- 3.3V (default) or 5V VDD power supply
- Micro-USB connector and on-board debugger isolated by digital isolator
- Capable of 3-phase and type 3 of 2-phase modulation
- PCB size is 65mm x 45mm
Other details
| Brand |
INFINEON |
| Part Number |
EVALM1101TTOBO2 |
| Quantity |
Each |
| User Manual EN |
 |
