Renesas RTK0EML2C0S01020BJ Evaluation Kit RAJ306010 Motor Control DC Brushless New

BLDC motor control evaluation system for RAJ3060xx motor control Ics. This is a kit for evaluating BLDC motor system using the RAJ306010 motor control IC. RAJ306010 is initially equipped with a sample code for 120 degree conduction control using a hall IC and a basic evaluation of motor control can be performed simply by connecting a 24V DC power supply and the attached motor. In addition, it is possible to connect and evaluate a motor and MOSFET prepared by user. Reference firmware has already been written on the RAJ306010. By connecting the attached small motor to the board and supplying power, evaluation can be start immediately. The board is small and easy to operate, but since switches, potentiometers, LEDs and thermistors are mounted, their functions can be used by using the user program By setting the switching pin, it is possible to select mounted MOSFET and external MOSFET.

• Easy to start the motor control evaluation with RAJ306010
• High expandability and operability by small board (about B6 size: 148 × 125mm)
• Connectable to the external MOSFET board
• Various sample codes for the basic motor drive
• Desk top lab ICS tool support (ICS: PC tool for waveform display)
• CS is a tool for monitoring and changing global variables in operation from a PC

Contents

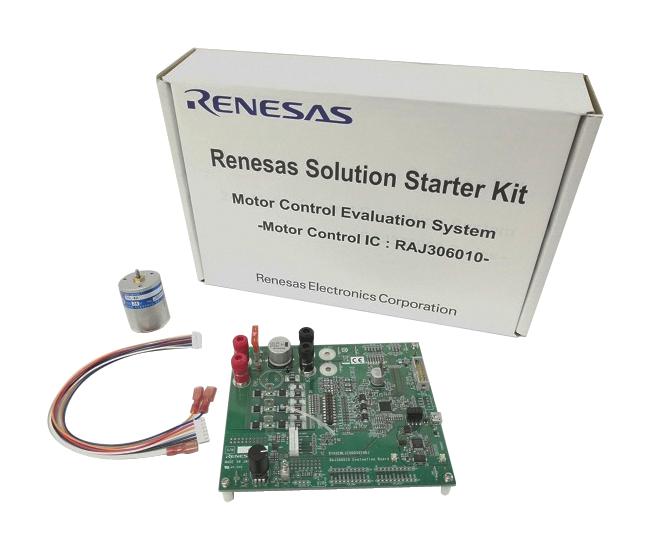

Board with RAJ306010 mounted, Small 24V motor, Connecting cable.

Other details

Brand	RENESAS
Part Number	RTK0EML2C0S01020BJ
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
