Description
AIDA Imaging USBD-2PTZX18B-SPLYNDI4K Overview

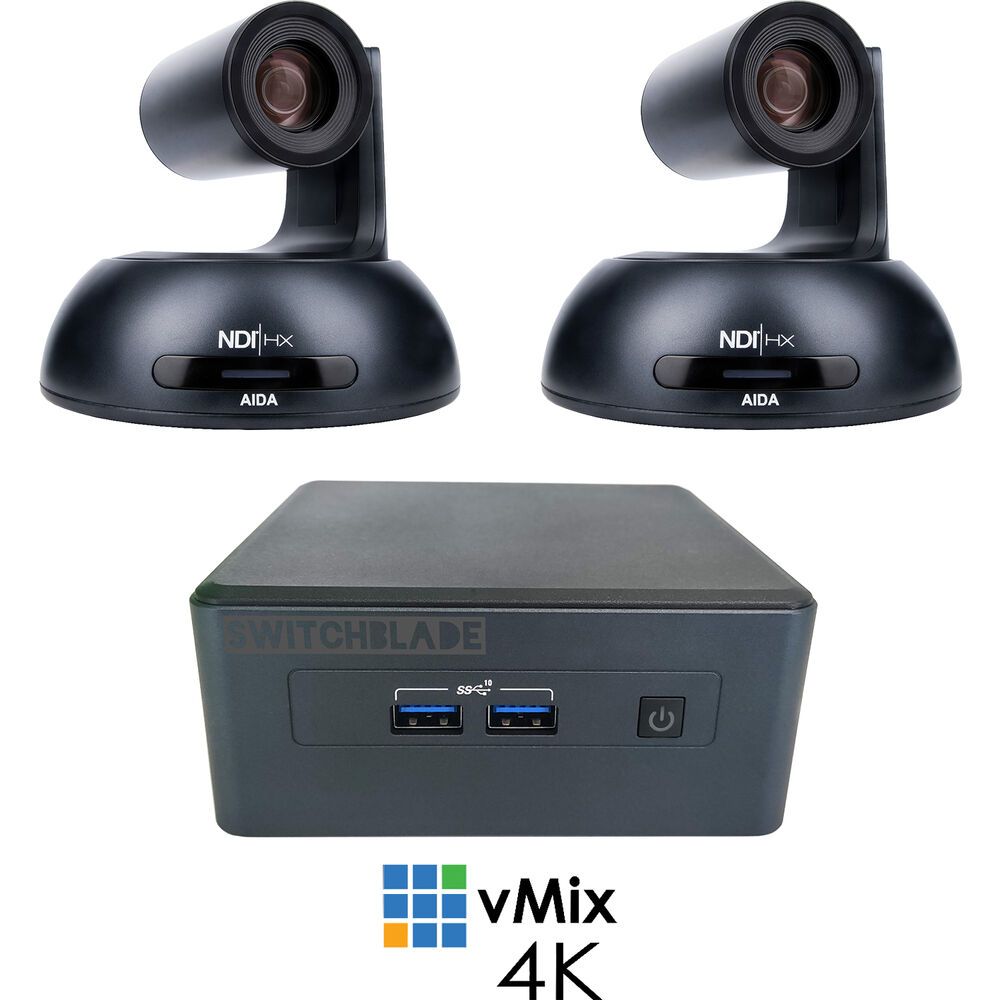

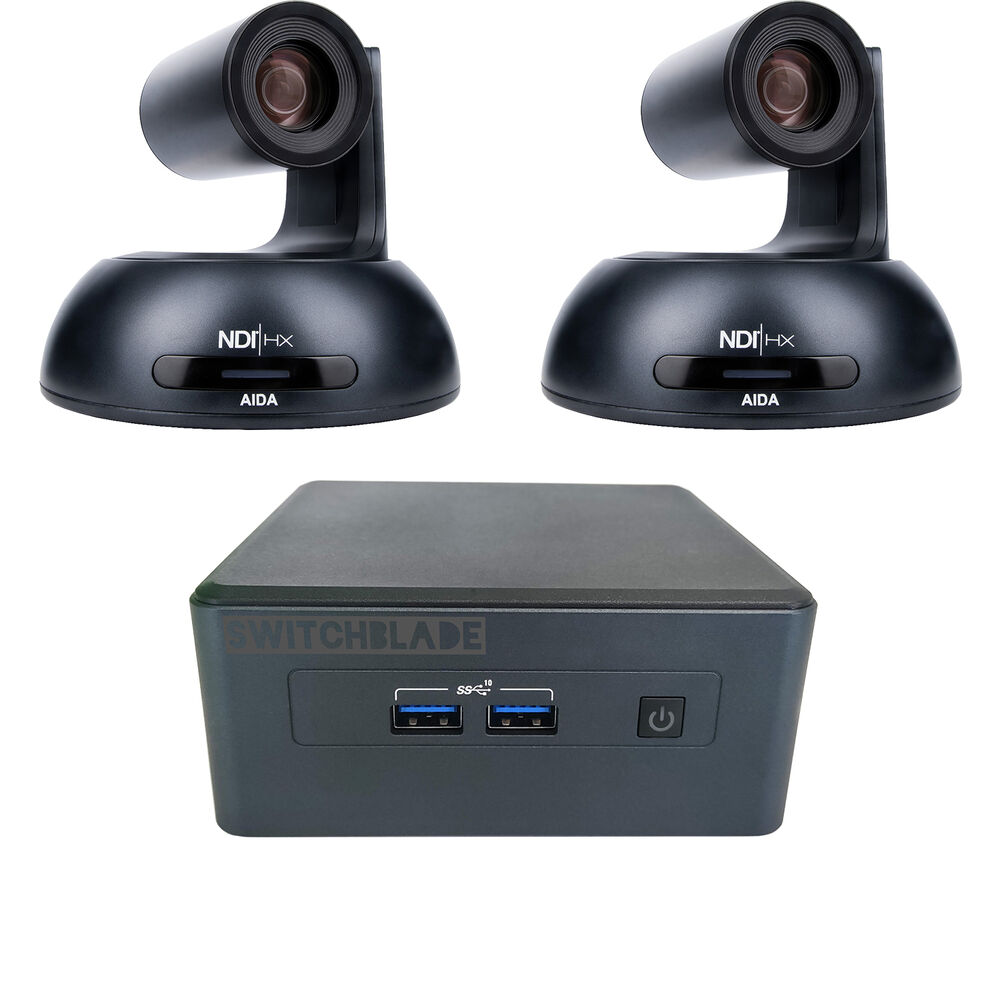

Add a remotely controlled camera set to your networked video production with this 2 x HD NDI|HX PTZ 18x Zoom Cameras + Splyce NDI Switcher + vMix 4K Bundle from AIDA Imaging. The bundle includes two black PTZ-NDI-X18B cameras, a Switchblade Systems Splyce NDI production switcher, and a vMix 4K live video production software license.

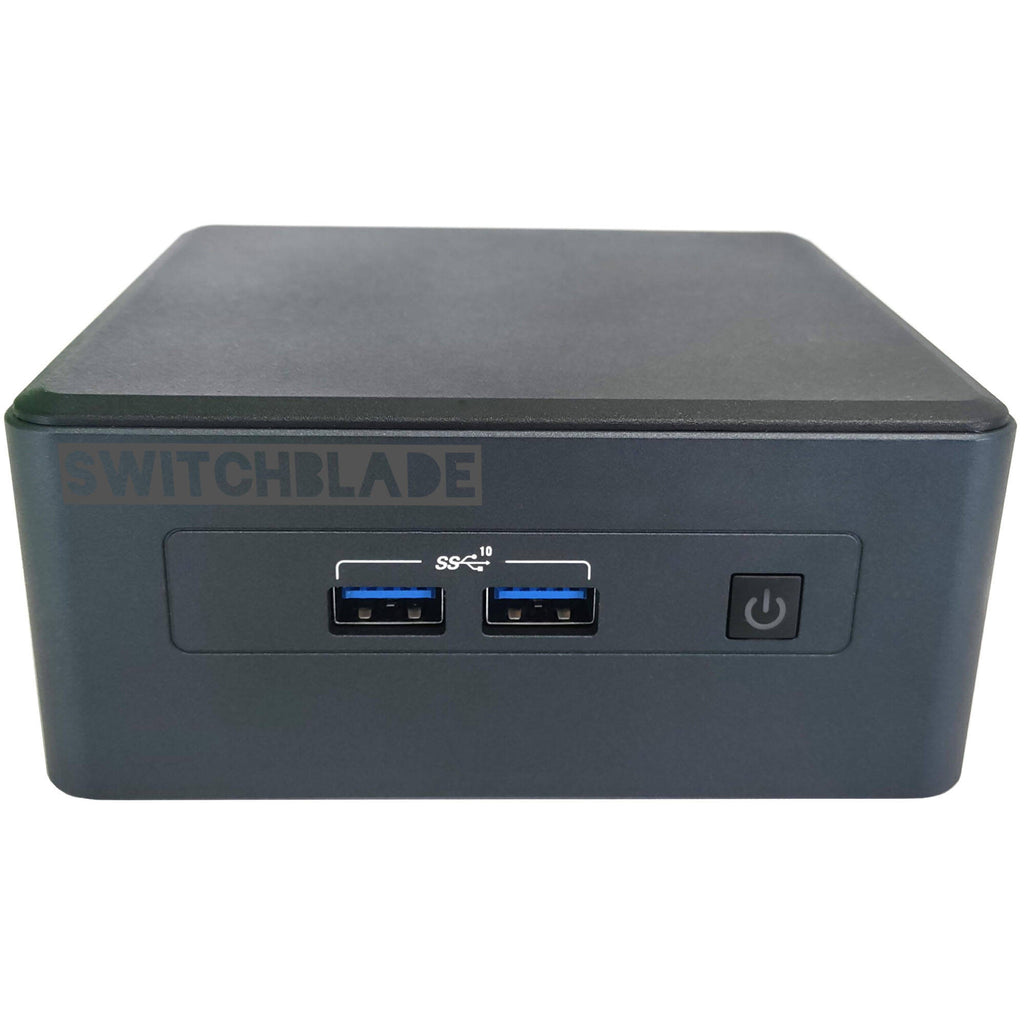

Each camera features 18x optical zoom, up to 1080p60 video capture, and simultaneous video output via IP, HDMI, and NDI|HX. They support IR remote control, 128 presets, RS-232 serial control, streaming video, and they can drop right into an existing NDI network. The Splyce NDI switcher provides a hardware switcher device that routes NDI signals from any NDI or NDI|HX source to any NDI destination. The unit includes upgraded vMix 4K software that allows you to mix, control, switch, and stream your production without any external controllers.

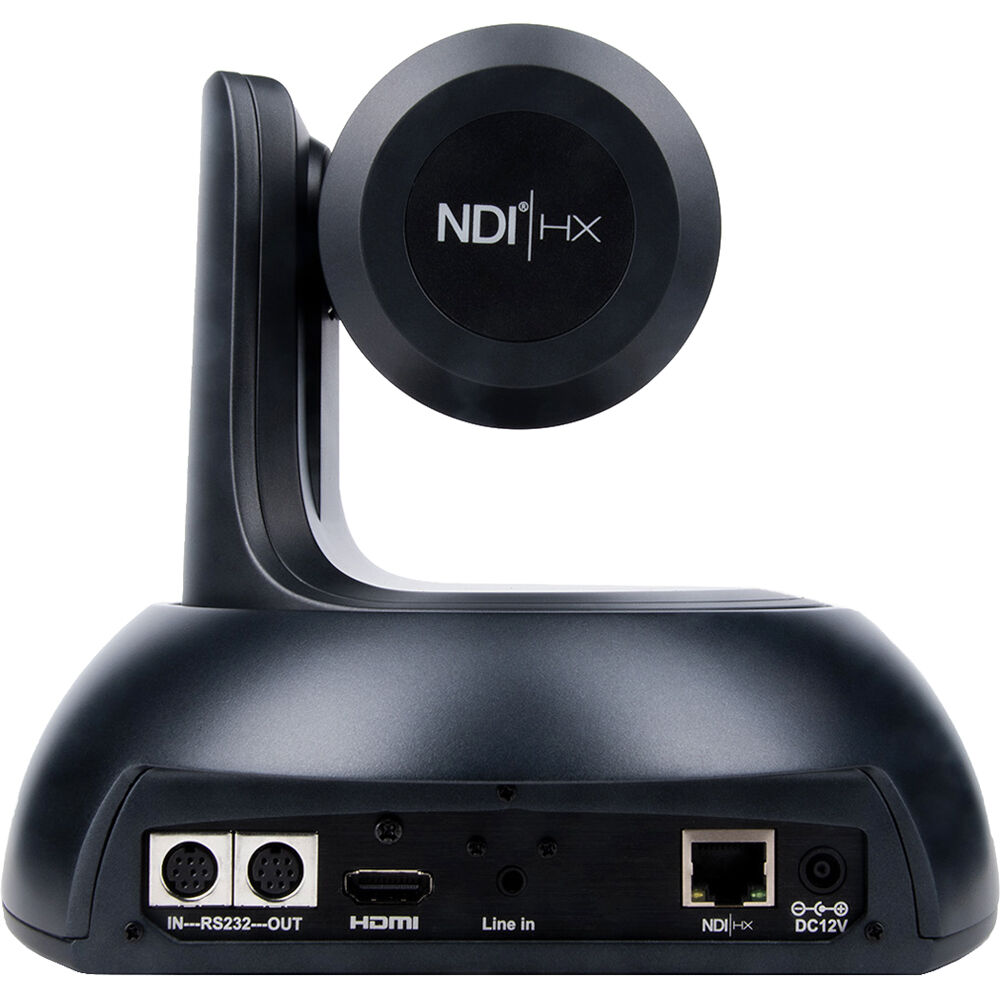

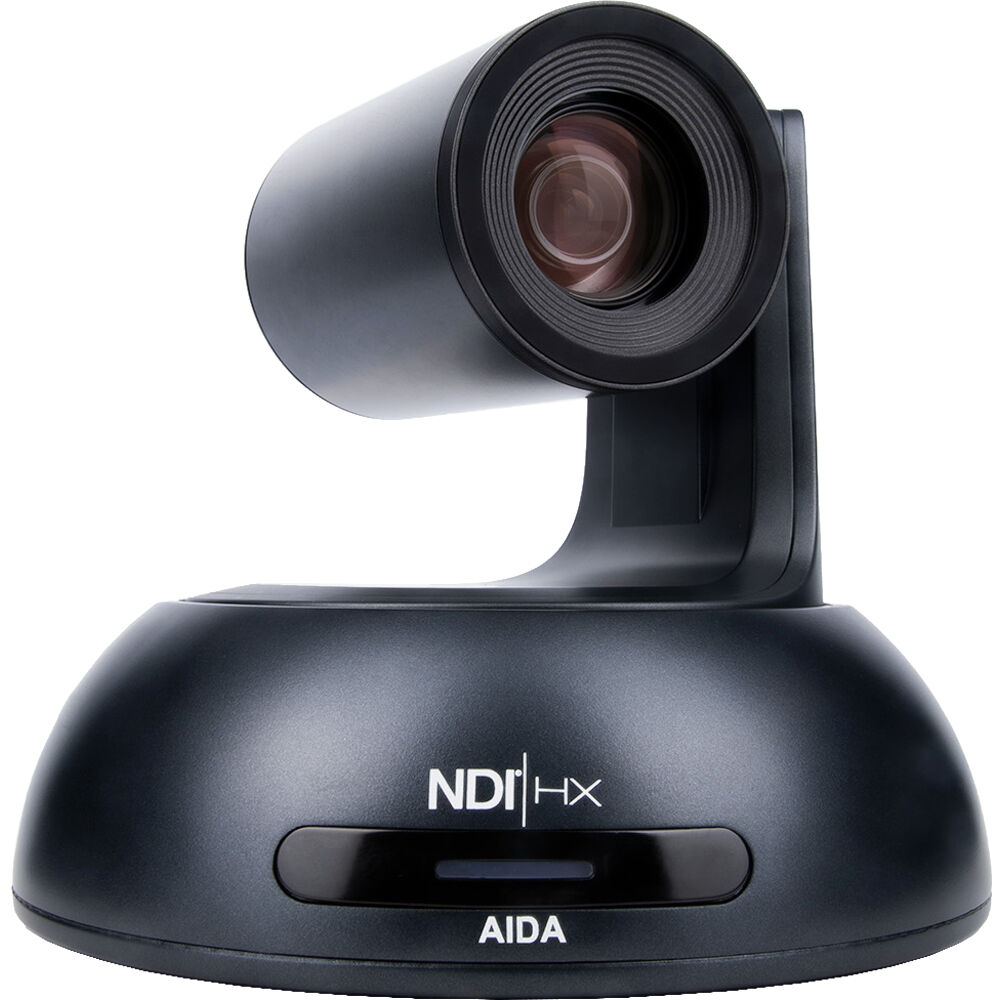

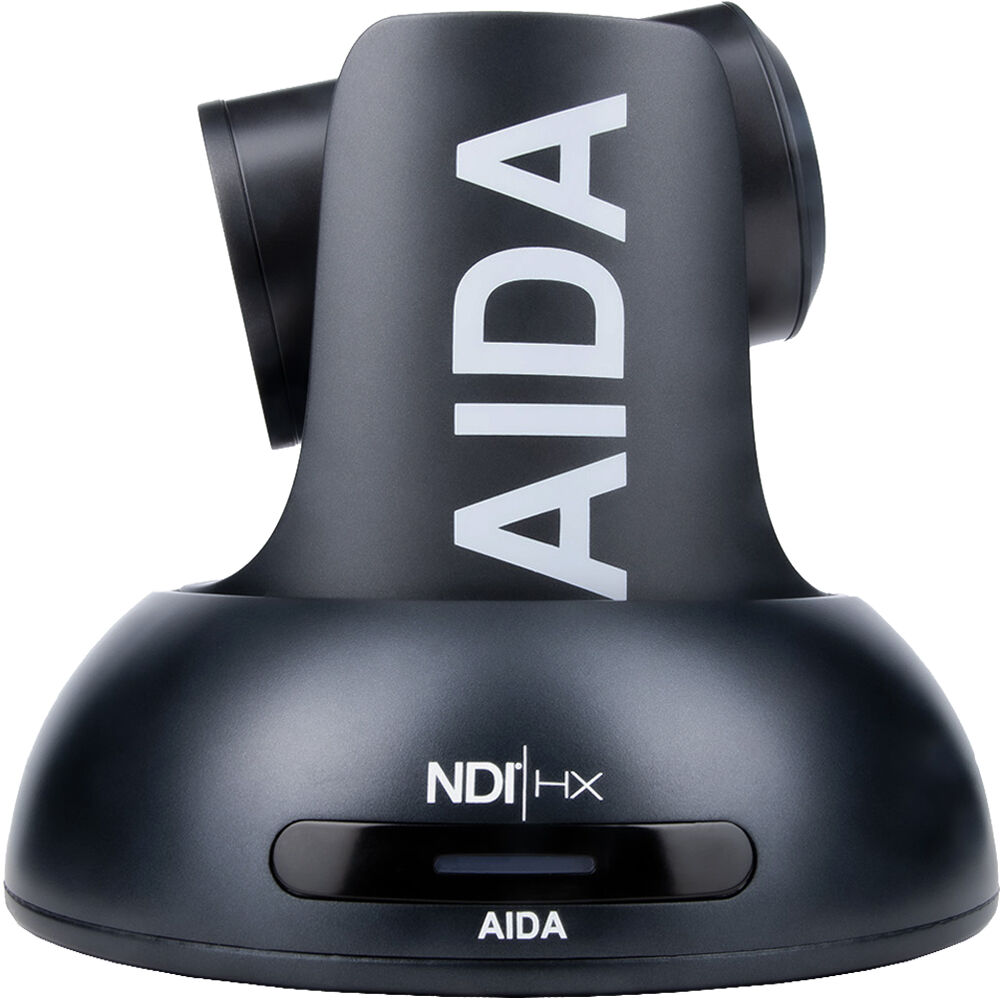

Read more below about the items in this kit.Incorporate this black Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom from AIDA Imaging into your live-streaming environment for simultaneous HDMI, IP, and NDI|HX streaming with a single device. A 1/3" CMOS sensor captures up to 1080p video at 60 fps with vivid color in different light conditions. An RS-232 input and output support serial, VISCA, and VISCA over IP control while streaming video via RTSP and RTMP protocols.
10 preset positions can be assigned and managed with the included remote, and 128 preset positions can be managed with serial control. Other settings like pan, tilt, and the 18x optical zoom can also be adjusted with low latency for smooth, silent movement. Motion-compensated noise reduction ensures your image is crisp and without motion blur. A 3.5mm line-in prevents audio/video delay over IP/NDI protocols for improved sync.
- Low-latency streaming and PTZ control
- Sensor captures sharp and vivid color under different light conditions
- Motion-compensated temporal noise reduction filter for motion video without blur
- 3.5mm line in for no audio/video delays over IP/NDI protocols
- Equipped with discreet tally light
- White balance: auto, manual, auto tracking, one push, indoor, outdoor
- Physical remote control with 10 presets
- Control via web UI interface, VISCA, VISCA over IP, and NDI
- Built-in OSD controls for customizable image settings
The multifunction 4K Live Production, Streaming & Mixing Software from vMix can switch between multiple HD or 4K sources�the maximum number depending on the limitations of the computer, its GPU, and the video capture hardware installed. It can stream a live program feed out to the web over RTMP, RTSP, or Flash and can also record locally at up to HD resolution in AVI, MP4, MPEG-2 or WMV. If a video output is available, it can send out a full-quality program feed for local presentation or recording separately.
Capable of more than just basic switching, effects and chroma keying are also built-in. You can add titles, incorporate virtual sets, or apply templates to give productions network-worthy results. An instant replay feature allows you to save notable moments for replay later. Slow motion up to 400% can even be applied. This version of the software also includes the vMix Call feature, which allows you to add up to four remote guests to your production who are connecting with a web browser on Mac or Windows or with iOS or Android devices. vMix Call features include NDI support, return video/audio for each guest up to 1080p, encryption, selectable outputs, and audio mixing.
There is a built-in audio mixer so you won't have to rely on a separate hardware mixer. Audio can be sourced via embedded audio, the capture device's audio inputs, through a separate audio interface, or even be played from a pre-recorded audio file.
vMix Live Production software runs on Windows and works with a variety of video capture and I/O devices, including models from Blackmagic Design, Matrox, AJA, and more.
FireWire (HDV/DV) capture is also supported; however, there will be a significant delay.
Note: Audio Capture support for Skype and other videoconferencing software is available under Windows 7.
- Create a video delay input and assign it to any available camera or output
- Save multiple video clips of notable events for playback at a later time
- Configurable slow-motion playback from 5 to 400%
- Cut
- Fade
- Zoom
- Wipe
- Slide
- Fly
- CrossZoom
- FlyRotate
- Cube
- CubeZoom
- Quickly add up to four remote guests to any production using only a web browser and a webcam
- Supports guests connecting with Google Chrome (version 56 or higher) and Firefox (version 50 or higher) on Windows or Mac, as well as Android and iOS devices (iPhone, iPad) running iOS 11+ using the Safari browser
- Peer-to-peer encryption between each guest and vMix ensures a secure, low-latency connection
- Auto Mix-Minus technology automatically handles the audio mixing for each guest, preventing echo and saving time
- Full-duplex high-quality audio for all guests and return feed
- Built-in return video/audio feed for each guest with configurable quality up to HD 1080p 4 Mb/s
- Select any of the four outputs (only with 4K and Pro versions) as the return video for all guests
- Select Master, Headphones, Bus A, or Bus B as the return audio feed for all guests; all options have built-in Auto Mix-Minus technology
- Dynamic bandwidth estimation automatically adapts the quality of each guests video on the fly to match changing network conditions
- Video and audio for each guest is available over NDI automatically
In the Box
- 2 x AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)
- Remote Control
- Camera Mounting Bracket
- Power Adapter
- Power Cable
- Limited 2-Year Manufacturer Warranty
- vMix 4K Live Production, Streaming & Mixing Software (Download)
- Splyce NDI Switcher
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black) Specs
| Image Sensor |
1/3"-Type CMOS
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
18x
|
| External Recording Modes |
HDMI / RJ45
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
RTMP, RTSP, SRT, UDP
1920 x 1080 1280 x 720 |
| Supported Control Protocols |
NDI
RS-232 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Image Sensor |
1/3"-Type CMOS
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Precise Scan Rate Control |
No
|
| Minimum Illumination |
0.1 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
| Focal Length |
5.2 to 93mm
|
| Optical Zoom Ratio |
18x
|
| Field of View |
60 to 4°
|
| Maximum Aperture |
f/1.5 to 3
|
| External Recording Modes |
HDMI / RJ45
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Audio Recording |
|
