Description

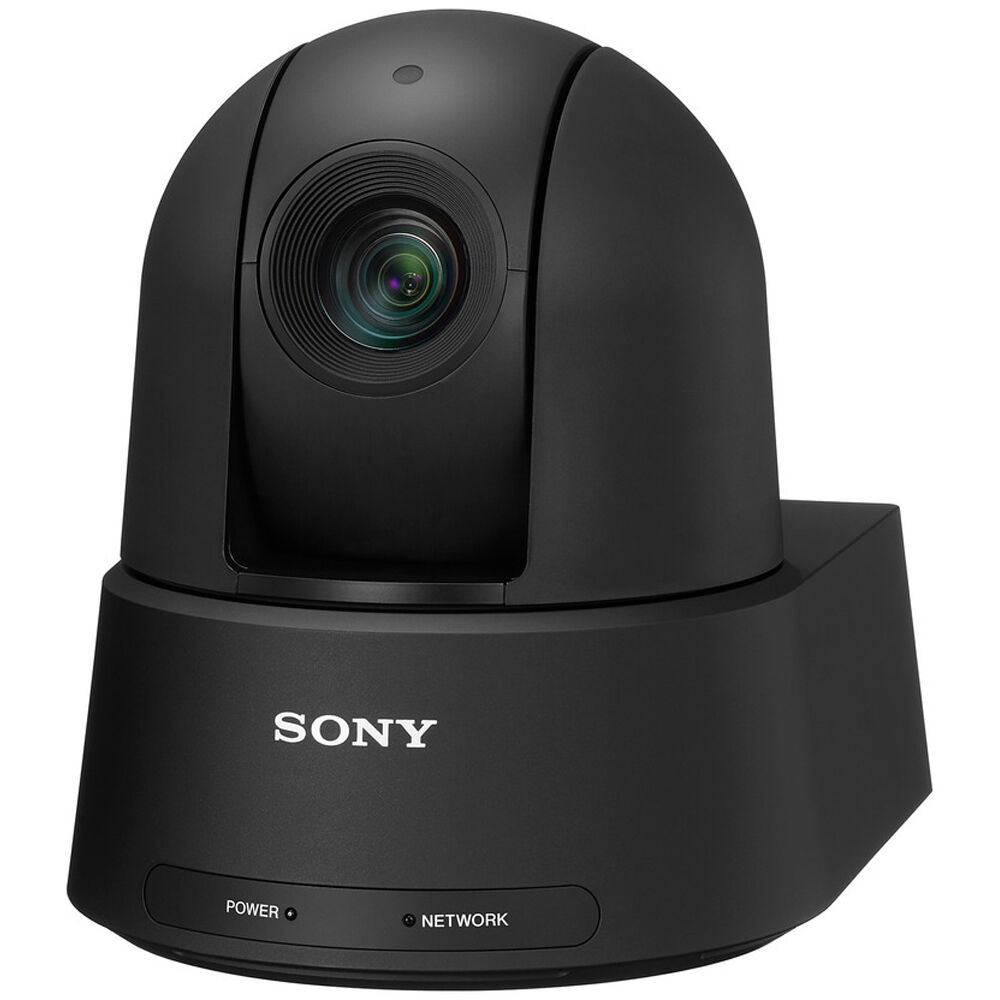

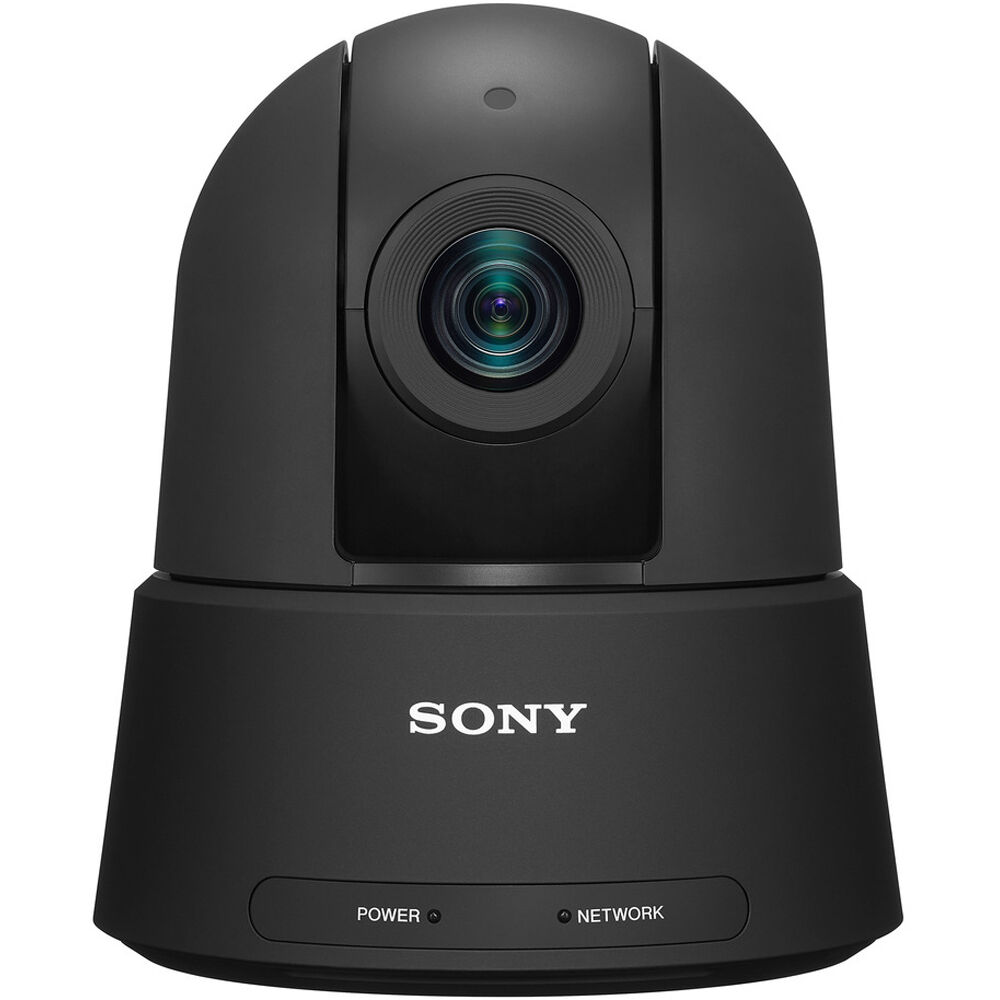

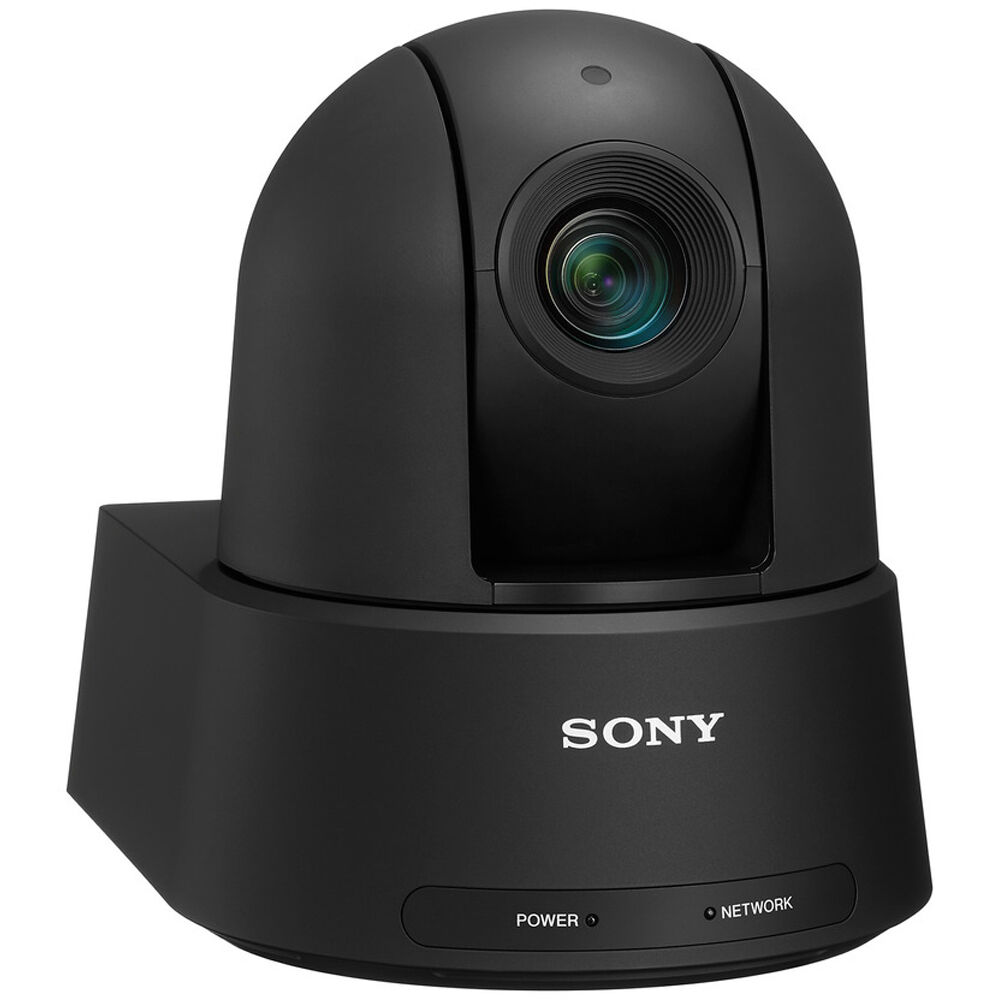

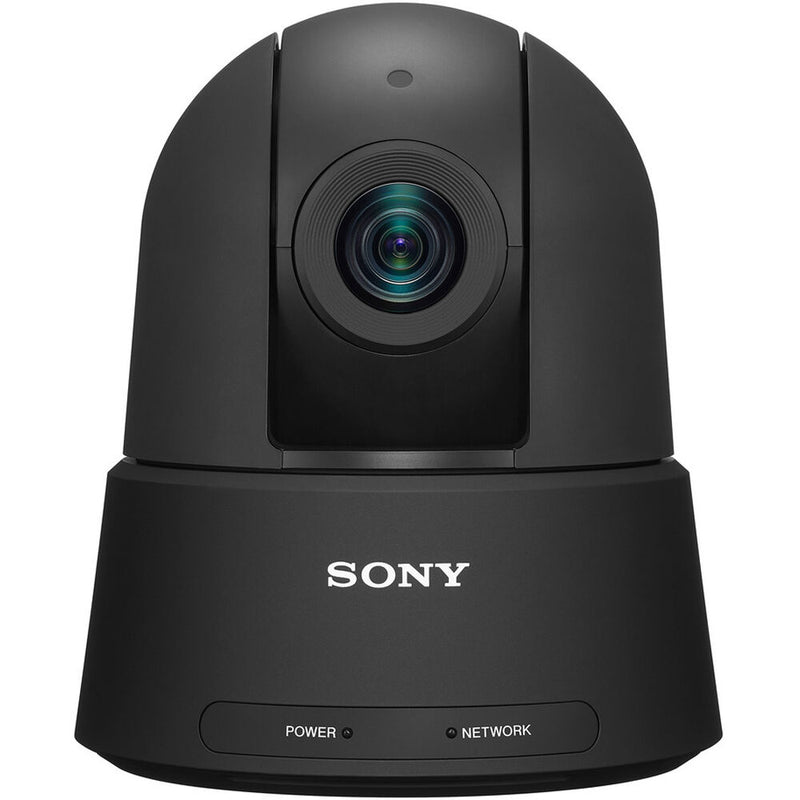

Sony SRG-A12/N Overview
- 1Description
- 2Integrated AI Analytics
- 3IP Streaming with NDI|HX
- 4Three Shooting Modes
- 5High-Speed Pan and Tilt Movements
- 6Built-In Tally Lamp
- 712x Optical Zoom
- 84K Exmor R Sensor
- 9Camera Position and Freeze Presets
- 10Imaging Tools
By Photo's
Mary Latvis
Integrated AI Analytics
- Powerful AI-powered video analytics enable the SRG-A12/N PTZ camera to automatically detect and track the position of a presenter within the frame.
- As the presenter moves, the camera�s pan/tilt/zoom mechanism frames them naturally.
- Eliminates the need for a human camera operator to manually follow their movements.
- Automatically detects and tracks your subject, even when others are present in the same frame.
IP Streaming with NDI|HX
- A license key code for downloading NDI|HX from NewTek is included with the camera.
- NDI|HX support makes the SRG-A12/N a great fit for today�s IP-networked production environments.
- NDI|HX compatibility offers single-cable support for video, control, power, and audio.
- It also supports multiple camera control protocols, multi-stream codecs, and remote viewing from any web browser.
- Integrated video streaming is supported using the popular RTSP and SRT protocols.
Three Shooting Modes
- Choose from three shooting modes to best suit your presentation.
- Modes include Full Body, Waist, and Close Up.
- Each mode offers center, left, and right angles.
High-Speed Pan and Tilt Movements
- Speedy, precise pan and tilt operation ensures that the camera can accurately keep track of the presenter's movements.
Built-In Tally Lamp
- A built-in tally lamp provides a visual indication of the shooting status for your talent and crew.
- The lamp color will change from red (On Air) to green (Auto-Framing On).
12x Optical Zoom
- The SRG-A12/N PTZ camera's 12x optical zoom is supplemented by a 24x Clear Image zoom in HD.
- Clear Image Zoom technology increases the magnification without reducing resolution.
4K Exmor R Sensor
- The highly sensitive 1/2.5-type image sensor captures crisp 4K video images with extremely low noise, even when shooting in low light.
Camera Position and Freeze Presets
- Store and instantly recall up to 256 preset camera positions.
- Output high-quality still images while simultaneously streaming 4K video.
- Pan, tilt, and zoom movements transition smoothly between preset positions.
Imaging Tools
- Autofocus, Auto Exposure, and Auto White Balance ensure professional-looking results without needing manual exposure adjustments.
In the Box
- Sony SRG-A12/N 4K PTZ Camera with NDI|HX, Built-In AI, and 12x Optical Zoom (Black)
- NDI|HX License Key Code
- AC Power Adapter
- IR Remote Commander Unit
- 2 x Ceiling Bracket
- Wire Cable
- 9 x M3x8 Screw
- M2.6x6 Screw (Black)
- HDMI Cable Clamp
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Integrated AI Analytics
- IP Streaming with NDI|HX
- Three Shooting Modes
- High-Speed Pan and Tilt Movements
- Built-In Tally Lamp
- 12x Optical Zoom
- 4K Exmor R Sensor
- Camera Position and Freeze Presets
- Imaging Tools
Sony SRG-A12/N Specs
Key Specs
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 8.5 Megapixel
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
24x ( in 1080p)
|
| External Recording Modes |
4:4:4/4:2:2 8-Bit via HDMI
3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps SDI/BNC / RJ45 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, NDI, NDI|HX, RTP, RTSP, SRT, TCP, UDP
640 x 360 to 3840 x 2160 at 60p (0.5 to 50.00 Mb/s) 1920 x 1080 at 60p (0.5 to 50.00 Mb/s) 1280 x 720 at 60p (0.5 to 50.00 Mb/s) 640 x 360 at 60p (0.5 to 50.00 Mb/s) |
| Supported Control Protocols |
IR
RS-422 VISCA |
| PoE Support |
PoE++ 802.3bt
|
| Mounting |
1x 1/4"-20 Female for Tripod
|
Imaging
| Image Sensor |
1/2.5"-Type CMOS
|
| Horizontal Resolution (TV Lines) |
1700 TV Lines
|
| Sensor Resolution |
Effective: 8.5 Megapixel
|
| IR Cut Filter |
Yes
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Gain |
0 to 48 dB
|
| Minimum Illumination |
1.6 Lux at 1/30 Shutter Speed
|
| Flip / Mirror Support |
Image Flip
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
Lens
| Focal Length |
4.4 to 52.8mm
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
24x ( in 1080p)
|
| Field of View |
Horizontal: 70°
|
| Maximum Aperture |
f/2 to 3.7
|
| Minimum Focus Distance |
Wide: 3.1" / 8.0 cm
Telephoto: 15.7" / 40.0 cm |
Video Capture
| External Recording Modes |
4:4:4/4:2:2 8-Bit via HDMI
3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps SDI/BNC / RJ45 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Audio Recording |
2-Channel AAC LC Audio
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, NDI, NDI|HX, RTP, RTSP, SRT, TCP, UDP
640 x 360 to 3840 x 2160 at 60p (0.5 to 50.00 Mb/s) 1920 x 1080 at 60p (0.5 to 50.00 Mb/s) 1280 x 720 at 60p (0.5 to 50.00 Mb/s) 640 x 360 at 60p (0.5 to 50.00 Mb/s) |
| IP Multi-Stream Support |
Simultaneous
H.264, H.265, RTP, RTSP, TCP, UDP: UHD 4K, 1080p, 720p, 360p at 60p |
Control
| Presets |
256 via CGI
100 via VISCA |
| Move Speed |
Pan: 0.5 to 300°/sec
Tilt: 0.5 to 126°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 110° (-20 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IR
RS-422 VISCA |

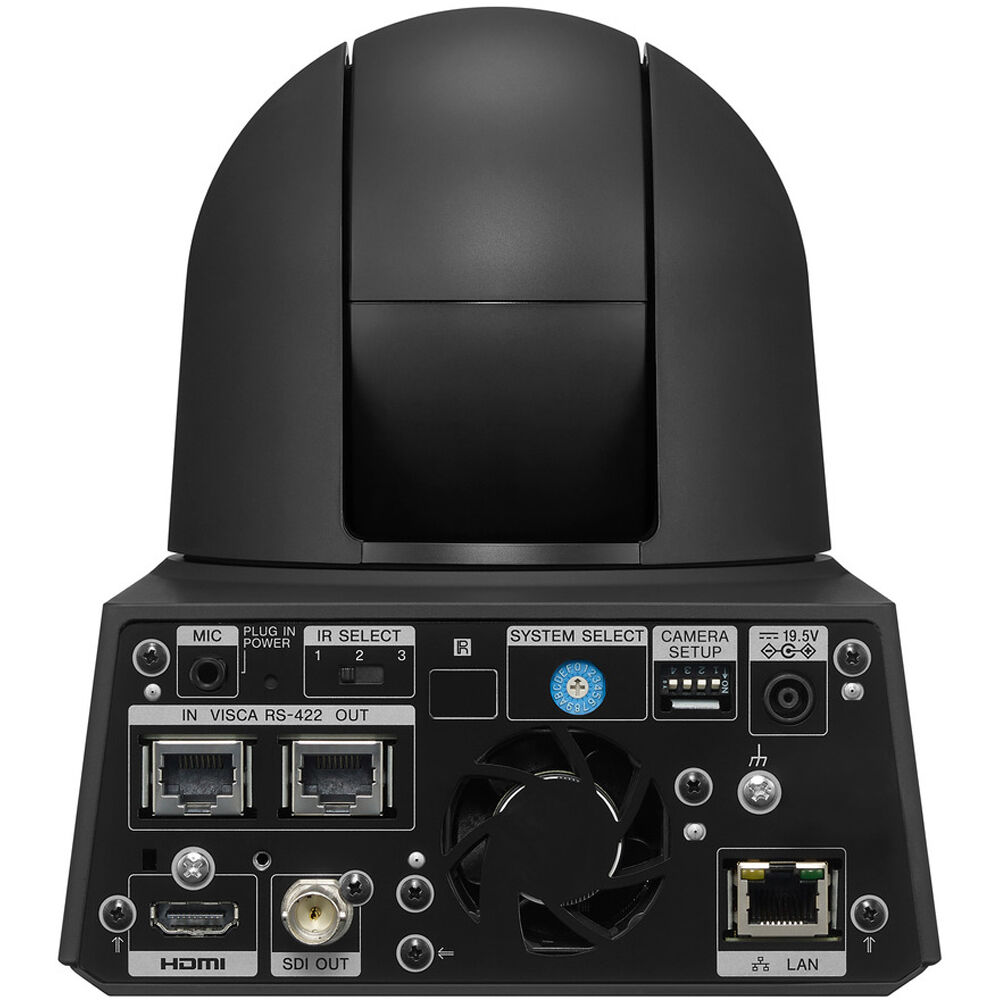

Interface
| Video I/O |
1x HDMI (Unspecified Signal) Output
1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
|
| Other I/O |
1x RJ45 (RS-422, VISCA) Control Input
1x RJ45 (RS-422, VISCA) Control Output 1x RJ45 (LAN) (Shared with Video Output) |
Power
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x Barrel (19.5VDC) Input
|
| Power Consumption |
Device: 80 W
PoE: 71.3 W |
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
General
| Mounting |
1x 1/4"-20 Female for Tripod
|
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
macOS 11 to 12 |
| Sound Level |
NC30 (at Full Speed)
|
| Dimensions (W x H x D) |
6.2 x 7.2 x 7.9" / 156.7 x 184 x 200 mm
|
| Weight |
4.4 lb / 2.0 kg
|
Packaging Info
