Description

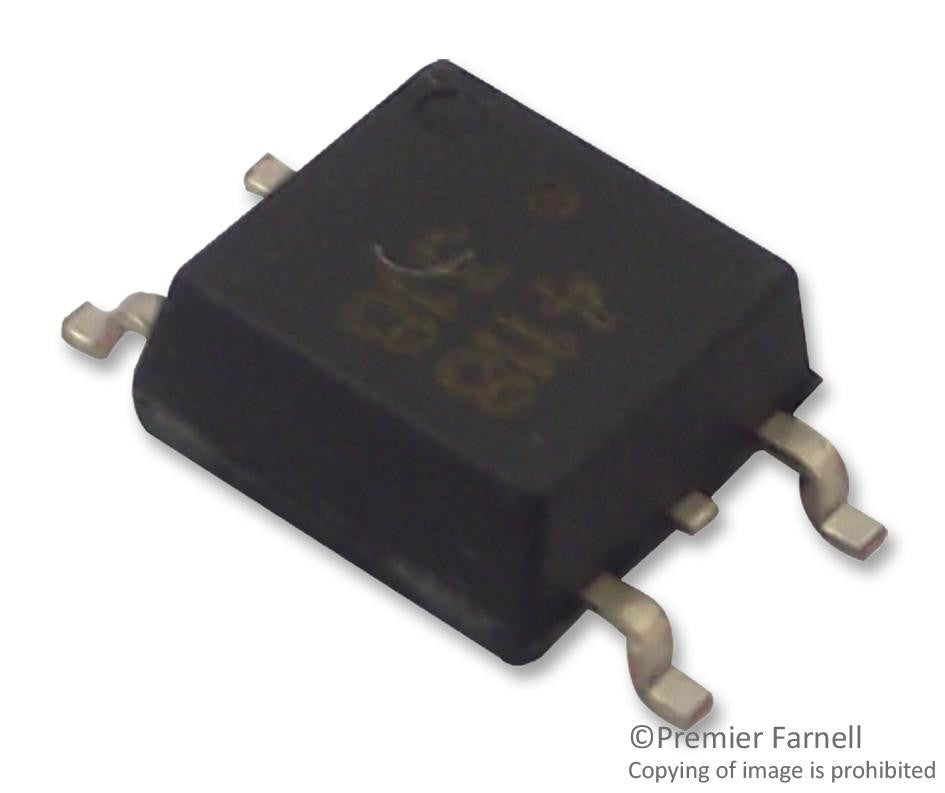

The ASSR-4118-003E is a 1-pole Solid-state Relay, ASSR series, consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs. The relay turns on (contact closes) with a minimum input current of 3mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less. 1 form-A contact configuration.
- Compact solid-state bi-directional signal switch
- Low on resistance
- High input-to-output insulation voltage
- Low input current - CMOS compatibility
Applications
Industrial, Power Management, Automation & Process Control, Communications & Networking, Medical, Security
Product details
| Load Voltage Max | 400V |
| Relay Terminals | SMD |
| Forward Current If | 25mA |
| Load Current | 100mA |
| Contact Configuration | SPST-NO |
| Product Range | - |
| On State Resistance Max | 35ohm |
| Isolation Voltage | 3.75kV |
Other details
| Brand | BROADCOM LIMITED |
| Part Number | ASSR-4118-003E |
| Quantity | Each |
| Technical Data Sheet EN |  |
