Description

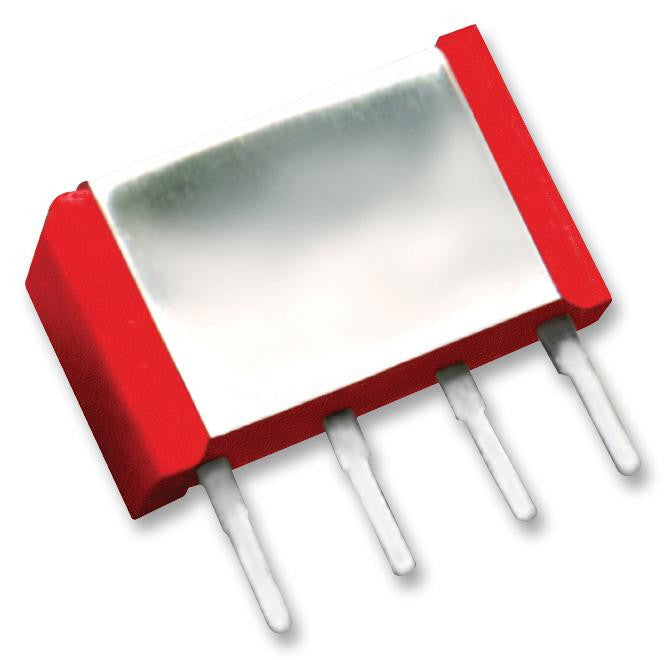

The 9011-05-11 is a Miniature SIP Relay with magnetic shield and diode. This 9011-series relay has coil suppression diode to protect coil drive circuits, compact versions using 65% less board space and used for applications where high board density and long life are key requirements. Moulded thermoset body on integral lead frame design and high reliability, hermetically sealed contacts for long life.
- Magnetic shielding reduces interaction
- High insulation resistance
- High speed switching
- -20 to 85°C Operating temperature range
Applications
Communications & Networking, Test & Measurement
Product details
| Switching Current Max | 250mA |
| Coil Voltage | 5VDC |
| Switching Voltage Max | 100V |
| Coil Resistance | 500ohm |
| Contact Configuration | SPST-NO |
| Product Range | 9011 Series |
| Approvals & Standards | - |
| Relay Mounting | Through Hole |
Other details
| Brand | COTO TECHNOLOGY |
| Part Number | 9011-05-11 |
| Quantity | Each |
| Technical Data Sheet EN |  |
