- For PAL / NTSC Video
- 12 Outputs

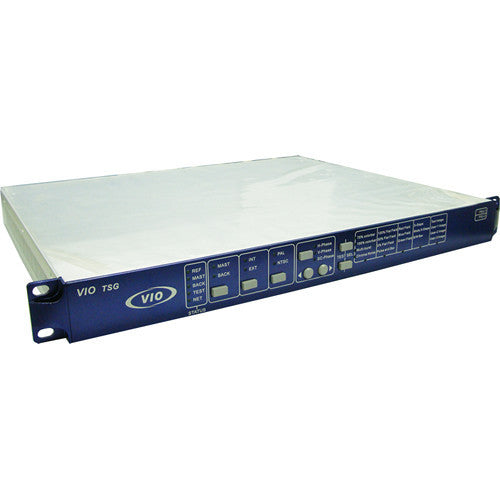

The Gra-Vue VIO TSG-BS Dual Auto Switchable Analog Sync Signal Generator supplies a slave black burst generator module to recognize the changeover between the host and the slave. It supports 12 outputs, an independent host and slave, and 2 loop out interfaces. Users can control it manually or automatically.
The Dual Auto Switchable Analog Sync Signal Generator comes with features such as an external phase lock, H / V adjustment, and P / N system selection. With the internal Web server, you can control various video / audio signal settings through a network interface and upload 3 static images as needed. It runs on dual-redundant power and a full modularization structure.
- Standard 1U chassis
- Change over between host black burst generator and slave
- Supports external phase lock, H / V adjustment, and P / N system selection of BB output
- Internal Web Servers: You can control various A/V signal functions over a network
- 12 output channels of independent black burst output
- Dual-redundant power and full modularization structure
In the Box
Gra-Vue VIO TSG-BS Dual Auto Switchable Analog Sync Signal Generator
| Input |
| Sync Input | 2x REF |
| Input Connector | BNC |
| Amplitude | �40� |
| SNR | 40 dB |
| Return Loss | 40 dB (within 5 MHz) |
| Output |
| Output | BB: 12x BB, 1x Loop |
| Input Connector | BNC |
| Format | NTSC / PAL |
| Return Loss | 30 dB (within 5 MHz) |
| Precision | Color Burst: �5%
Sync: �3% |
| Level | Blanking: �50 mV |
| Phase | SCH: �5� |
| Adjustments | Time: Full color frame |
| Control mode |
| Interface | RJ4510 / 100 / 1000M Ethernet |
| Power | 2x 120 W, 100 to 256 VAC, & 50 to 60 Hz |
| Dimensions | 17.32 x 19.01 x 1.77" (440.00 � 483.00 � 45.00 mm) |
| Packaging Info |
| Package Weight | 17.64 lb |
| Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
