Description

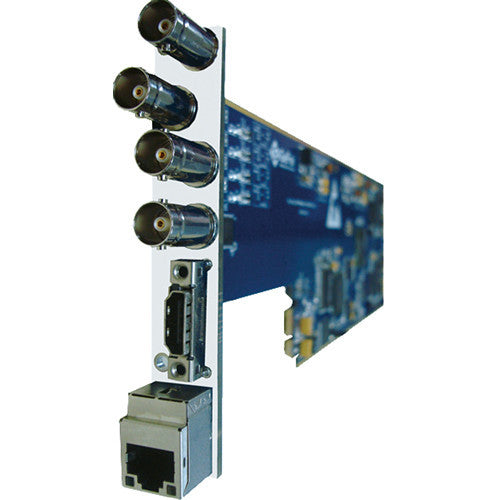

The Gra-Vue XIO 9900MVS-OUT Output Card of Multi-viewer System is based on the XIO series processing platform. It provides 4 HD/SD-SDI input signals, and auto detection of input format. It can output 1 HDMI output signal with an output resolution of up to 1920 x 1200, which provides high-definition and fluent image. With a built-in Web server, display elements can be conveniently and rapidly configured on the web page via the RJ-45 interface.
The output card features signal routing. When there are more than 2 output cards (including 2 cards) inside the XIO frame, all the HDMI outputs share the entire signal source, and any signal can be routed to display on any output freely.
- Supports input format of 525i 59.94, 625i 50, 720p, 1080i, and 1080p, and auto detection of input format
- Supports HD/SD-SDI signal with non-embedded or embedded audio signal
- Outputs 1 HDMI signal with output resolution up to 1920 x 1200
- Adopts HDMI interface with fixed socket to avoid the HDMI cable falling off from the board
- Embeds audio into HDMI signal and the audio source can be selected via the Web server
- Flexible output options with 4:3, 16:9, customized aspect ratio
- Supports display of input format and AFD information
- Editable dual program UMD and 4-channel audio meters display
- Signal can be routed to flexibly and conveniently display on any output by configuration on the Web server
- Video/audio auto detection and alarm, such as video loss, video freeze, video black, audio silence, audio overload with high rate of accuracy
- Selectable air timer and countdown timers, analog and digital clocks types
- Supports customized layout to preset various layouts for different applications, such as studio, OB van, production room and so on
- Limited 1-Year Warranty
| Video Input | |
|---|---|
| Interface | 4 x HD/SD, BNC |
| HD-SDI Input | Impedance: 75 ? HD: SMPTE 292M;1.485,1.485/1.001 Gb/s, SMPTE-425;2.970 Gb/s; 720p 50/59.94/60; 1080i 50/59.94/60; 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60 Return Loss: >15 dB,5 MHz to 1.5 GHz |
| SD-SDI Input | Impedance: 75 ? Signal type: SMPTE295M; 576i 50, 480i 59.94 Return Loss: >15 dB to 270 MHz Signal Level: 800 mV �10% Overshoot: < 80 mV Jitter: <740 ps Rising and Falling Time: <1500 ps Rising and Falling Time Different: <500 ps DC Level: 0 V�500 mV |
| Digital Video Output | |
|---|---|
| HDMI Output | Interface: 1 x HDMI, type A Output resolutions: 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 1024, 1360 x 768, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200 Frequency: 50/60 Hz |
| Controls | |
|---|---|
| Interface | 1 x RJ-45 |
| Type | 10/100/1000M auto-adapting (Support tally via RJ-45 interface) |
| Packaging Info | |
|---|---|
| Package Weight | 4.0 lb |
| Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
